IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
E.
Base
1 pc.
Hardware List
Caster
2 Locking
2 Non-Locking
4 pcs.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05186 0001

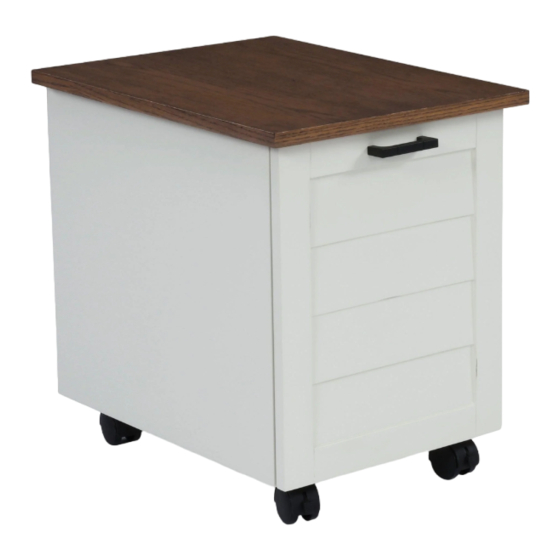

File Cart
B.
Side Panel
1 pc.
F.
Panel
1 pc.
M3x14
Wood Screw (short)
16 pcs. (+1 extra)
M3x38
Wood Screw
2 pcs. (+1 extra)
C.
Side Panel
1 pc.
G.
Drawer
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
Cam Lock Screw
12 pcs. (+1 extra)
Cam Lock
12 pcs. (+2 extra)
888-680-7460, 877-831-0319
D.
Back Panel
1 pc.
H.
Metal Strip
2 pcs.
M4x22
Machine Screw
2 pcs.
Handle
1 pc.
Advertisement
Table of Contents
Related Manuals for Homestyles 20 05186 0001
Summary of Contents for Homestyles 20 05186 0001
- Page 1 12 pcs. (+1 extra) 2 pcs. Caster 2 Locking M3x38 Wood Screw 2 Non-Locking Cam Lock Handle 4 pcs. 2 pcs. (+1 extra) 12 pcs. (+2 extra) 1 pc. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Figure 1 Cam Lock Screw STEP 1 Insert Cam Lock Screws into pre-drilled holes in Top (A), Side Panels (B), (C) and Back Panel (D),...
- Page 3 Assembly Instructions 3/5 Figure 3 Cam Lock STEP 3 Attach Base (E) to Back Panel (D) with Cam Lock. (See Figure 3) Attach Side Panels (B) and (C) to unit with Cam Locks. Wood Screw Figure 4 STEP 4 Turn unit to its upright position. Attach Panel (F) to unit with Wood Screws.
- Page 4 Assembly Instructions 4/5 Drawer (G) STEP 5 Attach Drawer Sides (G3) and (G4) to Drawer Back (G2), then flip Locks. (See Figures 5 and 6) Lock Figure 5 Figure 6 STEP 6 Slide Drawer Bottom (G5) into groove. Attach Drawer Front (G1) to unit, then flip Locks. Machine Screw Lock STEP 7...
- Page 5 Assembly Instructions 5/5 STEP 8 Place Metal Strips (H) into position. Metal Strips (H) can be adjusted for letter or legal files. Left Side Cam Lock Figure 7 Right Side Figure 8 STEP 9 Attach Top (A) to unit with Cam Locks. Slide Drawer (G) into position.
- Page 6 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
