IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

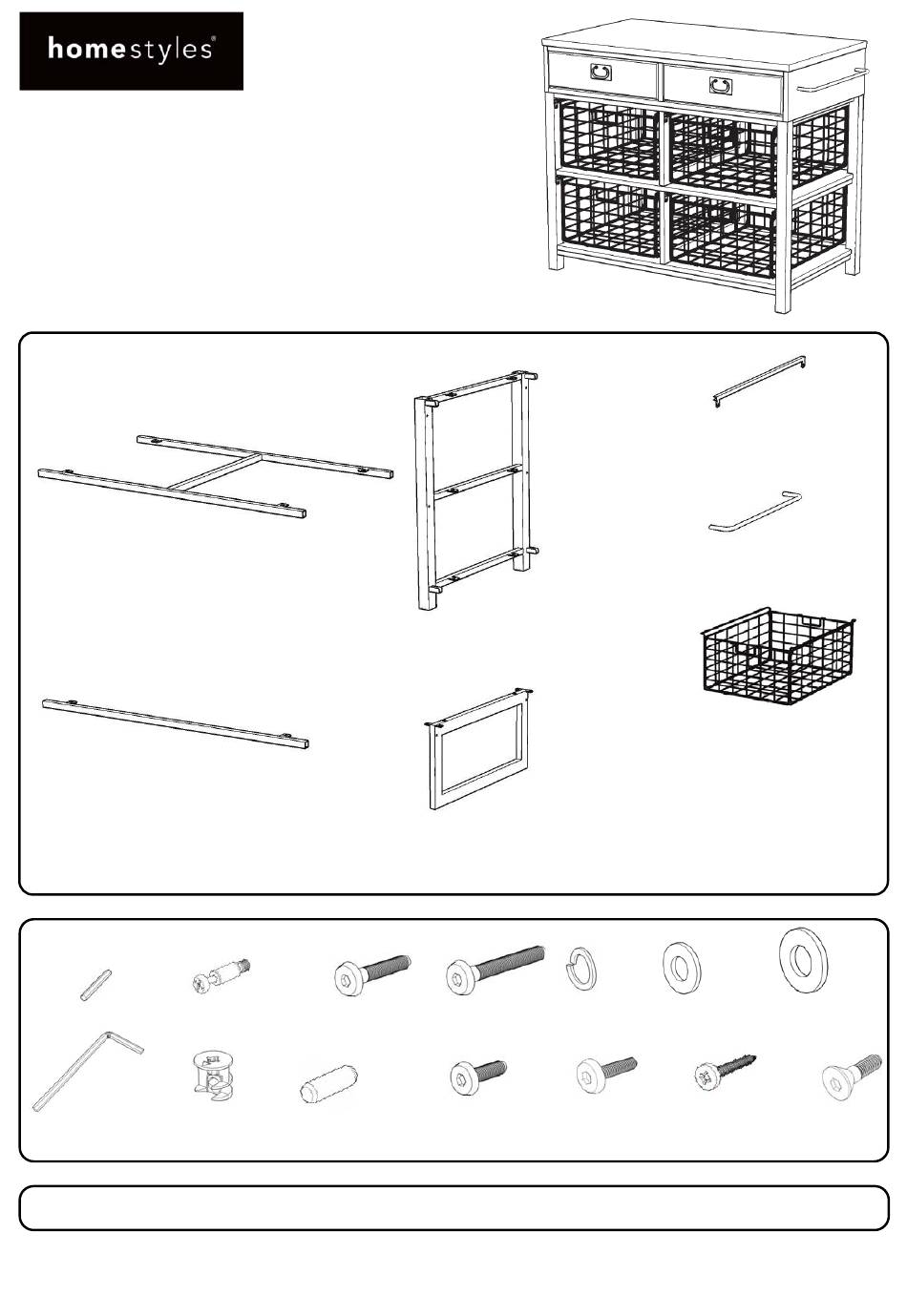

Part List
I.
Frame
1 pc.
L.
Rail
2 pcs.
Hardware List
Small Hex Wrench
Cam Lock Screw
1 pc.
10 pcs. (+1 extra)
Hex Wrench
Cam Lock
1 pc.
10 pcs. (+2 extra)
Carton 20 05050 0942 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05050 0941
Kitchen Island
M6x50
M6x76
Divider Bolt
Divider Bolt (long)
2 pcs. (+1 extra)
2 pcs. (+1 extra)
M6x16
Head Cap Bolt (short)
Dowel
36 pcs. (+1 extra)
18 pcs. (+1 extra)
J.
Side Frame
2 pcs.
M.
Divider
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
Spring Washer
Flat Washer
58 pcs. (+1 extra)
38 pcs. (+1 extra)
M6x25
M3x25
Head Cap Bolt
Wood Screw
18 pcs. (+1 extra)
18 pcs. (+1 extra)
888-680-7460, 877-831-0319
K.
Runner
8 pcs.
H.
Side Bar
2 pcs.
O.
Basket
4 pcs.
Flat Washer (large)
20 pcs. (+1 extra)
M6x13
Tapered Bolt
56 pcs. (+1 extra)
Advertisement
Related Manuals for Homestyles 20 05050 0941
Summary of Contents for Homestyles 20 05050 0941
- Page 1 18 pcs. (+1 extra) 18 pcs. (+1 extra) 56 pcs. (+1 extra) 18 pcs. (+1 extra) Carton 20 05050 0942 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/9 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/9 Flat Washer Spring Washer Head Cap Bolt (short) Head Cap Bolt (short) Spring Washer Divider Bolt Flat Washer (large) Spring Washer Flat Washer Head Cap Bolt Spring Washer Flat Washer Tapered Bolt Flat Washer Spring Washer Divider Bolt (long) STEP 2 Attach Shelf (F) to unit with Head Cap Bolts, Spring Washers and Flat Washers (large), tightening bolts only halfway.
- Page 4 Assembly Instructions 4/9 Cam Lock Screw Flat Washer Spring Washer Head Cap Bolt STEP 3 Insert Cam Lock Screws into pre-drilled holes in Side Panels (B). (See Figure 3) Attach Side Bars (H) to Side Panels (B) with Head Cap Bolts, Spring Washers and Flat Washers.
- Page 5 Assembly Instructions 5/9 Cam Lock Dowel STEP 5 Insert Dowels into pre-drilled holes in unit and Rails (E). Attach Rails (E) to unit with Cam Locks. Wood Screw Cam Lock Dowel STEP 6 Attach Side Panel (B) to unit with Dowels and Cam Locks. Insert Wood Screws into pre-drilled holes, then tighten.
- Page 6 Assembly Instructions 6/9 Head Cap Bolt Spring Washer Flat Washer STEP 7 Place Top (A) upside down on a soft cloth. Attach unit to Top (A) with Dowels, Head Cap Bolts, Spring Washers and Flat Washers. Dowel STEP 8 Turn unit from Step 2 to its upright position.
- Page 7 Assembly Instructions 7/9 Drawer (N) Wood Screw STEP 9 Attach Drawer Sides (N2) to Drawer Front (N1) with Wood Screws. Wood Screw STEP 10 Slide Drawer Bottom (N3) into groove. Attach Drawer Front (N1) to unit with Wood Screws. Part List Drawer Front Drawer Side Drawer Bottom...
- Page 8 Assembly Instructions 8/9 Basket (O) Tapered Bolt Clip STEP 11 Figure 5 Attach Basket Side (O2) to Basket Unit (O1) with clips and Tapered Bolts. (See Figures 5 and 6) Figure 6 STEP 12 Clip Tapered Bolt Attach Basket Side (O2) to unit with clips and Tapered Bolts.
- Page 9 Assembly Instructions 9/9 Figure 7 Tapered Bolt STEP 13 Attach Runners (K) to unit with Tapered Bolts. (See Figure 7) STEP 14 Slide Drawers (N) and Baskets (O) into position. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 8) Figure 8...
- Page 10 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
