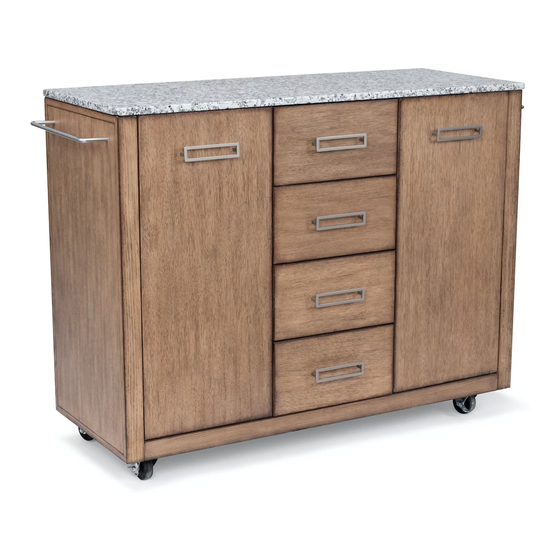

Homestyles 20 05506 0095 Quick Start Manual

Kitchen cart
Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Base
1 pc.
B.
Front Rail
1 pc.
C.
Back Rail
1 pc.
D.
Back Rail
1 pc.
E.
Shelf
4 pcs.
20 09100 Top carton is also need for assembly.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05506 0095
Kitchen Cart
G.
Side Panel
1 pc.
K.
Back Upright
1 pc.
F.
P.
Support
Drawer
2 pcs.
1 pc.
Refer to later page(s) of these instructions for drawer assembly.
H.
I.
Middle Panel
Middle Panel
1 pc.
1 pc.
L.
M.
Back Upright
Back Panel
1 pc.
3 pcs.
Q.
Drawer
3 pcs.
888-680-7460, 877-831-0319
J.
Side Panel
1 pc.
N.
O.
Door
Door
1 pc.
1 pc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 05506 0095 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestyles 20 05506 0095

Summary of Contents for Homestyles 20 05506 0095

  • Page 1 4 pcs. 2 pcs. 1 pc. 3 pcs. Refer to later page(s) of these instructions for drawer assembly. 20 09100 Top carton is also need for assembly. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...

  • Page 2: Hardware List

    Assembly Instructions 2/10 Hardware List Non-Locking Caster Hex Wrench Small Hex Wrench Locking Caster 1 pc. 1 pc. 2 pcs. 2 pcs. Cam Lock Flat Washer Spring Washer Cam Lock Screw 15 pcs. (+2 extra) 16 pcs. (+1 extra) 16 pcs. (+1 extra) 15 pcs.
  • Page 3 Assembly Instructions 3/10 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
  • Page 4 Assembly Instructions 4/10 STEP 2 Attach Base (A) to Back Rail (D) with Cam Locks. (See Figure 2) Cam Lock Figure 2 Cam Lock STEP 3 Attach Back Uprights (K) and (L) to Back Rail (C). Attach Middle Panels (H) and (I) to unit with Cam Locks.
  • Page 5 Assembly Instructions 5/10 STEP 4 Slide Back Panels (M) into position. Attach unit from Step 2 to unit with Head Cap Bolts. (See Figure 3) Head Cap Bolt Figure 3 Head Cap Bolt Head Cap Bolt (middle) Cam Lock STEP 5 Attach Front Rail (B) to unit with Head Cap Bolts.
  • Page 6 Assembly Instructions 6/10 STEP 6 Cam Lock Attach Side Panels (G) and (J) to unit with Cam Locks and Head Cap Bolts. Head Cap Bolt Towel Bar Head Cap Bolt (short) STEP 7 Attach Towel Bars to unit with Head Cap Bolts (short). Attach Casters to unit with Flat Washers, Spring Washers and Head Cap Bolts (short),...
  • Page 7 Assembly Instructions 7/10 STEP 8 Wood Screw (short) Hinge Attach Hinges to Doors (N) and (O) with Wood Screws (short) into pre-drilled holes, then tighten. (See Figure 5) Figure 5 Wood Screw (short) Handle Hinge Machine Screw STEP 9 Attach Doors (N) and (O) to unit with Wood Screws (short) into pre-drilled holes, then tighten.

  • Page 8: Part List

    Assembly Instructions 8/10 Drawer (P) Wood Screw (long) Bottom STEP 10 Attach Drawer Front (P1) and Drawer Back (P2) to Drawer Side (P3) with Wood Screws (long). Attach Drawer Side (P4) to unit with Wood Screws (long). Roller at back STEP 11 Wood Screw (short) Slide Drawer Bottom (P5) into groove.
  • Page 9 Assembly Instructions 9/10 Drawer (Q) Wood Screw (long) Bottom STEP 13 Attach Drawer Front (Q1) and Drawer Back (P2) to Drawer Side (P3) with Wood Screws (long). Attach Drawer Side (P4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 14 Slide Drawer Bottom (P5) into groove.
  • Page 10 Assembly Instructions 10/10 STEP 16 Attach Top (W) to unit with Head Cap Bolts (middle). Slide Drawers (P) and (Q) into position. Note: Supports (V) from 20 09100 Top carton are not used in this assembly. Head Cap Bolt (middle) STEP 17 If needed, adjust doors up or down by removing the front Wood Screws (short) and loosening slightly the back Wood Screws (short) from side panel, adjusting doors up...
  • Page 11 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
