IMPORTANT
Carefully remove all the parts from the carton and place them
individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools
above 8 volts to assemble and only tighten bolts until snug.
Over tightening can damage the aluminum.

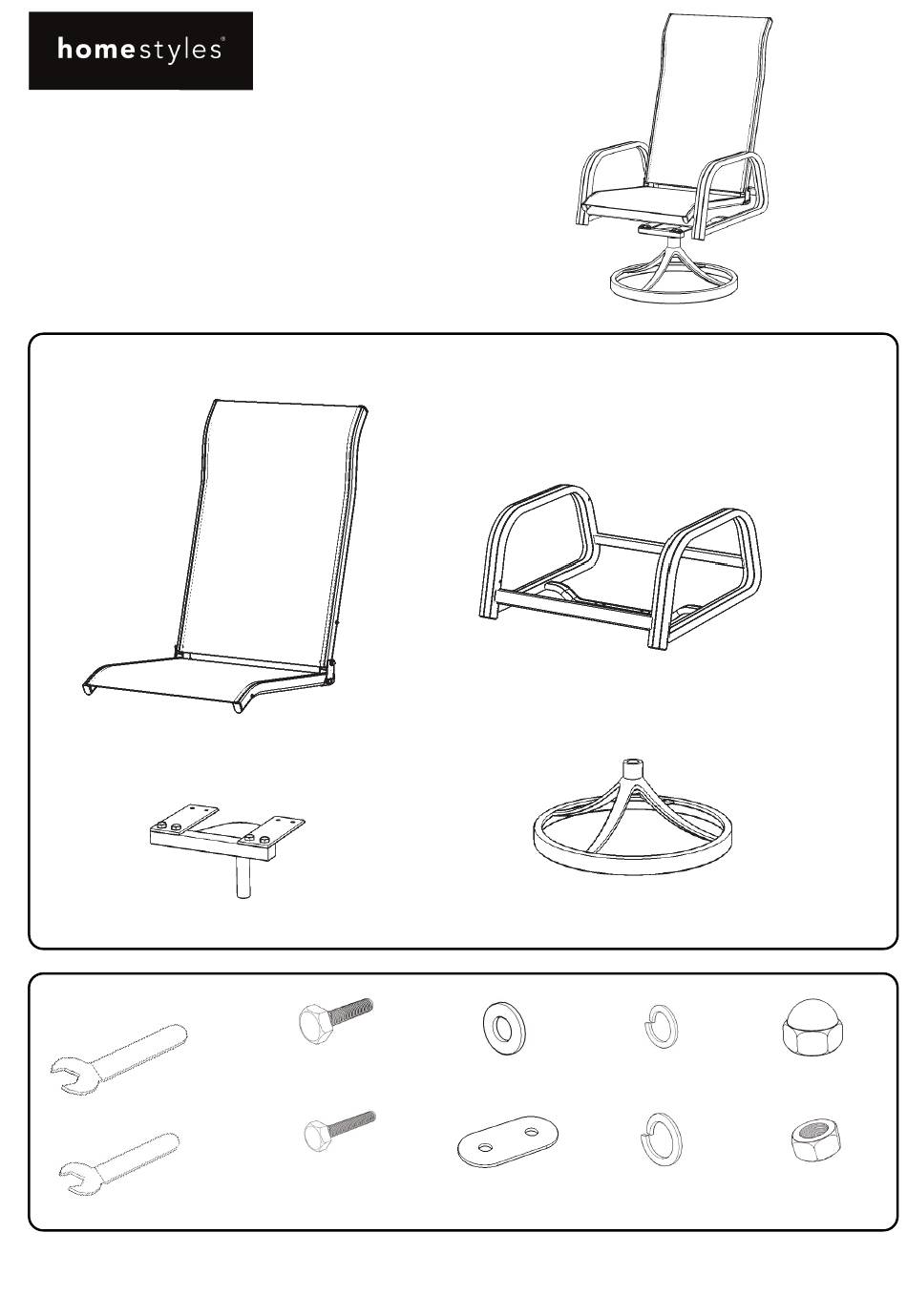

Part List
Hardware List
M8
Wrench
1 pc.
M6
Wrench
1 pc.
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 06700 0055

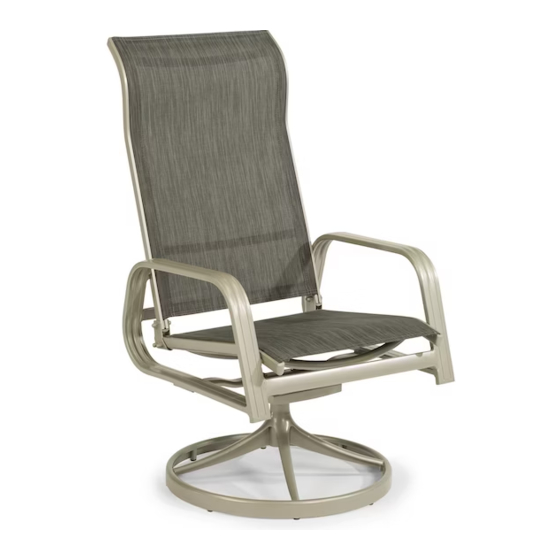

Swivel Chair
A.
Seat
1 pc.
C.
Connector
1 pc.
M8x30
Bolt (large)
4 pcs. (+1 extra)
M6x30
Bolt (small)
4 pcs. (+1 extra)
Round Flat Washer
Spring Washer (small)
4 pcs. (+1 extra)
4 pcs. (+1 extra)
Flat Washer
Spring Washer (large)
4 pcs. (+1 extra)
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
B.
Frame
1 pc.
D.
Base
1 pc.
Cap
8 pcs. (+1 extra)
Nut
4 pcs. (+1 extra)
