Connecting to a TripSaver II Recloser
10 S&C Instruction Sheet 461-503
STEP 4. Connect to Device
(a) To connect to a TripSaver II recloser, select Connection> Connect to
Device from the main menu or click on the Connect to Device icon
the quick access toolbar. Make sure the USB transceiver is already plugged
into the computer.
(b) Next, a Transceiver ID Request dialog box will open. Enter the transceiver
ID of the TripSaver II recloser being connected to, and click on the OK
button to connect. The fi rst 16 digits of the ID are pre-typed, so only the last
16 digits must be typed in. See Figure 10.

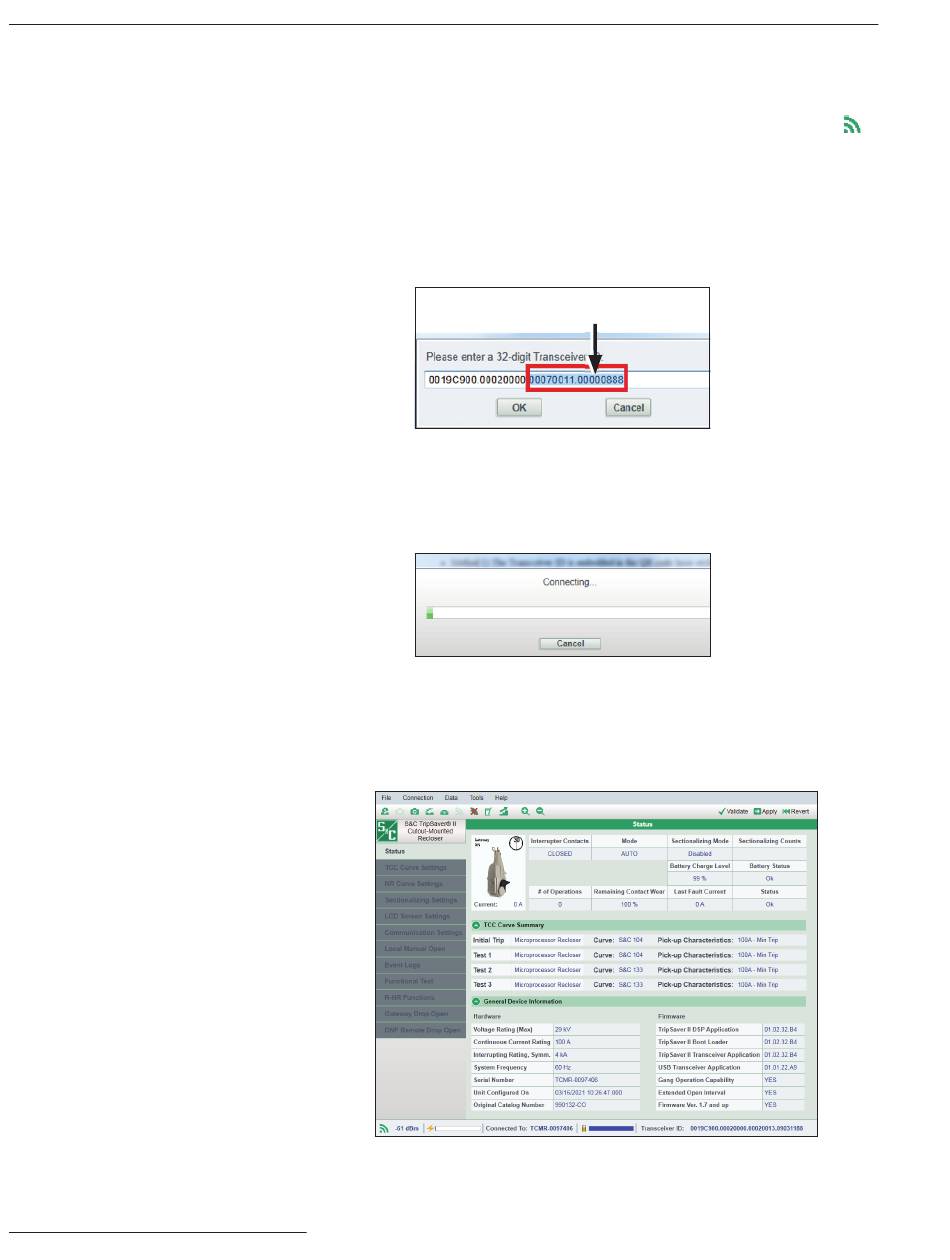

Figure 10. Enter last 16 digits into the
Transceiver ID Request dialog box.
(c) During the connection process, a status bar will be displayed. See Figure
11. Wait about 10 seconds for the connection process to fi nish, or click on
the Cancel button to cancel the connection process.
Figure 11. The Connection status bar.
(d) The Status screen will be visible after the TripSaver II recloser is
successfully connected. See Figure 12. Existing settings, status information,
and event logs of the TripSaver II recloser can now be viewed, or new
settings to the device can be applied.
Figure 12. The Recloser Status screen.
Enter last 16 digits here
in
