Summary of Contents for Lumens PC120
-
Page 1: Document Camera
PC120 Document Camera User Manual [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.lumens.com.tw/goto.htm English - 0... -
Page 2: Table Of Contents
Table of contents Copyright Information ..................4 Chapter 1 Safety Instructions ..............5 Safety Precautions ................ 6 FCC Warning ................. 6 EN55022 (CE Radiation) Warning ..........6 Revisions ......................7 Chapter 2 Package Contents ............... 8 Chapter 3 Product Overview ................ 9 Relative Operation Position ............ - Page 3 6.2.3 Main Function Menu ..............27 6.2.4 Annotation ................... 28 6.2.5 Camera Settings ................29 6.2.6 Options ..................30 6.2.7 Time Lapse .................. 31 Chapter 7 Descriptions of Major Functions – IN Windows ......32 I would like to display a live image ..........32 I would like to optimize the image ..........
- Page 4 8.13 I would like to use the mask mode ..........45 8.14 I would like to use the spotlight mode ......... 45 8.15 I would like to manage saved image files........46 Chapter 9 Connecting to a Microscope ............ 48 Chapter 10 Troubleshooting ..............
-
Page 5: Copyright Information
Copyright Information Copyrights © Lumens Digital Optics Inc. All rights reserved. Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 6: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place Document Camera in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. -
Page 7: Safety Precautions
Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Note Risk of Electric Shock Note: To reduce the risk of electric shock. Do not remove cover (or back). No user-serviceable parts inside. -
Page 8: Revisions
Revisions English - 7... -
Page 9: Chapter 2 Package Contents
Chapter 2 Package Contents PC120 Quick Start Guide 4-Step Card (For download of other language versions, please visit Lumens web site) Download and Safety USB Cable Carry Bag (Optional) Instruction Extension USB Cable Microscope Adapter (Optional) (Optional) English - 8... -
Page 10: Chapter 3 Product Overview

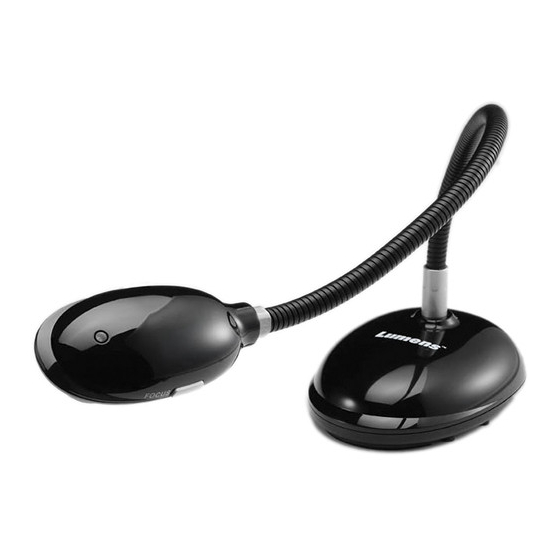

Chapter 3 Product Overview 4. Gooseneck 1. LED indicator 3. AF button 5. Microphone 6. Lamp 2. Lens English - 9... -
Page 11: Relative Operation Position
3.1 Relative Operation Position 3.2 Recommend distance English - 10... -
Page 12: Incorrect Use
3.3 Incorrect Use English - 11... -
Page 13: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System Diagram USB Cable COMPUTER 4.2 Connecting to a computer Shown as the above figure. 4.3 Connecting to an Interactive Whiteboard (IWB) PROJECTOR USB Cable VGA Cable USB Cable COMPUTER English - 12... -
Page 14: Mounting The Pc120
4.4 Mounting the PC120 1. Please purchase the standard VESA installation base. 2. Please use appropriate screws: Screw length = 5 mm + base thickness (H1); M4 screw (P = 0.7) VESA bolt pitch 75*75mm VESA base thickness (H1) ... - Page 15 4.5.2 Install with Windows XP/Vista 1. Please download the Podium View™ software after connected to the Lumens™ web site. 2. Click the EXE file after decompressing the downloaded file. 3. Select Language. 4. The installation wizard will guide you through the process. Please follow the on-screen instructions and click [Next] for the next step.
- Page 16 4. Click [Yes] to create Podium View™ shortcut on your desktop. 5. Please click the [Finish] button then reboot the system. 4.5.3 Install with MAC 1. Please download the Podium View™ software after connected to the Lumens™ web site. 2. Click the [Podium View] file after decompressing the downloaded file. 3.
- Page 17 4. Click [Continue] to continue. English - 16...
- Page 18 5. Click [Install] to continue. 6. Enter your username and password, then click [OK]. 7. Click [Continue Installation] to continue. English - 17...
- Page 19 8. Click [Restart] to finish installing the software. English - 18...
-
Page 20: Chapter 5 Start Using
Chapter 5 Start Using <Note>: Ensure that the USB cable is connected and Podium View™ software is installed at first. Refer to Chapter 4 Installation and Connections in this user manual. USB Cable FOCUS icon to begin Podium View™ Software. 1. -
Page 21: Chapter 6 Function Menu
Chapter 6 Function Menu 6.1 IN WINDOWS 6.1.1 Main Function Menu Power On / Off Lamp On/Off Image Optimization Live Image Preview Set up the recording format BRIGHTNESS Begin the main function menu, and click the right button to display the To adjust the size of image information about the software. -
Page 22: Annotation Tools
6.1.2 Annotation Tools Icon Function Descriptions Pointer tool Laser tool Insert text Draw a line Draw an ellipse Draw a rectangle Free-hand drawing tool Eraser Clear all Select the color Select the line width English - 21... -
Page 23: Camera Settings
6.1.3 Camera Settings Control the live image via the Camera Settings interface. Click to open Camera Settings interface. Auto Focus Automatically adjust focal length on an object. Focus Manually adjust focal length on an object. Auto Exposure Set on/off. Auto White Balance Set on/off. Rotate Rotate the image by 0/180 degree. -
Page 24: Options
6.1.4 Options Click to open Options Menu. 1. Language: Set the language. 2. Factory Reset Activate the factory reset. 3. Video Compress Codec Format Set the video format. <Note> You need to enable the [Enable Video Compress] before setting. 4. Enable Audio Recorder Enable the audio record device and set the audio source. -
Page 25: Time Lapse
6.1.5 Time Lapse Click to open Time Lapse Menu. 1. Select file directory to change the default. 2. Specify a file name. 3. Set the start time. 4. Capture images at a pre-set intervals. English - 24... -
Page 26: In Mac
6.2 IN MAC 6.2.1 Software Screen Introduction 1. Live image 2. Main Menu 3. Thumbnail Window 4. File Management Function Menu English - 25... -
Page 27: Thumbnail
6.2.2 Thumbnail 1. Close/Open Thumbnail 2. Thumbnail image of saved video or captured image (It will be displayed if it’s a video) 3. Save the video which has been edited 4. Save as a new file 5. Change the storage folder 6. -
Page 28: Main Function Menu
6.2.3 Main Function Menu POWER: LAMP: Turn the Document Camera Turn the lamp on/off. on/off. AUTO TUNE: DISPLAY LIVE IMAGES: Automatically adjust the image to have the best brightness and Display live images. focusing performance. OPTIONS: Select video compression BRIGHTNESS: method and the audio source. -
Page 29: Annotation
6.2.4 Annotation Icon Description Click open annotation Pointer tool tools Laser tool Insert text Eraser (Clear marks of free-hand drawing tool) Draw a line Draw an ellipse Draw a rectangle Delete Free-hand drawing tool Back Next Clear all Select pen color Select line thickness Select transparency Select Font... -
Page 30: Camera Settings
6.2.5 Camera Settings Control the live image via the Camera Settings interface. Click to open Camera Settings interface. 1. Auto Focus: Automatically adjust the best focal length. 2. Focus: Manually adjust focal length on an object. 3. Auto Exposure: Set on/off. 4. -
Page 31: Options
6.2.6 Options Click to open Options Menu. 1. Factory Reset: Activate the factory reset. 2. Video Compression Type: Set up the recording format. 3. Enable Audio Recorder: Enable the audio record device and set the audio source. English - 30... -
Page 32: Time Lapse
6.2.7 Time Lapse Click to open Time Lapse Menu 1. Specify a file name. 2. Set the start time. 3. Set the interval and the length of time of image capturing. English - 31... -
Page 33: Chapter 7 Descriptions Of Major Functions - In Windows
Chapter 7 Descriptions of Major Functions – IN Windows 7.1 I would like to display a live image 1. Click to display a live image. 7.2 I would like to optimize the image 1. Click 7.3 I would like to use the auto focus 1. -
Page 34: I Would Like To Record Videos
7.8 I would like to record videos 1. Click to show the advanced menu. 2. Click to begin the recording tool. <Remark>: Click to change settings including recording format and audio. 3. Click [Record] to show the “Save AS” window. 4. -
Page 35: I Would Like To Set Up The Timer
7.9 I would like to set up the timer. 1. Click to show the advanced menu. to show the “Time Lapse” window. 2. Click A. Set up the file directory. B. Set up the file name C. Set up the start time. D. -
Page 36: I Would Like To Annotate The Live Image
7.11 I would like to annotate the live image 1. Click to show annotation tools 2. The default is the arrow tool [Pointer]. You can select the other annotation tool. 3. Select the color of the annotation tool, 4. Set up the line width, 5. -
Page 37: I Would Like To Add Text To The Live Image
7.12 I would like to add text to the live image 1. Click to show annotation tools 2. Select the text tool to show [Text Tool] window. 3. Click to set up font, size, and color. 4. After entering text, click <Remark>: Click to capture the text image. -
Page 38: Working With Other Applications
7.13 Working with Other Applications 7.13.1. I would like to insert a photo in MS-Paint <Remark>: Support Windows XP Operation System only. 1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure. 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. - Page 39 2. Select [USB Video Device #5] and click [Custom Insert]. 3. Click [Get Picture]. It will capture the photo of live image. 7.13.3. I would like to change the setting of the PC120 and then capture a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the function with OneNote.
- Page 40 2. Select [Lumens Document Camera TWAIN] and click [Custom Insert]. 3. A window showing a live image (see below) will be displayed. 4. Click [Setting]. When the Camera Settings window pops up, the live image can be adjusted. 5. Click [Capture] to capture images in MS-Word. 6.
- Page 41 7.13.4. I would like to set the PC120 as a webcam for Skype The PC120 can be used as a webcam for instant message software such as Skype and MSN. With Skype as an example, operating instructions are provided below: 1.
-
Page 42: Chapter 8 Descriptions Of Major Functions - In Mac
Chapter 8 Descriptions of Major Functions – IN MAC I would like to display a live image Click to display the live image. I would like to optimize the image Click I would like to use the auto focus ... -
Page 43: I Would Like To Capture Images
I would like to capture images Click to capture images. [Note] The captured images will be displayed in the Thumbnail area. I would like to capture images continuously Click to open burst mode setting. Click [OK] after setting. <Note>... -
Page 44: I Would Like To Add Textual Annotation To Images
Select pen color. Select line thickness. Select transparency. Mark or annotate the displayed image. <Remark> You can Click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save the files if they are image files opened from the Thumbnail. -
Page 45: I Would Like To Record Videos
Select Select pen color. Select transparency. Select font and font size. Drag a block on the picture then start to enter text. <Remark> You can Click to capture images if they are live images. You can click [SAVE] or [SAVE AS] to save files if they are image files. -
Page 46: I Would Like To Use The Mask Mode
Click to start recording. Press to stop recording. Click to close the recording tool. <Remark> You can use annotation tools when recording, but you can’t save it. 8.13 I would like to use the mask mode Click to open the mask mode. -
Page 47: I Would Like To Manage Saved Image Files
8.15 I would like to manage saved image files. 8.15.1 Save as a new file First, double-click the picture or image file in the “Thumbnail” window on the left side of the screen. , then “Save As” window will pop up. Click [Save as] ... - Page 48 After selecting the location of the folder, click [Choose] to change the folder for saving pictures next time. 8.15.3 Delete File First, double-click the picture in the “Thumbnail” window on the left side of the screen. , then “Delete File” window will pop up. Click Click [Delete] [Yes] to delete files.
-
Page 49: Chapter 9 Connecting To A Microscope
Chapter 9 Connecting to a Microscope 1. Mount the microscope adapter onto the microscope. <Note>: Please choose an appropriate microscope adapter. Microscope adapter accessories are applicable to eyepieces of Ø 28 mm. 2. The lens of PC120 connects with the microscope adapter. 3. -
Page 50: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using PC120. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center. Problems Solutions Boot without power...
