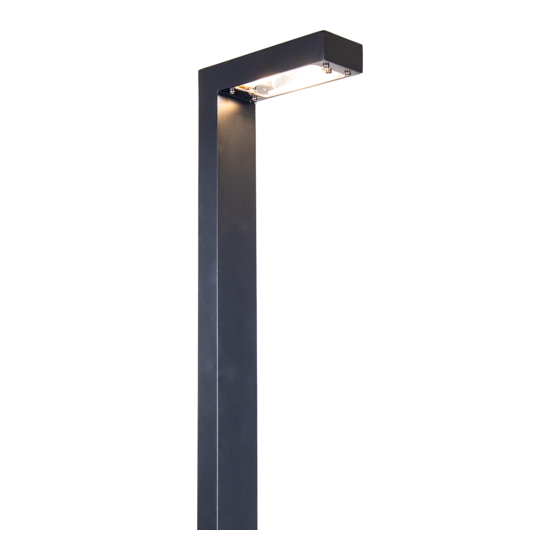

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® Wider NovellePro ® APL-3026-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Wider Novelle Pro ® APL-3026-4-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body B. (1) Stake Parts Required (sold separately) A. (1) G4 Bi-Pin Product Dimensions 2” 6” 1” 22” customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Wider NovellePro ® APL-3026-4-B-BZ Remove Lens Remove the lens from the fixture Fixture by loosening the screws. Lens Screw Install G4 Bulb Insert the Bi-Pin with correct wattage and type marked on Socket fixture label and push into place.
- Page 5 INSTALLATION & MAINTENANCE GUIDE Wider NovellePro ® APL-3026-4-B-BZ Install Lens Place the lens back onto the Fixture fixture and secure with the previously removed screws. Tighten until snug. Lens Screw Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade.
- Page 6 INSTALLATION & MAINTENANCE GUIDE Wider NovellePro ® APL-3026-4-B-BZ Install Fixture to Stake Pass the fixture wire through the center hole of the stake. Thread the fixture on to the stake and hand tighten until snug. Fixture Fixture Wire Wire Connections Supply Wire from Fixture Body Pigtail...
- Page 7 Install/Replace G4 Bulb Please reverse Step 2 - Step 3 to expose the bi-pin and replace it with the correct wattage and type marked on the fixture label. And then reinstall the lens. IMPORTANT: Bi-Pin must be protected from moisture and dust at all times. Always reinstall the lens when removed.
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-APL-3026-4-B-BZ-ver1.pdf...
