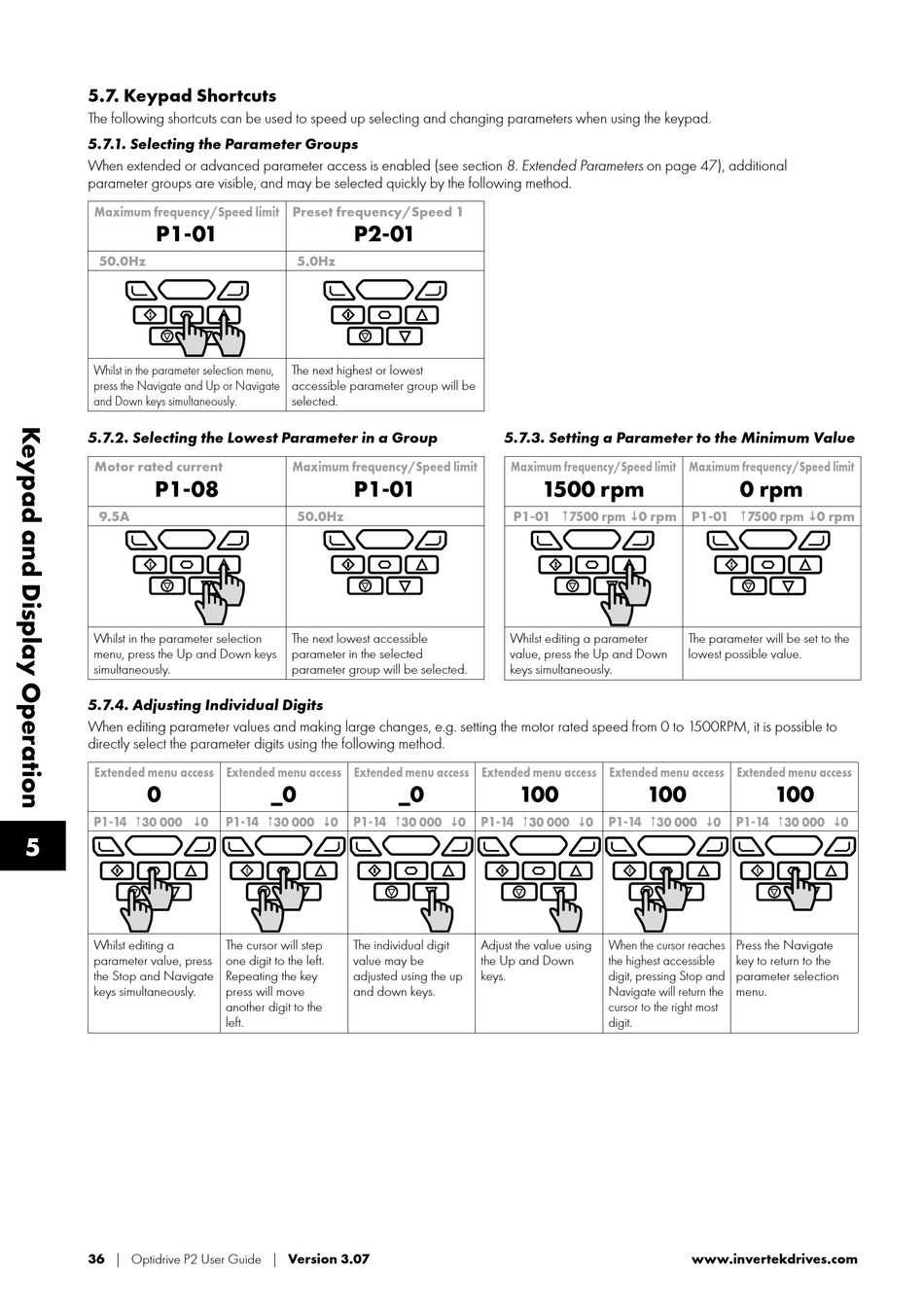

5.7. Keypad Shortcuts
The following shortcuts can be used to speed up selecting and changing parameters when using the keypad.
5.7.1. Selecting the Parameter Groups
When extended or advanced parameter access is enabled (see section 8. Extended Parameters on page 47), additional
parameter groups are visible, and may be selected quickly by the following method.
Maximum frequency/Speed limit Preset frequency/Speed 1
P1-01
50.0Hz
Whilst in the parameter selection menu,
press the Navigate and Up or Navigate
and Down keys simultaneously.
5.7.2. Selecting the Lowest Parameter in a Group
Motor rated current
P1-08
9.5A
Whilst in the parameter selection
menu, press the Up and Down keys
simultaneously.
5.7.4. Adjusting Individual Digits
When editing parameter values and making large changes, e.g. setting the motor rated speed from 0 to 1500RPM, it is possible to
directly select the parameter digits using the following method.
Extended menu access Extended menu access Extended menu access Extended menu access Extended menu access Extended menu access
0
P1-14 30 000 0
5
Whilst editing a
parameter value, press
the Stop and Navigate
keys simultaneously.
36 | Optidrive P2 User Guide | Version 3.07
P2-01
5.0Hz
The next highest or lowest
accessible parameter group will be
selected.
Maximum frequency/Speed limit
P1-01
50.0Hz
The next lowest accessible
parameter in the selected
parameter group will be selected.
_0 _0
P1-14 30 000 0 P1-14 30 000 0
The cursor will step The individual digit
one digit to the left. value may be
Repeating the key adjusted using the up
press will move and down keys.
another digit to the
left.
5.7.3. Setting a Parameter to the Minimum Value
Maximum frequency/Speed limit Maximum frequency/Speed limit
1500 rpm
P1-01 7500 rpm 0 rpm
Whilst editing a parameter
value, press the Up and Down
keys simultaneously.
100 100
P1-14 30 000 0 P1-14 30 000 0
Adjust the value using When the cursor reaches
the Up and Down the highest accessible
keys. digit, pressing Stop and
Navigate will return the
cursor to the right most
digit.
0 rpm
P1-01 7500 rpm 0 rpm
The parameter will be set to the
lowest possible value.
100
P1-14 30 000 0
Press the Navigate
key to return to the
parameter selection
menu.
