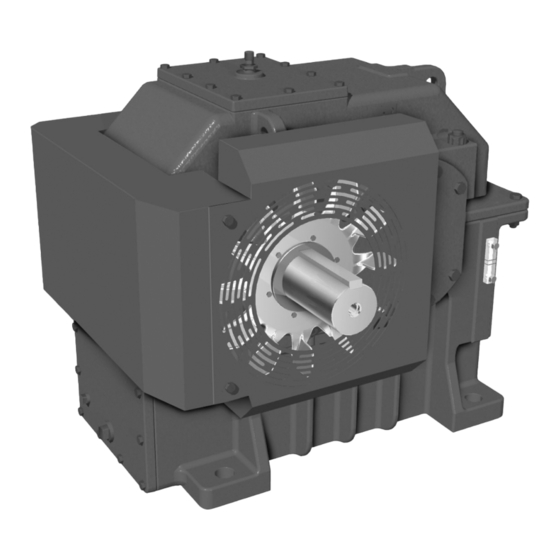

PARAMAX DRIVE
Single Stage Drives
■  PARAMAX SINGLE STAGE DRIVES SPA Series should be handled, installed and
maintained by trained technicians. Carefully read the maintenance manual before use.
■  Oil is removed from PARAMAX SINGLE STAGE DRIVES SPA Series before shipment.
Supply oil according to the maintenance manual before operation.
■  A copy of this maintenance manual should be sent to the actual user of PARAMAX

SINGLE STAGE DRIVES SPA Series.
■  This maintenance manual should be maintained by the user.
SPA
Series
Maintenance Manual GM2003E
-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARAMAX SPA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sumitomo Drive Technologies PARAMAX SPA Series

Summary of Contents for Sumitomo Drive Technologies PARAMAX SPA Series

  • Page 1 PARAMAX DRIVE Single Stage Drives Series ■  PARAMAX SINGLE STAGE DRIVES SPA Series should be handled, installed and maintained by trained technicians. Carefully read the maintenance manual before use. ■  Oil is removed from PARAMAX SINGLE STAGE DRIVES SPA Series before shipment. Supply oil according to the maintenance manual before operation.

  • Page 2: Table Of Contents

    (Safety and other precautions) Carefully read this maintenance manual and all accompanying documents before use ( installation, operation, maintenance, inspection, etc. ) . Thoroughly understand the machine, information about safety, and all precautions for correct operation. Maintain this manual for future reference. Pay particular attention to the "DANGER"...

  • Page 3: Inspection Upon Delivery

    Inspection upon delivery CAUTION Unpack the unit after verifying that it is positioned right side up ; otherwise, injury may result. Verify that the unit received is in fact the one ordered. When a different product is installed, injury or damage to the system may result.

  • Page 4: Storage

    2. Storage When storing PARAMAX SINGLE STAGE DRIVE SPA Series for any extended periods of time before use, consider the following important points. 2-1) Temporary storage ( 1 ) Store PARAMAX SINGLE STAGE DRIVE SPA Series in a clean, dry, covered storage area. .

  • Page 5: Coupling With Other Machines

    4-1) Location of installation Ambient temperature : 0 to +40 (+32 to +104 Ambient humidity : 85% max. Ambient atmosphere : There shall be no corrosive gas, explosive gas. The installation space shall be well ventilated, and free from dust. Location of installation : Indoors or outdoors.

  • Page 6: Lubrication

    5-1) Installation coupler . When attaching a coupler, be careful not to apply impact force or excessive Shaft Coupler thrust to the shaft ; otherwise, the bearing may be damaged. . Shrink fit or shaft-end thread is recommended for mounting ( Fig. 3 ) The dimensions ( A, B, and X ) illustrated in Fig.
  • Page 7 Table 4 Recommended lubricants CASTROL CHEVRON TEXACO EXXON MOBIL Brand SHELL TOTAL GEAR MOBIL- ISO VG68 ENERGOL ALPHA OPTIGEAR TRIBOL MEROPA SPARTAN OMALA CARTER COMPOUNDS GEAR AGMA 2EP GR-XP-68 SP68 BM68 1100/68 WM68 EP68 EP68 EP68 GEAR MOBIL- ISO VG100 ENERGOL ALPHA OPTIGEAR...

  • Page 8: Cooling Coil

    7. Cooling coil 7-1) Specifications · In the Sumitomo standard specifications, the temperature of the cooling water is 20°C and the flow rate is 5 lit./min. However, the cooling effect is changed depending on the water temperature and flow rate. Please check the manufacture specifications.

  • Page 9: Operation

    8. Operation DANGER Never approach or touch any rotating parts ( shaft, etc. ) during operation. Loose clothing caught in these rotating parts may result in severe injury and/or death. CAUTION Check the oil level with the oil gauge before operation. When using pole change motors to change from high speed to low speed, control the fan rotation speed so that regeneration braking torque does not act on the reducer.

  • Page 10: Daily Inspection And Maintenance

    9. Daily inspection and maintenance DANGER Never approach or touch any rotating parts ( shaft, etc. ) when maintaining or inspecting the reducer during operation. Loose clothing cought in these rotating parts may result in severe injury and/or death. Be sure to stop both the driving and driven machines before checking any tooth surfaces; otherwise, you may be caught in the gear engaging section, resulting in severe injury and/or death.

  • Page 11: Troubleshooting

    10. Troubleshooting CAUTION Promptly identity and correct, according to instructions in this maintenance manual, any abnormalities observed during operation. Do not operate until abnormality is corrected. When any abnomality occurs in the reducer, refer to the following table and take appropriate measures as soon as possible.

  • Page 12: Construction Drawing

    12. Construction drawing Part Name POS.NO 3601 6001 2501 4101 4122 6504 6004 2501 Slow speed shaft 3601 Helical gear 3602 Helical pinion shaft 4101 4121 4122 4622 Tolerance ring 6001 Spherical roller bearing 6002 Spherical roller bearing 6003 Spherical roller bearing 6004 Spherical roller bearing 6502...

  • Page 13: Warranty

    14. Warranty The scope of our warranty for our products is limited to the range of our manufacture. Warranty (period and contents) The warranty period for the Products shall be 18 months after the commencement of delivery or 18 months after the Warranty shipment of the Products from the seller's works or 12 months from the Products coming into operation, whichever comes Period...
