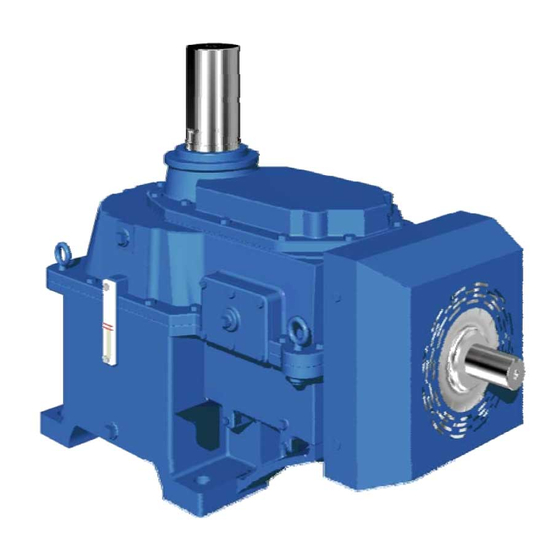

PARAMAX DRIVE
SFC
FOR AIR COOLED CONDENSERS
Series
PARAMAX DRIVE FOR AIR COOLED CONDENSERS should be handled,
installed, and maintained by trained technicians. Carefully read the maintenance
manual before use.
Oil is removed from PARAMAX DRIVE FOR AIR COOLED CONDENSERS before
shipment. Supply oil according to the maintenance manual before operation.
A copy of this maintenance manual should be sent to the actual user of PARAMAX
DRIVE FOR AIR COOLED CONDENSERS.
This maintenance manual should be maintained by the user.
Operating and Maintenance Manual GM2202E
-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumitomo Drive Technologies PARAMAX SFC Series
Summary of Contents for Sumitomo Drive Technologies PARAMAX SFC Series
- Page 1 PARAMAX DRIVE FOR AIR COOLED CONDENSERS Series PARAMAX DRIVE FOR AIR COOLED CONDENSERS should be handled, installed, and maintained by trained technicians. Carefully read the maintenance manual before use. Oil is removed from PARAMAX DRIVE FOR AIR COOLED CONDENSERS before shipment.
-
Page 2: Table Of Contents
(Safety and other precautions) Carefully read this maintenance manual and all accompanying documents before use ( installation, operation, maintenance, inspection, etc. ) . Thoroughly understand the machine, information about safety, and all precautions for correct operation. Maintain this manual for future reference. Pay particular attention to the "DANGER"... -
Page 3: Inspection Upon Delivery
Inspection upon delivery CAUTION Unpack the unit after verifying that it is positioned right side up ; otherwise, injury may result. Verify that the unit received is in fact the one ordered. When a different product is installed, injury or damage to the system may result. -
Page 4: Storage
2. Storage When storing PARAMAX DRIVE FOR AIR COOLED CONDENSERS for any extended periods of time before use, consider the following important points. 2-1) Temporary storage ( 1 ) Store PARAMAX DRIVE FOR AIR COOLED CONDENSERS in a clean, dry, covered storage area. . -
Page 5: Coupling With Other Machines
4-1) Location of installation Ambient temperature : 0 to +40 (+32 to +104 Ambient humidity : 85% max. (Air vent or air breather must be located outside of fan stack with extended piping) Ambient atmosphere : There shall be no corrosive gas, explosive gas. The installation space shall be well ventilated, and free from dust. -
Page 6: Lubrication
5-1) Installation coupler . When attaching a coupler, be careful not to apply impact force or excessive Shaft Coupler thrust to the shaft ; otherwise, the bearing may be damaged. . Shrink fit or shaft-end thread is recommended for mounting ( Fig. 2 ) The dimensions ( A, B, and X ) illustrated in Fig. -
Page 7: Backstop
Table 4 Recommended lubricants Mineral Oil Brand CASTROL CHEVRON TEXACO TOTAL EXXON MOBIL SHELL GEAR ISO VG320 ENERGOL ALPHA OPTIGEAR TRIBOL MEROPA SPARTAN MOBIL- CARTER OMALA COMPOUNS AGMA 6EP BM320 GR-XP-320 SP320 WM 320 EP320 GEAR 632 1100/320 EP320 EP320 Synthetic Oil Brand EXXONMOBIL... -
Page 8: Operation
8. Operation DANGER Never approach or touch any rotating parts ( shaft, etc. ) during operation. Loose clothing caught in these rotating parts may result in severe injury and/or death. CAUTION Check the oil level with the oil gauge before operation. When using pole change motors to change from high speed to low speed, control the fan rotation speed so that regeneration braking torque does not act on the reducer. -
Page 9: Daily Inspection And Maintenance
9. Daily inspection and maintenance DANGER Never approach or touch any rotating parts ( shaft, etc. ) when maintaining or inspecting the reducer during operation. Loose clothing cought in these rotating parts may result in severe injury and/or death. Be sure to stop both the driving and driven machines before checking any tooth surfaces; otherwise, you may be caught in the gear engaging section, resulting in severe injury and/or death. -
Page 10: Troubleshooting
10. Troubleshooting CAUTION Promptly identity and correct, according to instructions in this maintenance manual, any abnormalities observed during operation. Do not operate until abnormality is corrected. When any abnomality occurs in the reducer, refer to the following table and take appropriate measures as soon as possible. -
Page 11: Construction Drawing
12. Construction drawing Part Name POS.NO Slow speed shaft 2501 3601 4101 6001 3602 6004 6006 4124 4622 6506 Helical gear 3601 3604 3602 Helical pinion shaft 3603 Helical gear 3604 Helical pinion shaft 4004 Oil pump 4101 4103 4121 4122 4144 4622... -
Page 12: Locations Of Oil Filler And Drain Plug
13. Locations of oil filler and drain plug Air Breather Oil Filler Oil Gauge Cooling Fan Drain Plug Magunetic Plug Oil Pump Fig.6 Locations of oil filler and drain plug... -
Page 13: Warranty
14. Warranty The scope of our warranty for our products is limited to the range of our manufacture. Warranty (period and contents) The warranty period for the Products shall be 18 months after the commencement of delivery or 18 months after the Warranty shipment of the Products from the seller's works or 12 months from the Products coming into operation, whichever comes Period... - Page 14 GM2202E-1.0 2004.2...
