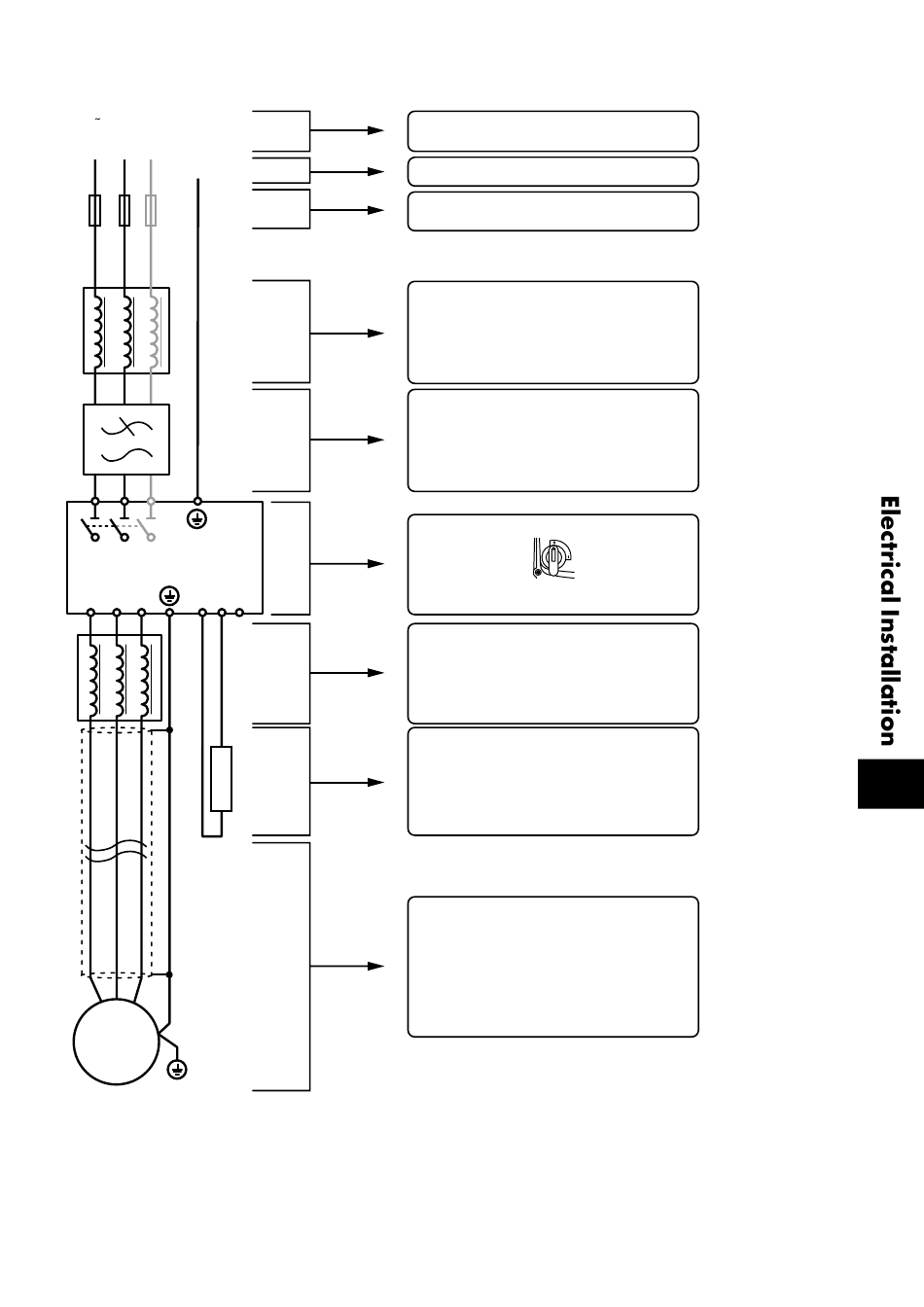

4.1.2. Electrical Power Connections – IP66 (NEMA 4X) Switched Models
Mains (1 or 3 phase)
L1/L L2/N L3
PE
L1/L L2/N L3
ODP-2 IP66 (NEMA 4X) Switched
DC DC
BR
U V W
+ -
VI
UI
WI
M
PE
www.invertekdrives.com
Incoming Power Connection
Additional information in section 4.3. on page 22
Protective Earth PE Connection
Additional information in section 4.2. on page 22
Fuses/Circuit Breaker
Additional information in section 4.3.3. on page 22
External Line Reactor (optional)
Additional information in section 4.3.4. on page 24
External EMC Filter (optional)
Additional information in section 4. 1 3. on page 28
Built-in mains switch-disconnector
Ensure there is at least 30 seconds
between each power-on!
External Output Filter (optional)
 Output Choke (load reactor)
 dV/dT filter
 Sinewave filter
Brake Resistor with Thermal Overload Protection
Additional information in section 4.8. on page 24
Shielded Motor Cable with PE Connection
Additional information in section 4.6. on page 23
