NOTE
Typical drive heat losses are approximately 3% of operating load conditions.
Above are guidelines only and the operating ambient temperature of the drive MUST be maintained at all times.
3.9. Guidelines for Mounting (IP66 Units)
 B efore mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 10. 1 . Environmental on page 72.
 T he drive must be mounted vertically, on a suitable flat surface.

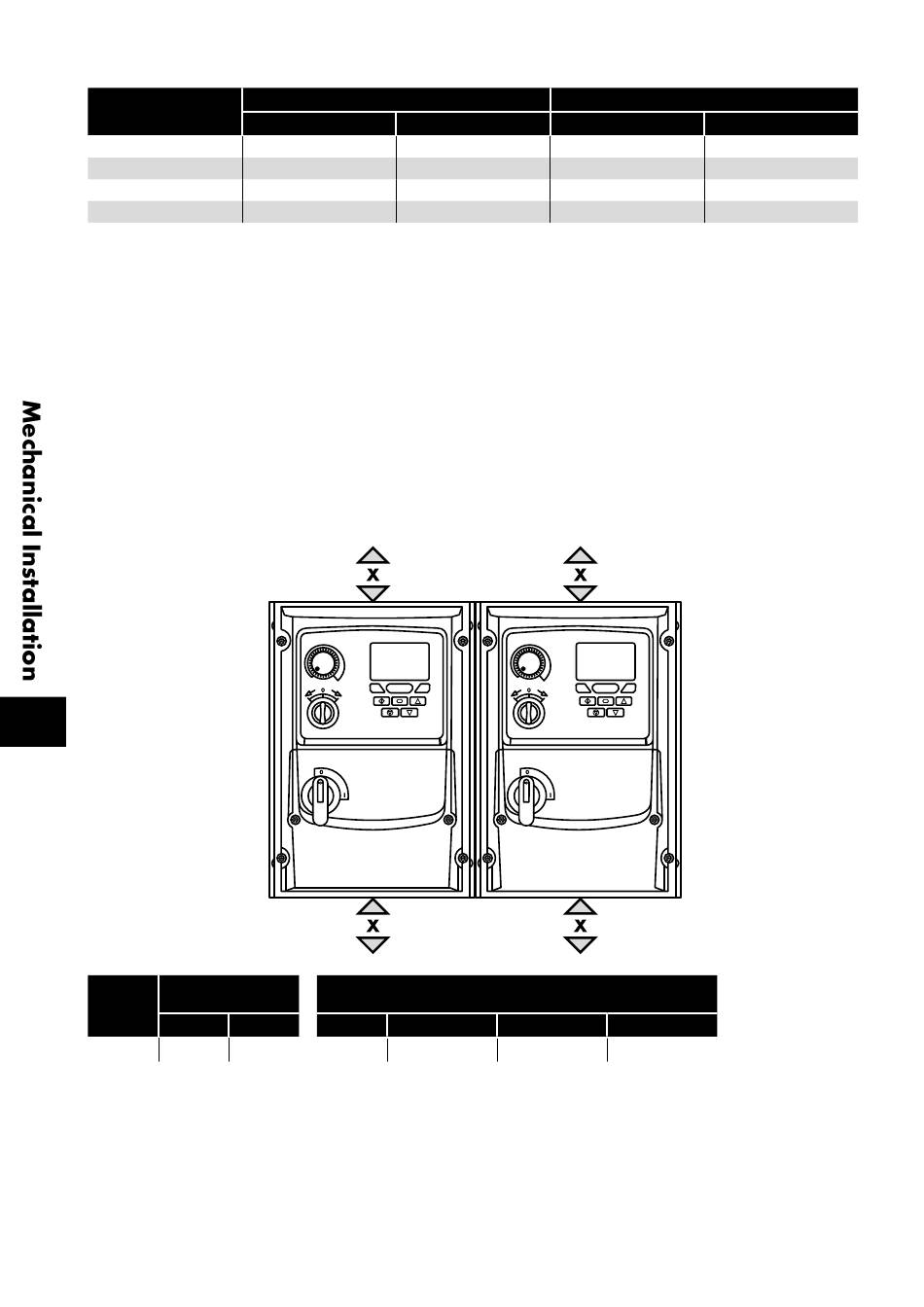

 T he minimum mounting clearances as shown in the table below must be observed.
 T he mounting site and chosen mountings should be sufficient to support the weight of the drives.
 Using the drive as a template, or the dimensions shown below, mark the locations required for drilling.
 S uitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are
pre-moulded into the drive enclosure, recommended gland sizes are shown below. Gland holes for control cables may be cut as
required.
3
Drive
Above & Below
Size
mm
2 & 3 200
NOTE
Typical drive heat losses are approximately 3% of operating load conditions.
Above are guidelines only and the operating ambient temperature of the drive MUST be maintained at all times.
Alternative metric gland sizes are shown in the brackets.
18 | Optidrive P2 User Guide | Version 3.07
X –Above & Below
mm
200
200
200
200
X
in Frame
7.87 2 & 3
in
7.87
7.87
7.87
7.87
Cable Gland Sizes
Power Cable Motor Cable
PG21 (M25) PG21 (M25)
Y –Either Side
mm in
10 0.39
10 0.39
10 0.39
10 0.39
Control Cables
PG13.5 (M20)
