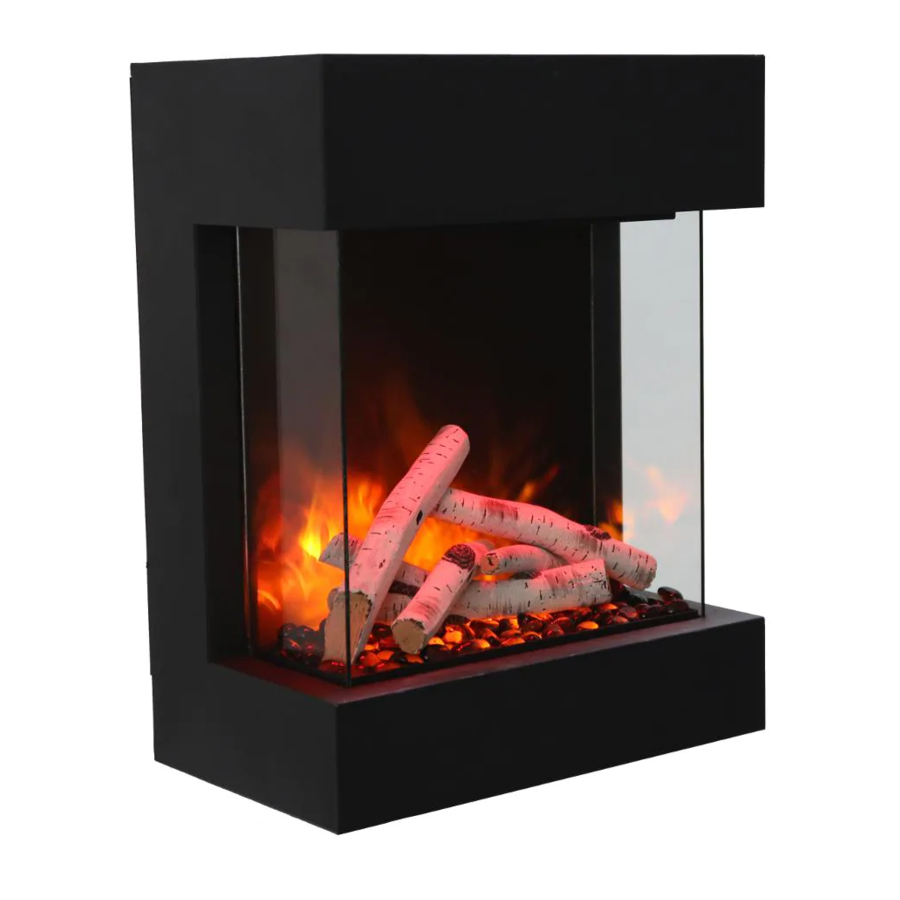

INSTALLATION AND OPERATION INSTRUCTIONS FOR




CUBE‐2025WM












If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
SAFETY INFORMATION
WARNING
li

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBE-2025WM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amantii CUBE-2025WM

  • Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR          CUBE‐2025WM                        SAFETY INFORMATION    WARNING  If the information in these instructions  are not followed exactly, a fire or  explosion may result causing property  damage, personal injury or loss of life.  Do not store or use gasoline or other flammable vapors  and liquids in the vicinity of this or any other    INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.  CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. ...
  • Page 2: Table Of Contents

    Contents IMPORTANT INSTRUCTIONS ..........................3 UNPACKING AND TESTING APPLIANCE ......................4 GROUNDING APPLIANCE ........................... 4 LOCATING THE FIREPLACE ..........................4 CUBE-2025WM ............................... 5 INSTALLATION WALL-MOUNT ......................... 6 INSTALLATION CUBE-BASE-LEGS ........................7 INSTALLATION CUBE-BASE-SPEAKER ......................8 HARD- WIRE INSTALLATION .......................... 10 MEDIA OPTIONS ..............................
  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS  1. Do not operate appliance before reading and understanding operating instructions. Failure to  operate appliance according to operating instructions could cause fire or injury.  2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at  least 3 feet from the front of the heater; keep them away from sides and rear as well.  3. Always unplug heater when it’s not in use.  4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the  unit has been dropped or damaged in any way.  5. Never place the heater where it may fall into a bathtub or other water containers.  6. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange  cord away from traffic area and where it will not be tripped over.  7. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.  8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may  cause an electric shock, fire or damage to the heater.  9. To prevent a possible fire, do not block air intakes.  10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint  or flammable liquids are used or stored.  11. Use this heater only as described in this manual. Any other use not recommended by the  manufacturer may cause fire, electric shock or injury to persons.  12. Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or  relocatable power tap (outlet/power strip).  13. Always use properly grounded fused and polarized outlets.  14. Always use ground fault protection where it is required by electrical codes.  15. Always disconnect the power before performing any cleaning, maintenance or relocation of the  heater.  16.
  • Page 4: Unpacking And Testing Appliance

    UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt grounded outlet. Test all aspects of its operation (manual switches, remote and heater) to make sure all components operate correctly.
  • Page 5: Cube-2025Wm

    CUBE‐2025WM    Description  This  appliance  has  been  tested  in  ELECTRIC FIREPLACE  accordance with the UL Standard 2021  Voltage  120V AC 60Hz  for  fixed  and  location  dedicated  Watts  1500W Max  electric  room  appliances in  the United  NO HEATER  25W  States  and  Canada.  If  you  need  MOTOR HEATER  19W  assistance  during  installation,  please  Appliance Width  19 5/8" or 50 cm  contact your local dealer. ...
  • Page 6: Installation Wall-Mount

    INSTALLATION WALL‐MOUNT  NOTE: Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance. 1. Select  a  location  that  is  not  prone  to  moisture and is located at least 0.91 m or 3  feet away from combustible materials such  as  curtains  or  drapes,  furniture,  bedding,  paper, etc. ...
  • Page 7: Installation Cube-Base-Legs

    INSTALLATION CUBE‐BASE‐LEGS    1. Screw the base legs to the steel panel.  3. Place the unit onto the base leg and screw    and screw in the adjustable feet, fixing the    unit and the base leg.                              4. You have completed the installation of    2. Unscrew the adjustable feet from the  the CUBE‐BASE‐LEGS.  bottom of the unit.            ...
  • Page 8: Installation Cube-Base-Speaker

    INSTALLATION CUBE‐BASE‐SPEAKER    1. Unscrew the adjustable feet from the unit.  3. Place the unit on the CUBE‐BASE‐SPEAKER    and screw in the adjustable feet, fixing the    unit and the speaker box.                  4. Plug  into  the  back  of  the  unit.  Re‐install  2. Unscrew the rear screws and remove the  the back steel panel.  back steel panel               ...
  • Page 9 INSTALLATION OUTDOOR    CUBE electric fireplaces are suitable for installation in outdoor areas protected from direct water  impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain  protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed  appliance. See illustration below. All wiring connections to line power shall be in accordance with local  building code requirements.     NOTE: The CUBE Wall Mount Unit is approved for outdoor use. The Cube Speaker Base and Cube Leg Base are  NOT approved for use outdoors.         The overhang (A) must extend at least 1/2 the roof‐line height (B). Height is measured from the base of the  fireplace.   For example: if the roof‐line (B) is 8' above the base of the fireplace, the overhang (A) must be at least 4'.    ...
  • Page 10: Hard- Wire Installation

    HARD‐ WIRE INSTALLATION  Turn off the appliance completely and let cool before servicing. Only a qualified technician  should service and repair this electric appliance.    If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection,  and wire the appliance directly to the house hold wiring.    This appliance must be electrically connected and grounded in accordance with local codes, if hard  wired.  In  the  absence  of  local  codes,  use  the  current  CSA  C22.1  CANADIAN  ELECTRICAL  CODE  in  Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States.    1. Remove the cover plate from the left side of the appliance by removing the two screws, as  shown below. Unscrew and remove power cord.      2. Attach the wiring to the junction block. Please make sure the live wire goes into the "L", the  neutral wire into "N" and the ground wire into  " G".        3. Replace the steel plate and screws.   ...
  • Page 11: Media Options

    MEDIA OPTIONS    Your  fireplace shipped with  log  set  and sable  STEP  3:  Remove  the  front  glass  panel  to  glass.  decorate  your  fireplace.  Pour  the  decorative    media  into  the  tray.  Feel  free  to  use  any  combination of fire glass media that you find  most appealing.      LOG SET      ...
  • Page 12: Operation

    OPERATION  The fireplace can be operated either by the switches located on the left front of the fireplace unit or  by supplied remote control.  MANUAL OPERATION        1. The main power ON/OFF switch in position O, the fireplace is OFF.  2. When main power ON/OFF switch is at position I, the fireplace is ready to use.  3. Press the   button repeatedly to set the heater to desired heat setting. The heater indicator  LED will glow which shows the current heater settings.  a) RED 1500W HEAT OUTPUT  b) BLUE 750W HEAT OUTPUT  c) PURPLE AUTO MODE  AUTO MODE  Under this mode the heater will automatically turn ON at high heat setting 1500W heat output when  the  room  temperature  drops  below  22℃(72℉).  When  the  room  temperature  is  between  22‐ 25℃(72‐77℉) the heater output will switch to low heat setting 750W. When the room temperature  goes above 25℃(77℉) the heater will be turned off and the cycle will continue. The LED indicator  will be PURPLE in colour under this mode.  4. Flame effect:  Press the button marked   to adjust the flame brightness. The flame brightness ...
  • Page 13: Remote Control Operation

    REMOTE CONTROL OPERATION      For remote to function make sure the heater is plugged in and main power switch located on the  bottom left hand side is at position I.  When operating the remote make sure you point the remote to the center of the fireplace and make  sure each time you press the button the buzzer inside the unit will beep once. It takes some time for  the  receiver  to  respond  to  the  transmitter.  Do  not  PRESS  the  buttons  more  than  once  within  two  seconds for correct operation.  Power on   button: The power‐on button at top left corner of the remote is the main ON/OFF  power button. This will turn off all the functions and the fireplace will be in standby mode.    DISPLAY ON/OFF button: Switching the fireplace flame and tray light ON/OFF. It has functions of  setting memory.  DISPLAY BLUE button: Adjust the blue color brightness of flame and tray. DISPLAY YELLOW button: Adjust the yellow color brightness of flame and tray.
  • Page 14: Installing Wall Thermostat

    INSTALLING WALL THERMOSTAT  WALL THERMOSTAT WIRING DIAGRAMS      Wire the wall thermostat prior to installing the fireplace.  WALL THERMOSTAT WIRING (24 VAC)  Install Wall Thermostat per instructions provided with kit and per the following information:  1. Turn off circuit breaker.  2. Remove cover plate located on the left side of appliance.  Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat as  shown below. Follow instructions provided with wall switch kit.  ...
  • Page 15: Replacement Parts

    REPLACEMENT PARTS This list contains replacement parts PART NUMBER DESCRIPTION QTY. 10701357 FRONT CLEAR GLASS (MIDDLE) 10201505 ADJUSTABLE SCREW 3123010 FIXER FOR FRONT GLASS PANEL 10701356 SIDE GLASS PANEL 10702216 VISUAL GLASS 10702215 BOTTOM GLASS  602082 BLOWER AND HEATER ASSEMBLY 601036 CONTROL PANEL 10104002 SWITCH...
  • Page 16: Exploded View

    EXPLODED VIEW •  ...
  • Page 17 ꞏ ꞏ l \ ) "Q TEMPERATURE SENS R RECEIVER UUlUJ >- L\)J < ꞏ JJ:-4 < illRP ꞏ - • • 1--1 JJ:-4 "•9." BYB+ C 'U /n"' - BUTT N □ RBI.AT-Bl RBLAT-H: RBI.ATꞏ+ P..LI ,iT-B M . . . P-1,1 P WER -----------...
  • Page 18: Trouble Shooting

    TROUBLE SHOOTING        PROBLEM  POSSIBLE CAUSE  SOLUTION  Dim or no flame  Flame LED’s are burnt out.  Inspect the LED’s and replace them if  necessary.  Back black cloth is falling off  Change a flicker and back black cloth.  and rolled up in the flicker.  Ember  bed  is  not  Ember LED’s are burnt out  Inspect the ember bed LED’s and  glowing or dimming  replace them if necessary.  Appliance turns off and  Appliance has overheated, and  Turn  off  the  main  switch,  allow  will not turn on  safety device has caused the  appliance to cool for 10 minutes,   thermal switch to disconnect.  turn back on.  House  circuit  breaker  has  Reset house circuit breaker.  tripped. ...
  • Page 19: Service History

    SERVICE HISTORY        This heater must be serviced annually depending on usage.    Date  Dealer  Service  technician  Service Performed  Special Concerns  Name  Name        NOTES:                                         ...
  • Page 20 Amantii warrants such products to be free from defects in material and workmanship for a period of two (2) years from the date of the first purchase of such products. The limited two (2) year warranty period for products also applies to any implied warranties that may exist under applicable law. Some...
