Introducing the OSA20
Product Overview

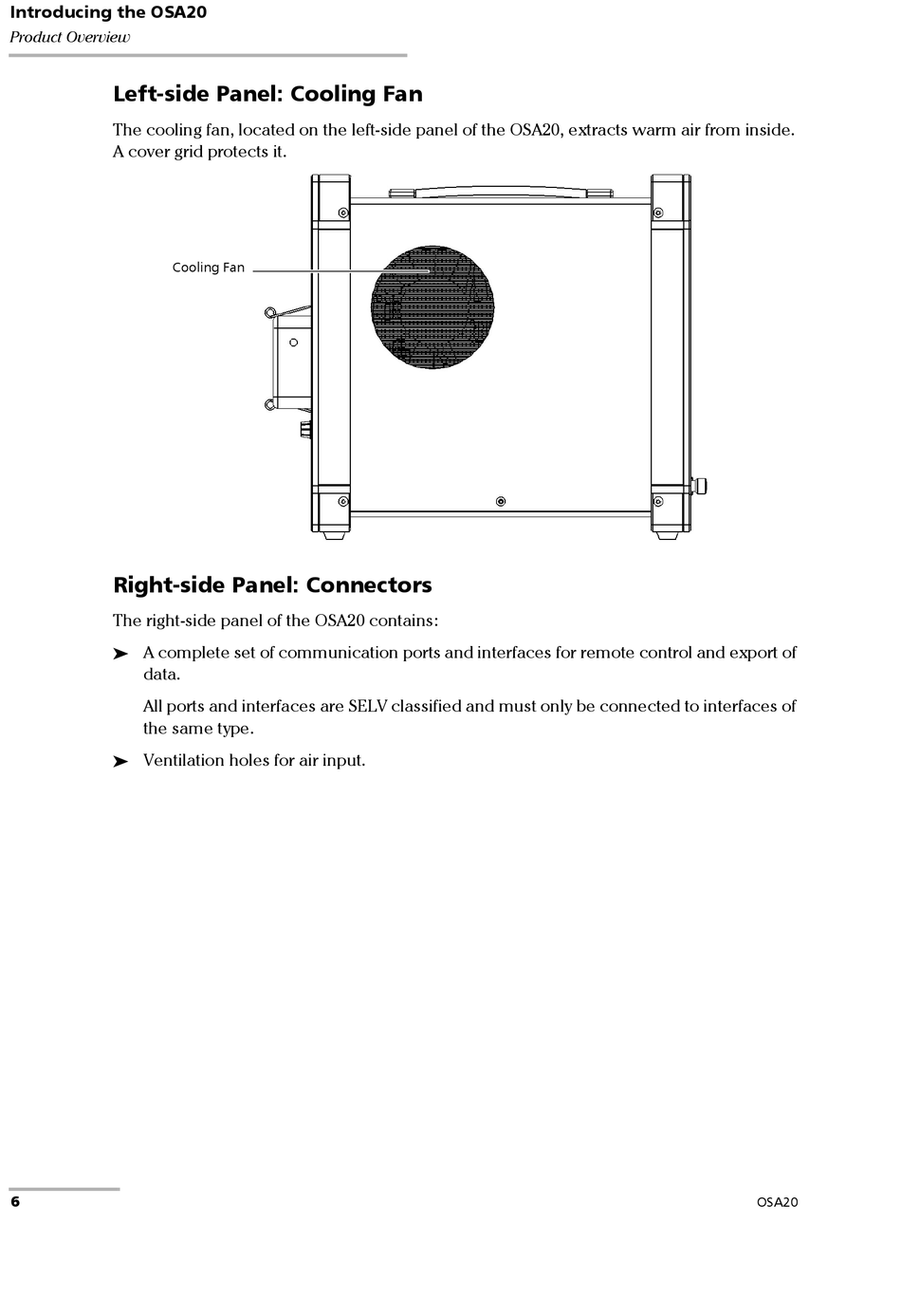

Left-side Panel: Cooling Fan
The cooling fan, located on the left-side panel of the OSA20, extracts warm air from inside.
A cover grid protects it.
Cooling Fan
Right-side Panel: Connectors
The right-side panel of the OSA20 contains:
A complete set of communication ports and interfaces for remote control and export of
data.
All ports and interfaces are SELV classified and must only be connected to interfaces of
the same type.
Ventilation holes for air input.
6
OSA20
