Mounting a falling/rising vertical bend

Rising or falling vertical bends are used to route cables in a 90° vertical
angle. Vertical bends are available in the widths 100–600 mm. Vertical
bends have connector perforation and are screwed on with FRS M6
truss-head bolts and combination nuts.

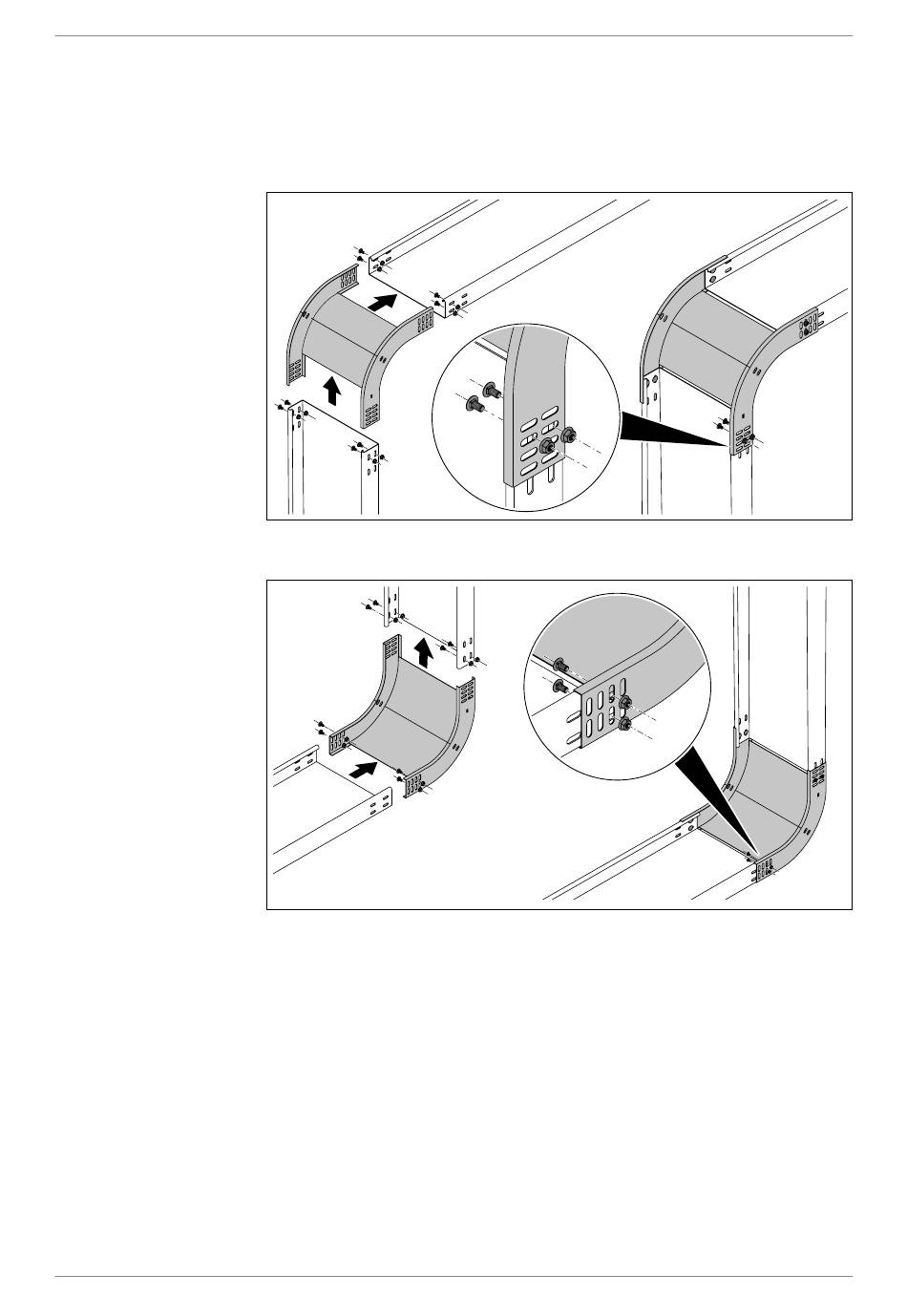

Fig 43: Mounting a falling vertical bend
Fig 44: Mounting a rising vertical bend
1. Push the vertical bend onto the first cable tray. In so doing, the outer
cable tray rails are within the vertical bend.
2. Screw the vertical bend to the first cable tray.
3. Push the second cable tray into the vertical bend.
4. Screw the vertical bend to the second cable tray.
