Attaching The Block To The Graphics Card; Attaching The I/O Bracket - EK-Quantum Vector FTW3 RTX 3080 User Manual

M2.5 x 4 AX1 SCREW
M2.5 PVC WASHER
M2.5 NUT
STEP 2
M2.5 x 6 AX1 SCREW
M2.5 x 6 AX1
SCREW
STEP 3
STEP 2

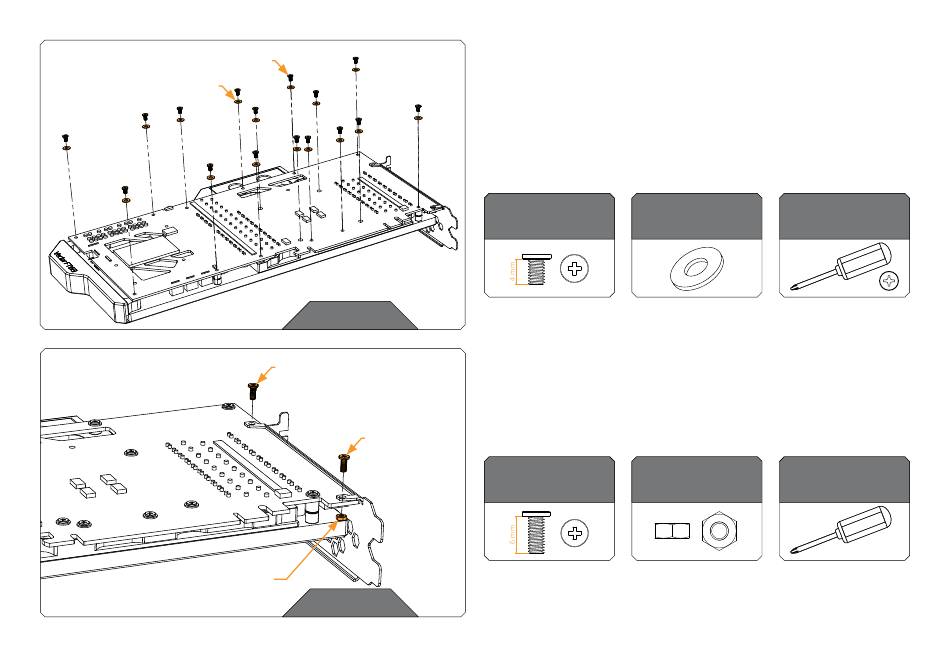

ATTACHING THE BLOCK TO THE GRAPHICS CARD

Use sixteen (16) M2.5 X 4 AX1 screws and M2.5 PVC washers.
Tighten the screws evenly using the Phillips head screwdriver.
EK recommends you start tightening the screws around the GPU
core first and then continuing outward to prevent damaging the
GPU. Always use a plastic washer under each screw!
For this Step, you will need:
M2.5 x 4 AX1
(16 pcs)
STEP 3

ATTACHING THE I/O BRACKET

Use two (2) M2.5 X 6 AX1 screws and one (1) M2.5 Nut to secure the
I/O bracket to the PCB.
For this Step, you will need:
M2.5 x 6 AX1
(2 pcs)
- 10 -
M 2.5 PVC Washer Phillips Head
(16 pcs) Screwdriver
M 2.5 Nut Phillips Head
(1 pc) Screwdriver
