5.2 System settings

5.2.1 Aircraft

The following aircraft associated settings can be found in this sub-menu:
Category - which category of aircraft does your aircraft belong to. Changing this will
change the aircraft icon, as depicted with the aircraft icons selection below.

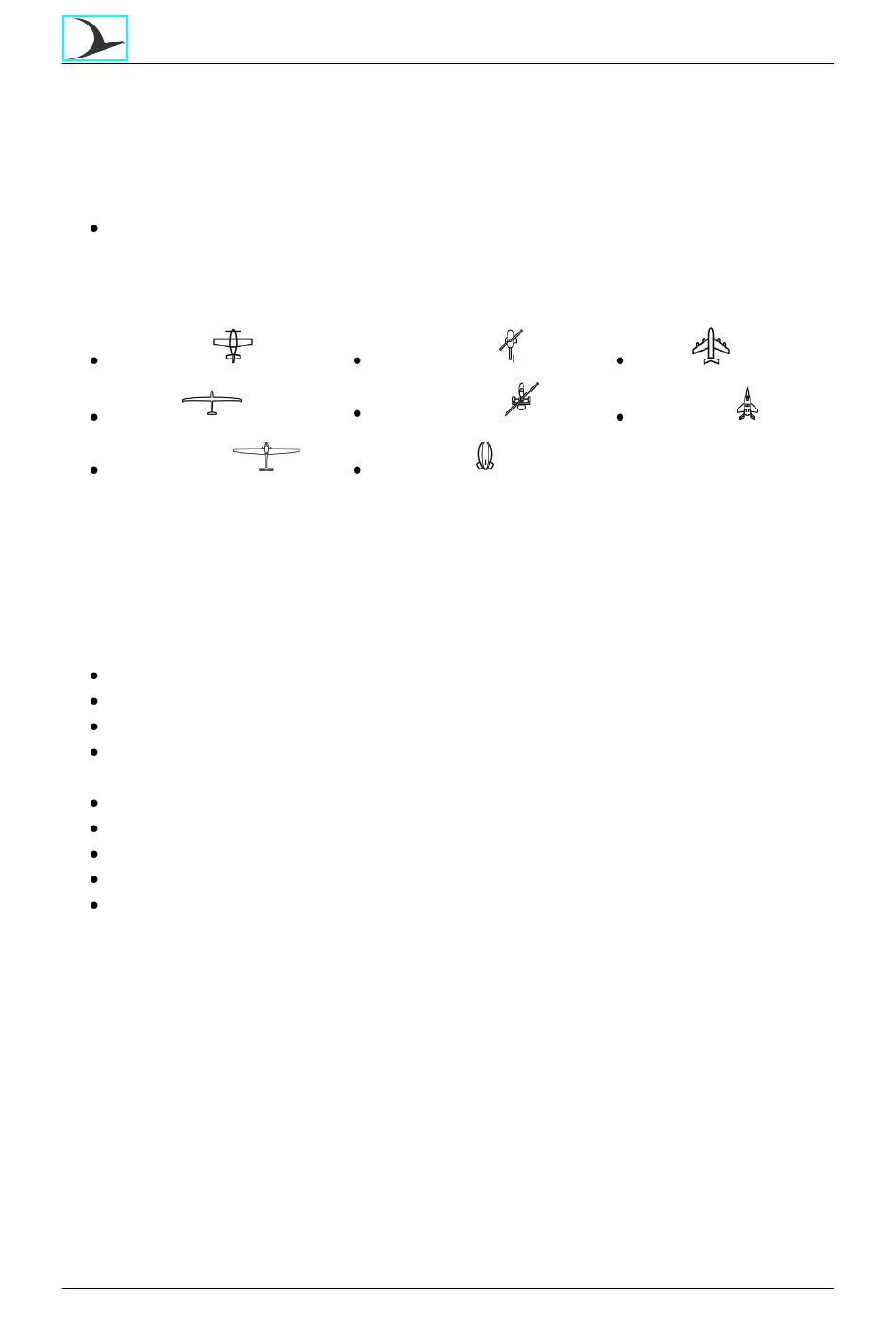

Aircraft icon selection:
Airplane -
Glider -
Motor glider -

5.2.2 Units

Sets the units used for different parameters throughout the device. The following parameters
and units are available:
Altitude - meters [m] or feet [ft]
Climb rate - meters per second [m/s], knots [kts] or feet per minute [fpm]
Speed - kilometers per hour [km/h], miles per hour [mph] or knots [kts]
Wind speed - kilometers per hour [km/h], miles per hour [mph], knots [kts] or meters per
second [m/s]
Distance - kilometers [km], nautical miles [nm] or statute miles [ml]
Pressure - hectopascal [hPa], inches of mercury [inHg] or millibars [mb]
Temperature - degrees Celsius [C] or degrees Fahrenheit [F]
Weight - kilograms [kg] or pounds [lb]
Aera - square meters [m2] or square feet [ft2]

5.2.3 NMEA

The LX Traffic Square acts as a pass-through device for NMEA data received from the Flarm
through the DATA IN port and forwards it through the DATA OUT port.
The pilot can set the bauderate of both the incoming and outgoing data by selecting one of the
options between 4800 & 11520.
