LX Traffic Square
Advanced operation

4.3 Info page

The info page shows the current GPS status and additional info, received from the GPS, like
the GPS location, UTC time and date.
The device shows the battery voltage of the LX Traffic Square's external (airplane) power
supply.
Lastly, the page shows the Flarm connection status, and Flarm device ID. You can use this ID
to register the device at OGN network.

4.4 Logbook/Flight statistics page

This page can be either the 'Logbook' or 'Flight statistics page, based solely on if the device is
in flight mode.

4.4.1 Logbook

When the device is not in flight mode, this page will be in Logbook mode.
Device manual

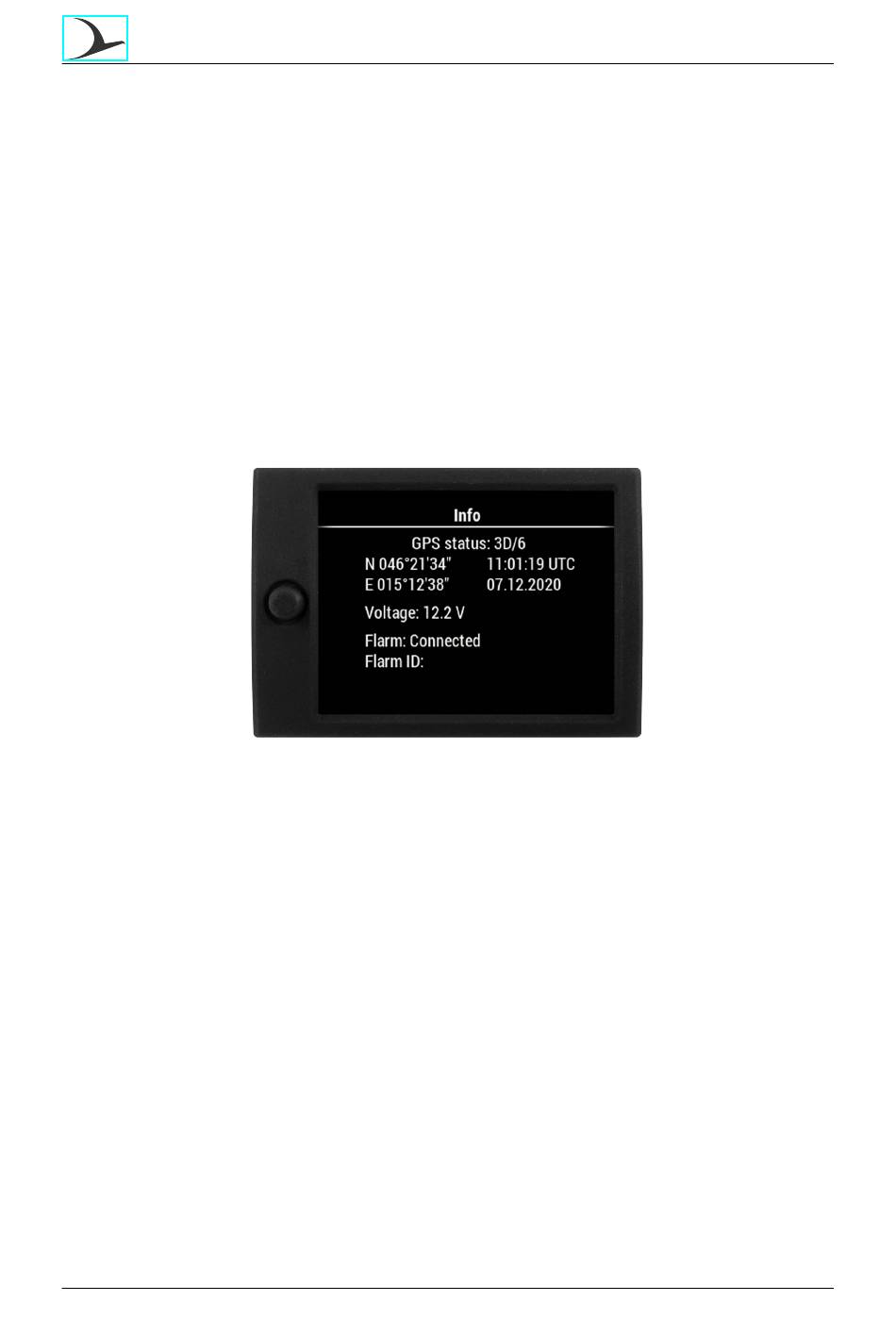

Figure 16. Info page overview
