LX Traffic Square
Advanced operation

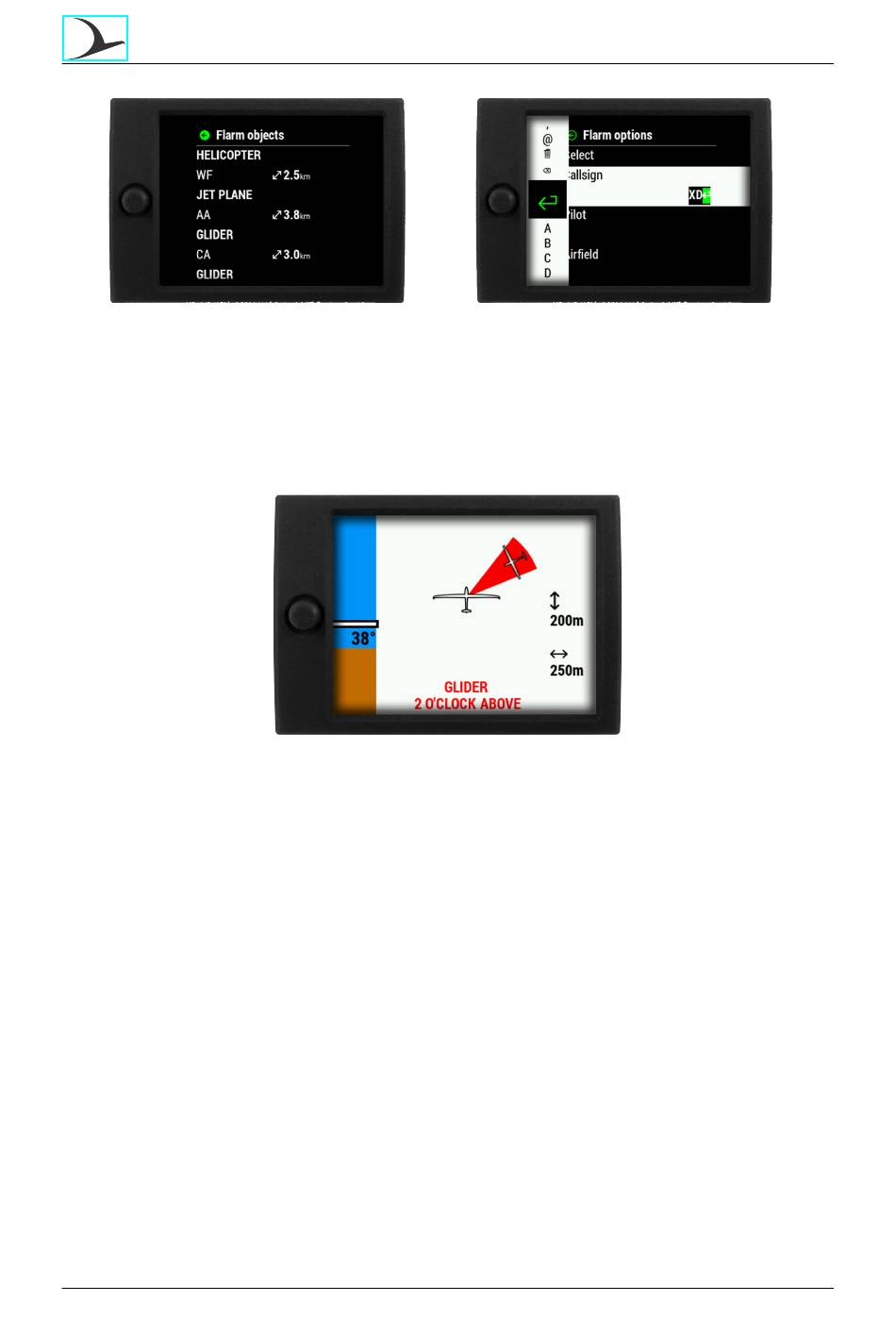

Figure 4. List of visible Flarm objects
An important safety feature of the LX Traffic Square is the Flarm warning page. This page
pops-up whenever the Flarm device sends a warning sentence, regardless of the menu, page
or setup you're currently in.
The Flarm warning screen shows the type of object the Flarm is warning you about, from the
list of supported Flarm objects (Glider shown on figure). It's relative direction to your heading,
relative altitude and distance, as well as an angle from the horizon, with the blue/brown scale
on the left side of the screen. The relative direction of the object is also written in word with
GLIDER 12 O'CLOCK ABOVE.
