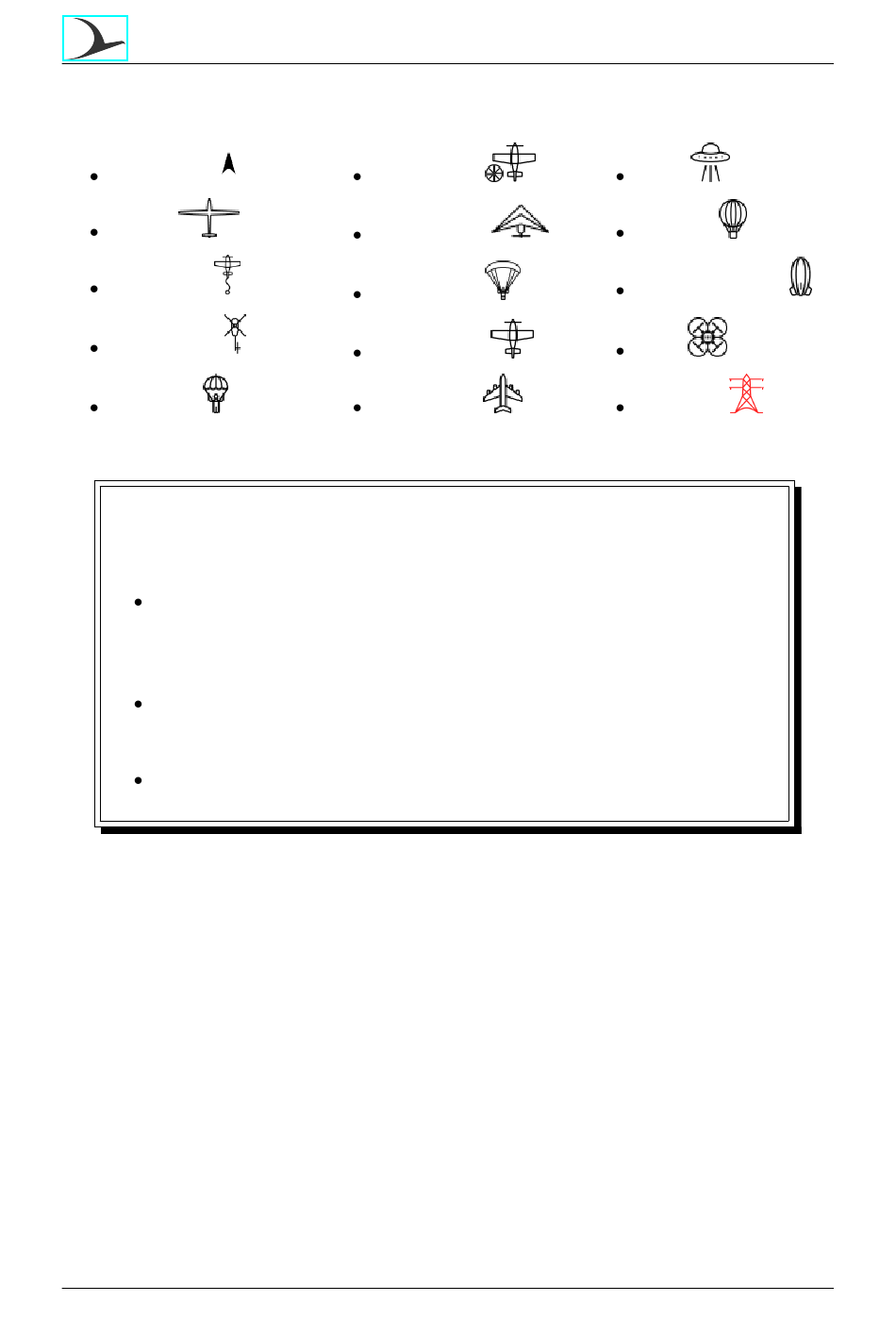

The LX Traffic Square can show the following objects with appropriate graphics:
Unknown -
Glider -
Tow plane -
Helicopter -
Skydiver -
A lot of effort was put into the design of the Flarm Warning screen, shown by
figure 34. It's sole purpose is to quickly familiarize the pilot with the potential
danger. Flarm provides us with three distinctive levels of danger:
13 to 18 seconds to impact - the Flarm Warning screen appears, the LX
Traffic Square's internal beeper and the flashing of the direction cone are in
the same, steady frequency. The lady from the LX Traffic Square's internal
voice module notifies you of the location of the object.
9 to 12 seconds to impact - same as previous level, both the internal beeper
frequency and beeping interval, as well as the flashing interval, intensify
(higher frequency)
0 to 8 seconds to impact - as on previous level, with the highest frequency
of beeping and flashing.
