4.2.4 Airport navigation page
The
Airport
navigation
Turnpoint navigation page, so be sure to check the previous section for additional in-
formation.
This page is used for navigating towards a single airport, from the .af file loaded into the LX
Traffic Square. The navigation screen shows turnpoints, airports and airspaces on the map
area.
Basic operation on this page has been explained in the Navigation pages section. Here, we
will explain some specifics of the Airport navigation page, and how to perform basic Airport
operations.

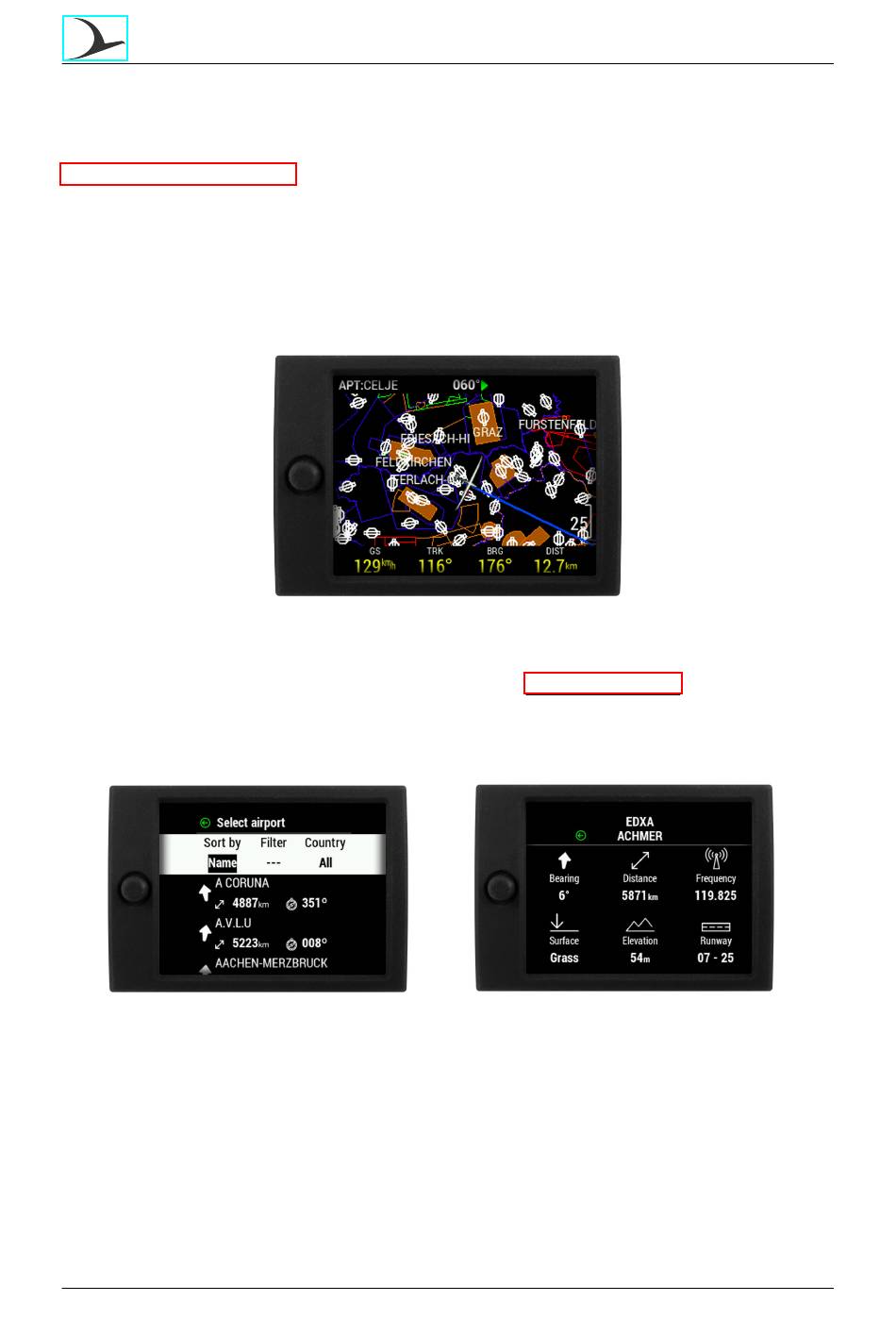

Figure 13. Airport selection sub-page
Long-pressing the push-knob will open the APT info sub-page, showing Bearing, Distance,
Surface type, Elevation, Airport Frequency and Runway directions.
Short-pressing the push-button, while on the airport navigation page, you will enter the
'Select airport' sub-page. Here, a selection of airports will be shown, along with distance
and bearing, as well as steering course (relative bearing) as described earlier, with an arrow.
These points can be sorted by either Distance, Name, or ICAO code.
Device manual
page
is
set
Figure 12. Airport navigation page overview
Public
Document name:
Document revision:
up
in
much
the
Figure 14. Airport additional info sub-page
LX_SQUM
R1
same
way
as
the
22
