- Page 1 Multifunction Voltage Tester Models: 72-3565...
-
Page 2: Table Of Contents
CONTENTS Page Number Details Important Safety Information Product Overview Measuring Voltage Test Single-Pole Voltage Detection Continuity Test Phase Rotation Test Specification Single-Pole Specification Continuity Specification Phase Rotation Test Specification Cleaning & Maintenance Changing The Batteries Calibration... -
Page 3: Important Safety Information
Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • The voltage detectors are designed to be used by skilled persons in accordance with safe methods of work. -
Page 4: Product Overview

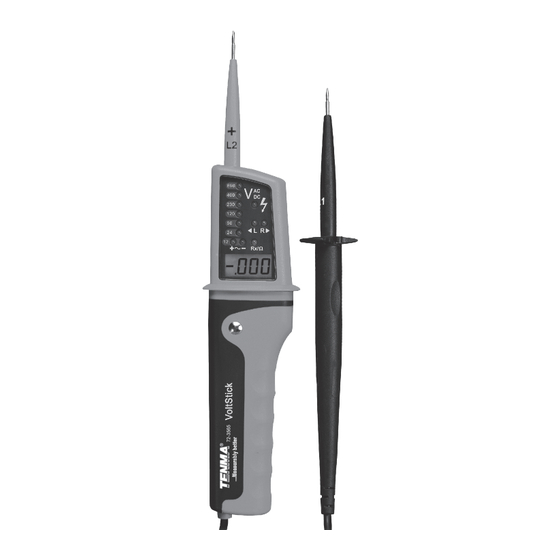

PRODUCT OVERVIEW 1. Test probe (-) L1 2. Test probe (+) L2 3. LEDs for voltage indication 4. LED for single-pole test 5. Right and left LED, phase rotation indication 6. LED for continuity 7. LCD for displaying voltage 8. Contact electrode for double-pole test of phase rotation and single-pole test. -
Page 5: Single-Pole Voltage Detection
• For DC voltage, connect the L2 probe to the positive terminal and L1 to the negative terminal. • The voltage is displayed on the LEDs and the LCD. The positive LED is illuminated. • If the polarity is reversed the buzzer will sound and the negative LED will illuminate. -
Page 6: Phase Rotation Test
PHASE ROTATION TEST • Perform a function test prior to this test. • This unit can determine the phase rotation within a three-phase supply. • Connect the L2 test probe to the supported phase 2 and the L1 test probe to the supposed phase 1. -
Page 7: Single-Pole Specification
SINGLE-POLE SPECIFICATION Voltage range 100 - 690V AC Frequency range 50 - 400Hz CONTINUITY SPECIFICATION Measuring range 0 - 400kΩ PHASE ROTATION TEST SPECIFICATION Voltage range 100 - 690V Frequency 45 - 65Hz Over voltage protection 690V AC/DC Power supply 2 x 1.5V AAA (LR03) batteries Dimensions 255 x 70 x 28mm... - Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
