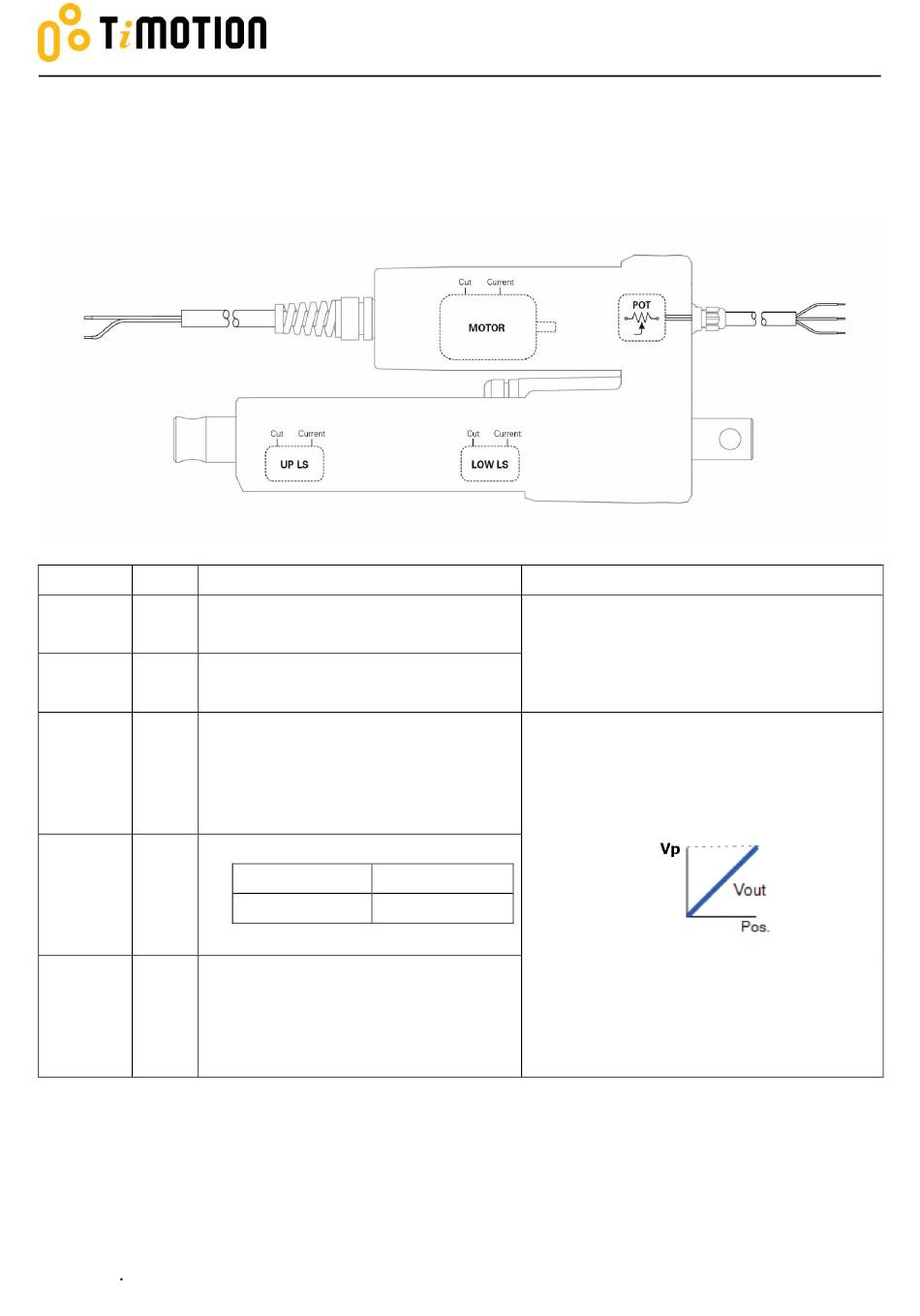

2.3.6 Two limit switches to cut current and POT

The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to
the end of each stroke, and with POT position signal output.
Red (Power)
Black (Power)
Wire AWG Description
Red
14 Connect to Vm+ to extend the actuator
(Power)
Connect to Vm- to retract the actuator
Black
14 Connect to Vm- to extend the actuator
(Power)
Connect to Vm+ to retract the actuator
White
20 POT signal ground.
(POT)
Red
20 POT signal output Vout.
(POT)
Black
20 POT reference voltage input Vp, 5~32V
(POT)
DC (Recommended: 10V).
Version B July 2020
Fully retracted Fully extended
0V Vp
User Manual-MA1_DC Version
Spec
24V version: Input voltage 18~32 V DC
12V version: Input voltage 9~16 V DC
POT output signal type is the voltage in
proportion to the reference voltage input,
which is relative to the position of the
actuator.
The recommended power of the POT input
is <2W.
The brand and spec of the potentiometer
embedded is BouRns, 0~10Kohm, 10 turns.
White (POT)
Red (POT)
Black (POT)
