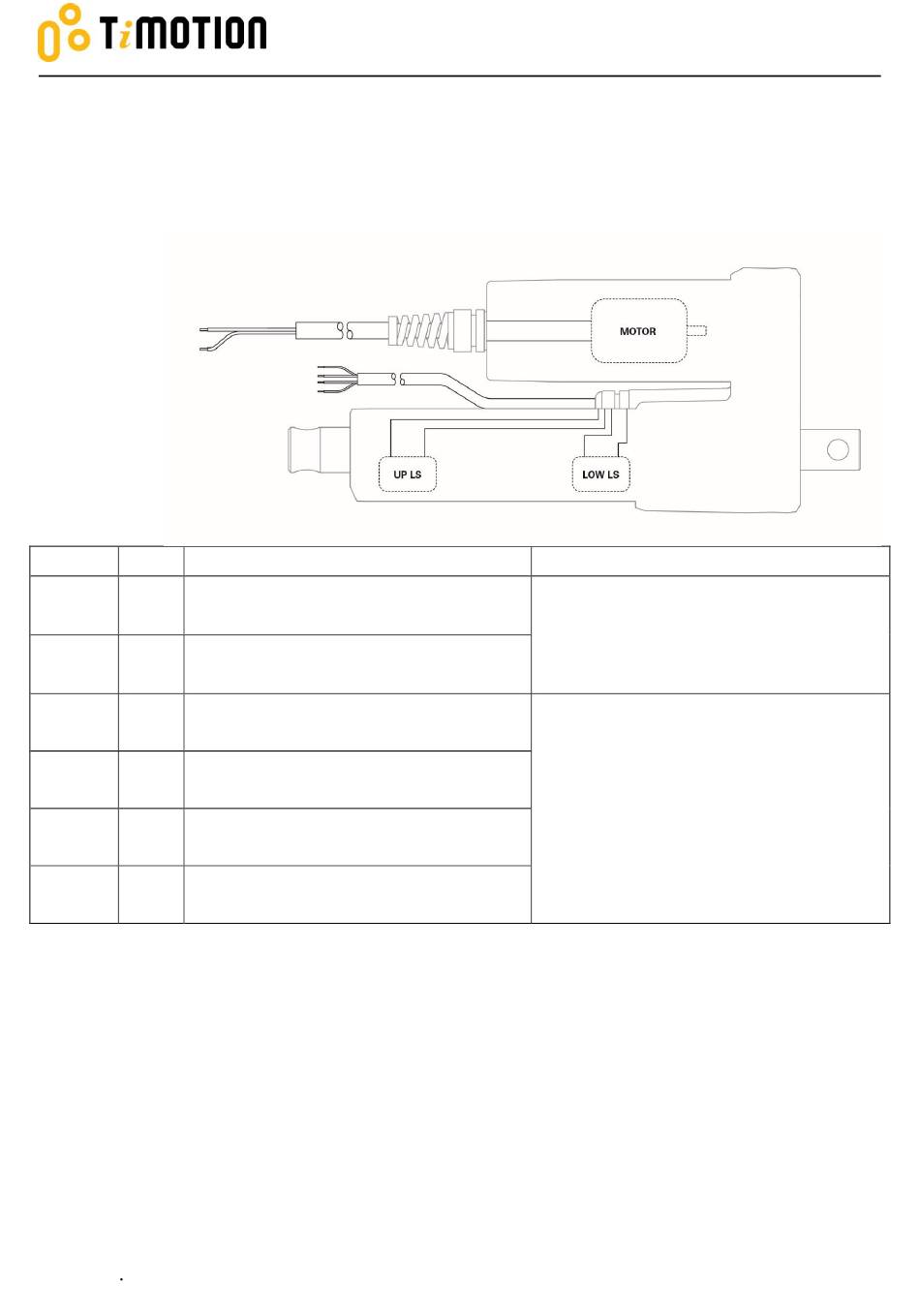

2.3.3 Two limit switches to send signal
The actuator is equipped with two limit switches to send signal when the actuator moves to the end of each
stroke.
Red (Power)
Black (Power)
Wire
AWG
Description
14
Connect to Vm+ to extend the actuator
Red
(Power)
Connect to Vm- to retract the actuator
Black
14
Connect to Vm- to extend the actuator
(Power)
Connect to Vm+ to retract the actuator
Yellow
18
Connect to common pin (C.)
(Signal)
18
Connect to normal closed pin (N.C.)
Green
(Signal)
Red
18
Connect to normal closed pin (N.C.)
(Signal)
Black
18
Connect to common pin (C.)
(Signal)
Version B July 2020
Yellow (Signal)
Green (Signal)
Red (Signal)
Black (Signal)
User Manual-MA1_DC Version
Spec
24V version: Input voltage 18~32 V DC
12V version: Input voltage 9~16 V DC
The signal is potential free and independent
from the motor power circuit.
The signal is short circuit when the actuator
moves to the position where the middle
limit switch is triggered.
Connect the middle limit switch signal with
max 32V, <1A.
14 of 24
