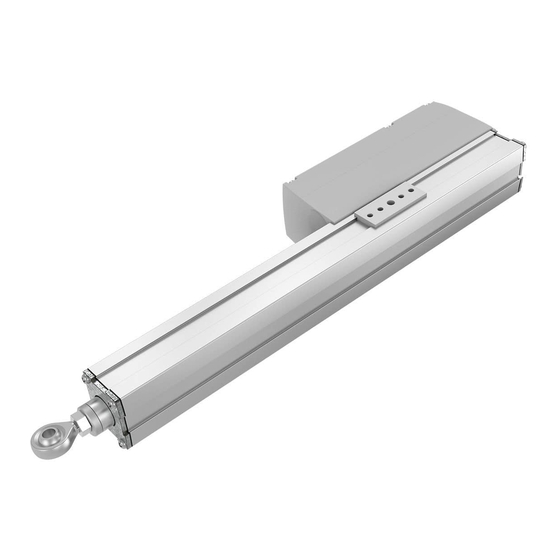

Summary of Contents for Timotion VN1
- Page 1 User Manual-VN1 Version C User Manual Version C July 2020 1 of 23...
-
Page 2: Table Of Contents
User Manual-VN1 Contents Contents ..................................2 1. General ................................. 3 About this manual ................................... 3 Target personnel ..................................3 Warranty ....................................3 Transport and storage ................................3 Packaging ....................................4 Support ...................................... 4 Disclaimer ....................................4 Notification and warnings ..............................4 1.8.1... -
Page 3: General
Target personnel Please allow qualified mechanical and electrical professionals perform all installation, maintenance and replacement of the TiMOTION products. Please keep the products away from people who do not have the required experiences or knowledge of the product. Warranty TiMOTION provides 18 (or 24) months’... -
Page 4: Packaging
For large quantity orders, packaging may vary and TiMOTION reserves the right to change it. Support If any technical support or information is needed for this product, please contact your TiMOTION sales engineer. You can also visit https://www.timotion.com/en for the product or contact information. Disclaimer This user manual has been written based on our current technical knowledge. -
Page 5: Equipment Power Off
User Manual-VN1 Be sure the actuator is connected to a main electricity supply/transformer with the correct voltage, specified on the actuator label. Be sure that the connection bolts are secured safely and can withstand the wear. Stop the actuator immediately if anything unusual is observed. -
Page 6: Installation
User Manual-VN1 2. Installation Mechanical installation 2.1.1 Mounting notice Use solid mounting pins with the proper dimensions and support them at both ends. As shown below, please mount the actuator with the mounting pins of correct dimension and ... -
Page 7: Safety Instructions
User Manual-VN1 2.1.2 Safety Instructions It is important to follow these instructions for the safety of users and operators. These instructions should be kept in a safe place for the entire service life of the products. Risk of crushing and entrapment! Window can close automatically! The integrated load cut-off stops the drive during closing and opening when the drive is overloaded. - Page 8 User Manual-VN1 NEVER connect 24 V DC drives to the 230 V AC main voltages. This could create life threatening injuries. Do not reach into the window rabbet or the operating element (chain or spindle) during installation and operation! Ensure that, based on the installation position and the opening movement of the casement, persons cannot be trapped between the driven part of the window and surrounding fixed components (e.g.
- Page 9 User Manual-VN1 Tilting windows shall be equipped with safety scissors or similar devices to avoid damages and risks of injury for persons through improper installation and operation. The safety scissors must be adjusted to the opening stroke of the drive (see technical data) to avoid blocking. The opening width of the safety scissors must be bigger than the drive stroke.
-
Page 10: Electrical Installation
User Manual-VN1 Electrical installation 2.2.1 Important notice Make sure the cables leading to the motor are rated to handle the maximum current. To reduce the chance of a crushing hazard, we recommend an emergency stop. If you are not using a soft stop on a DC-motor, a short peak of high voltage will be sent towards the ... -
Page 11: Extension Power Cable
2.5 mm2 [AWG 16] 4 - 10 m 4 mm2 [AWG 12] Signal extension cable L3 <10 m AWG 20 >10 m Check with your TiMOTION contact window Power cable 12V DC 24V DC Control Box Signal cable Version C July 2020... -
Page 12: Inrush Current
User Manual-VN1 2.2.3 Inrush current When the actuator starts to work, there is an inrush current to the motor that will be less than 0.2 seconds (up to four times the rated current). Please select a power supply that is able to withstand the inrush current. Also, all contacts, including switches and relays, should be selected with caution. -
Page 13: System Wiring Definition
User Manual-VN1 System wiring definition The optional VN1 T-smart system is integrated with the T-smart PBCA and MCU. All the functionality can be achieved with proper configuration on PGVN. Please refer to the following table that describes the primary (but not limited) system, implying the required system and the relative connections for each pin, signal spec and warnings. -
Page 14: System A: Dc Input- Single Actuator
Stable DC (Following actuator motor voltage) output power supply with sufficient power Switch DPDT DC switch to control the power polarity of motor with sufficient current resistance (check the spec code of VN1 for current info) System Single actuator Wiring illustration... -
Page 15: System C: Ac Input- Single Actuator With Window Sealed Indicator
Power source 100-240VAC power source Switch The SPDT AC switch controls the power polarity of the motor with current resistance (be sure to check the spec code of VN1 for most current information). System Single actuator Indicator Optional window sealed indicator when actuator is fully retracted (Limit switch with NC circuit, potential free, max. - Page 16 User Manual-VN1 Wiring illustration SPDT AC switch Black EXT Grey RET Blue N Window sealed indicator *The lamp is off when all actuators are closed Limit switch NC Potential-free *Optional Version C July 2020 16 of 23...
-
Page 17: System D: Ac Input- Simultaneous Operation With Window Sealed Indicator
100-240VAC power source Switch The SPDT AC switch controls the power polarity of the motor with current resistance (be sure to check the spec code of VN1 for most current information). System Multiple actuators operate simultaneously, recommended up to 8. - Page 18 User Manual-VN1 Wiring illustration SPDT AC switch Black EXT Grey RET Blue N Window sealed indicator *The lamp is off when all 8 actuators actuators are closed Limit switch NC Potential-free *Optional Version C July 2020 18 of 23...
-
Page 19: Product Specifications
User Manual-VN1 3. Product specifications 2D drawings A. VN1 DC version without T smart sync function. Cable exit Position 1 Cable exit Position 2 Version C July 2020 19 of 23... -
Page 20: Ordering Key
User Manual-VN1 Ordering key *Please contact your TiMOTION sales engineer for the latest revision ordering key. Version C July 2020 20 of 23... -
Page 21: Troubleshooting
User Manual-VN1 4. Troubleshooting Actuator Symptom Possible cause Action Motor runs but spindle does not Gearing system or spindle Please contact TiMOTION move damaged No motor sound or movement of The actuator is not properly Check the connection to the power... - Page 22 User Manual-VN1 Symptom Possible cause Action Actuators do not move (Under The actuators are not Check the connection to the parallel configuration) properly connected to the power supply and the external power supply control unit (if any) Please make sure the power ...
- Page 23 User Manual-VN1 Symptom Possible cause Action Actuators cannot lift full load Insufficient power supply Check the power supply while the (Under parallel configuration) actuator is running Overload in application Reduce the load Reconnect the cables and set parallel configuration again...
