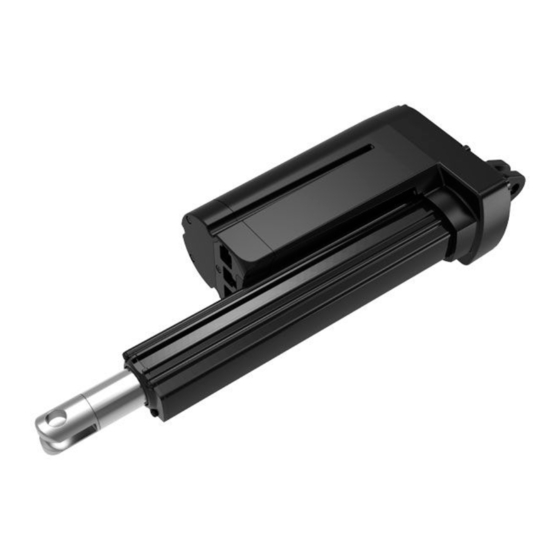

- Page 1 User Manual-MA2T User Manual MA2T Version A August 2021 1 of 25...
-
Page 2: Table Of Contents
User Manual-MA2T Contents Contents ..................................2 Glossary ..................................3 1. General ................................. 4 About this manual ................................... 4 Target Personnel ..................................4 Warranty ....................................4 Transport and storage ................................4 Packaging ....................................5 Support ...................................... 5 Disclaimer ....................................5 Notification and warnings ..............................5 Mounting/dismounting the actuator........................ -
Page 3: Glossary
User Manual-MA2T Glossary The following terms and acronyms are being used in this manual. VDC+: The positive pole of power input. VDC-: The negative pole of power input. RPM: Number of turns per minute. AWG: American wiring gauge. -
Page 4: General
Target Personnel Please allow qualified mechanical and electrical professionals to perform all installation, maintenance and replacement of the TiMOTION products. Please keep the products away from people who do not have the required experiences or knowledge of the product. Warranty In general, TiMOTION provides a 24-month warranty on Industrial Motion actuators based on the manufacturing date. -
Page 5: Packaging
TiMOTION reserves the right to change it. Support If any technical support or information is needed for this product, please contact your TiMOTION sales engineer. You can also visit https://www.TiMOTION.com/en for the product or contact information. -
Page 6: Equipment Power Off
User Manual-MA2T Be sure that the connection bolts are secured safely and can withstand the wear. Stop the actuator immediately if anything unusual is observed. Ensure there is no side load present on the actuator. Only use the actuator within the specified working limits. -
Page 7: Installation
User Manual-MA2T 2. Installation Mechanical installation Mounting notice Use solid mounting pins with the proper dimension and support them at both ends. Note Correct Wrong Please mount the actuator with the mounting pins of correct dimension and without threaded at both ends of the attachments. -
Page 8: Manual Drive Operation
User Manual-MA2T Manual drive operation In case of a power failure, a manual hand crank can be used. Before performing, the power supply needs to be disconnected. When mounting the actuator, ensure there is enough space between the rear adapter and any objects. -
Page 9: Outer Tube Reed Sensor Adjustment
User Manual-MA2T Outer tube reed sensor adjustment The external limit switches are mounted in the two slots at the side of the cover tube. Use the 2.5mm Allen key inner hexagon to position and lock the reed sensor. ... -
Page 10: Electrical Installation
User Manual-MA2T Electrical installation Important notice Make sure the leads/cables leading to the motor are rated to handle the maximum current. To reduce the chance of a crushing hazard, we recommend an emergency stop. If you are not using soft stop on a DC-motor, a short peak of high voltage will be sent towards the power ... -
Page 11: Extension Power Cable
AWG 14 Power extension cable L1 4 - 10 m 3.31 mm2 AWG 12 >10 m Check with your TiMOTION contact representative <10 m 0.5 mm2 AWG 20 Signal extension cable L3 >10 m Check with your TiMOTION contact representative... -
Page 12: Inrush Current
Please be sure all contacts, switches, and relays are sized appropriately to handle the inrush current. It is not recommended to configure the hard start setting to the soft start function with the MA2T. PGMA setting with the soft start is not recommended to be set at 0 (zero) seconds. -
Page 13: Wiring Definition
TiMOTION’s sales representatives for more detailed information. In general, the MA2T T-Smart version cable exit can have a maximum of 3 sets with 8 pins, 6 pins, and 2 pins. (2 power wire pins and/or up to 8 signal wire pins and/or up to 6 PGMA & Reed signal wire pins.) -
Page 14: T-Smart
User Manual-MA2T T-Smart The actuator is equipped with T-Smart PCBA, allowing position feedback (Single Hall, Double Hall, PWM, Hall-POT) and EOS feedback to PLC, Reed switch signal output to PLC or up to 8 actuators having synchronized function when actuators extended or retracted. - Page 15 User Manual-MA2T Vm+ output for connecting to external control Input current ≦ 11mA Brown Extend the actuator when short circuit with P3 Red Gray Retract the actuator when short circuit with P3 Red Black Signal ground The signal is potentially free and independent from the motor power circuit.
- Page 16 Reed switch signal output Note: If using a PLC, please contact your TiMOTION sales representative to determine the compatibility of T-Smart capable products with your desired communication protocol (e.g., CAN BUS or J1939). Wire definition of two actuators in synchronized mode.
-
Page 17: Pgma Installation
User Manual-MA2T 3. PGMA Installation Connection Unless the customer requests to ship separately, all cables will be fixed onto the actuator under the default installation procedure. For PGMA settings, it is required to change the short circuit plug or the Reed sensor cable on P2. Either one needs to be replaced by a TAD1 extension cable. -
Page 18: Cable Replacement
With the outer tube reed sensor connected on the short circuit plug by default. All the cables will be tested according to TiMOTION’s factory assembly standard procedure before shipping. Ensure to protect the plugs and pins during the process. -
Page 19: Steps For Cable Replacement
User Manual-MA2T Steps for cable replacement This illustration shows how to replace the default installed P2 short circuit plug with the extension cables for the PGMA setting. Step 1: Unscrew the cover. Step 2: Remove the cover. Step 3: Unplug the short circuit plug. -
Page 20: Power
User Manual-MA2T Power Install the PGMA software on computers and close the program after completing installation. Once the TAD1 extension cable is replaced, connect the TAD1 to the computer, the LED on the TAD1 will constantly shine, indicating a successful connection. -
Page 21: Product Specifications
User Manual-MA2T 4. Product specifications 2D drawings Version A August 2021 21 of 25... -
Page 22: Ordering Key
User Manual-MA2T Ordering key *Please contact your TiMOTION sales engineer for the latest revision ordering key. Version A August 2021 22 of 25... -
Page 23: Troubleshooting
User Manual-MA2T 5. Troubleshooting Please find the table which lists the symptoms, possible causes, and recommended action. If our suggested troubleshooting solutions cannot remedy the problem, please contact your TiMOTION sales representative. Symptom Possible cause Action Motor runs, but spindle does not... - Page 24 User Manual-MA2T PGMA user guide) Current cut-off levels in both directions Symptom Possible cause Action The actuator cannot hold the The load is higher than Reduce the load chosen load specified Actuators do not move (Under The actuators are not Check the connection to the ...
- Page 25 User Manual-MA2T configuration again Symptom Possible cause Action Actuators run in smaller steps Insufficient power supply Check the power supply while the before stopping (Under parallel actuator is running configuration) Connect the actuators to PGMA one at a time and check the following: ...
