2.2.2 Cable
The actuator is supplied with a power cable (with/without signal wire). The standard cable, for industrial
applications, has/have flying leads in the end for the user's equipment connections.
*Please refer to the approval drawing of any customized cable/connector.

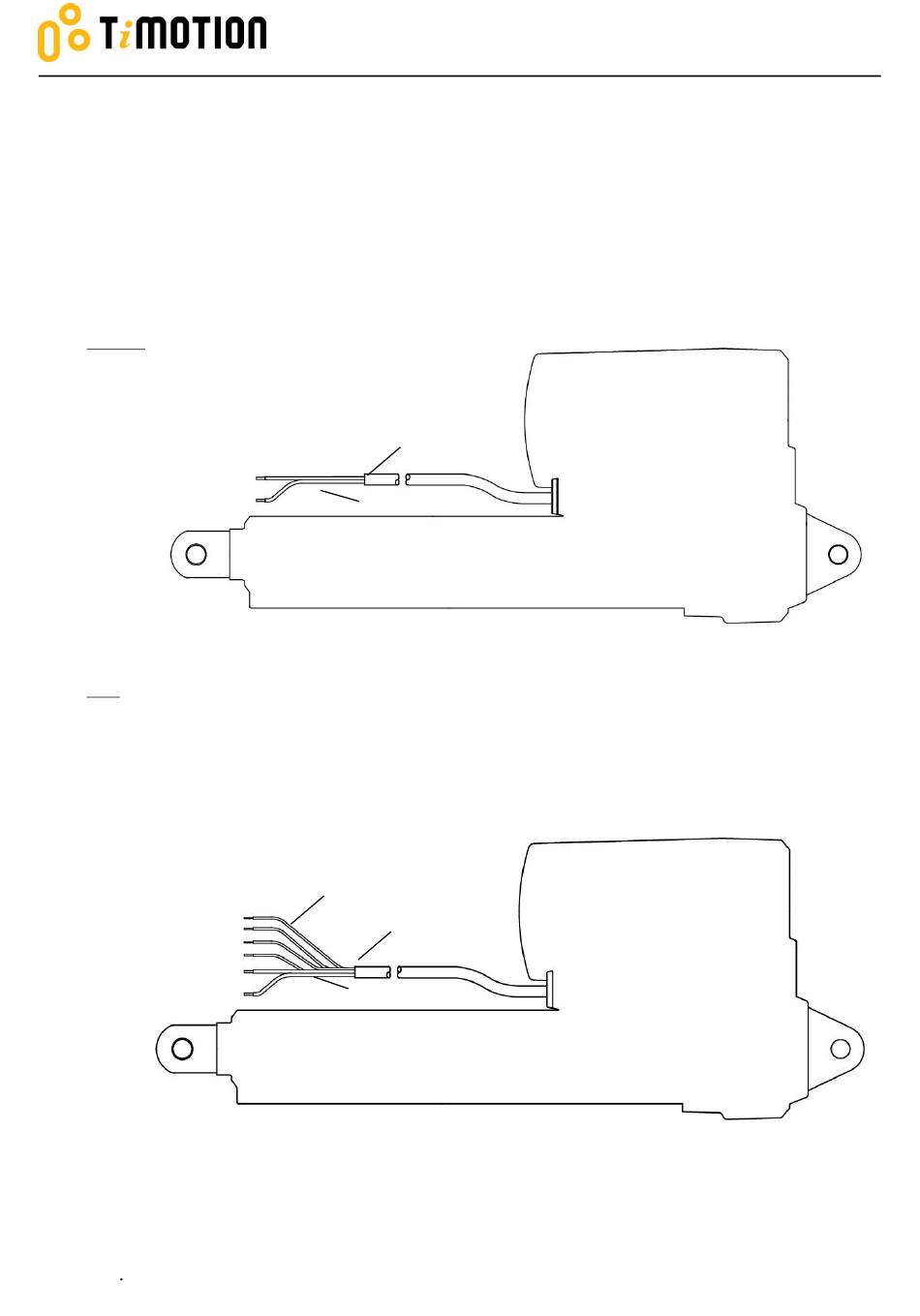

Cable without signal:
φ7.5 mm
Power cable：14AWG
Φ2.7mm
Cable with signal:
Φ1.8mm
Φ8.5 mm
Signal cable：20AWG
Power cable：14AWG
Φ2.7mm
Version B July 2020
