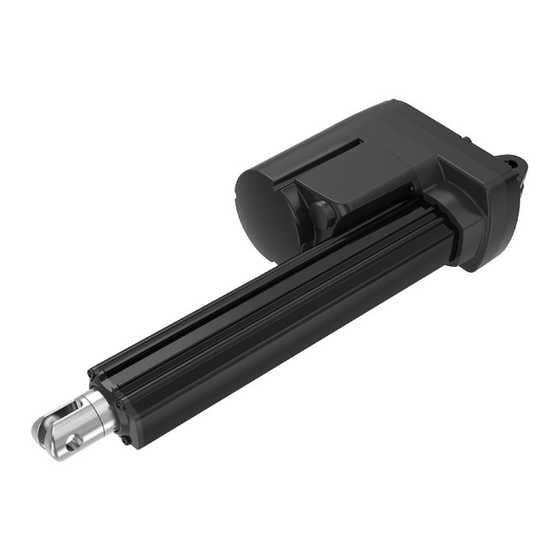

- Page 1 User Manual-MA2 User Manual Version D January 2021 1 of 24...
-
Page 2: Table Of Contents
User Manual-MA2 Contents Contents ..................................2 Glossary ..................................3 1. General ................................. 4 About this manual ................................... 4 Target Personnel ..................................4 Warranty ....................................4 Transport and storage ................................4 Packaging ....................................5 Support ...................................... 5 Disclaimer ....................................5 Notification and warnings ..............................5 1.8.1... -
Page 3: Glossary
User Manual-MA2 Glossary The following terms and acronyms are being used in this manual. Vm+: The positive pole of power input. Vm-: The negative pole of power input. RPM: Number of turns per minute. AWG: American wiring gauge. -
Page 4: General
Target Personnel Please allow qualified mechanical and electrical professionals to perform all installation, maintenance and replacement of the TiMOTION products. Please keep the products away from people who do not have the required experiences or knowledge of the product. Warranty In general, TiMOTION provides a 24-month warranty on Industrial Motion actuators based on the manufacturing date. -
Page 5: Packaging
TiMOTION reserves the right to change it. Support If any technical support or information is needed for this product, please contact your TiMOTION sales engineer. You can also visit https://www.TiMOTION.com/en for the product or contact information. -
Page 6: Equipment Power Off
User Manual-MA2 Be sure that the connection bolts are secured safely and can withstand the wear. Stop the actuator immediately if anything unusual is observed. Ensure there is no side load present on the actuator. Only use the actuator within the specified working limits. -
Page 7: Installation
User Manual-MA2 2. Installation Mechanical installation 2.1.1 Mounting notice Use solid mounting pins with the proper dimension and support them at both ends. Note Correct Wrong Please mount the actuator with the mounting pins of correct dimension and without threaded at both ends of the attachments. -
Page 8: Manual Drive Operation
User Manual-MA2 2.1.2 Manual drive operation In case of a power failure, a manual hand crank can be used. Before performing, the power supply needs to be disconnected. When mounting the actuator, ensure there is enough space between the rear adapter and any objects. -
Page 9: Outer Tube Reed Sensor Adjustment
User Manual-MA2 2.1.3 Outer tube reed sensor adjustment The external limit switches are mounted in the two slots at the side of the cover tube. Use the 2.5mm Allen key inner hexagon to position and lock the reed sensor. -
Page 10: Electrical Installation
User Manual-MA2 Electrical installation 2.2.1 Important notice Make sure the leads/cables leading to the motor are rated to handle the maximum current. To reduce the chance of a crushing hazard, we recommend an emergency stop. If you are not using soft stop on a DC-motor, a short peak of high voltage will be sent towards the power ... -
Page 11: Cable
User Manual-MA2 2.2.2 Cable The actuator is supplied with a power cable (with/without signal wire). The standard cable, for industrial applications, has/have flying leads in the end for the user’s equipment connections. *Please refer to the approved drawing of any customized cable/connector. -
Page 12: Inrush Current
User Manual-MA2 2.2.3 Inrush current When the actuator starts to work, there is an inrush current to the motor that will be less than 0.2 seconds (up to four times the rated current). Please select a power supply that is able to withstand the inrush current. Also, all contacts, including switches and relay, should be chosen with caution. -
Page 13: Wiring Definition
Limitations for limit switches output signals In general, the MA2 cable can have a maximum of 6 pins– (2 power wire pins and/or up-to 4 signal wire pins) The function limitations for limit switches to output signals are shown in the table below:... -
Page 14: Two Limit Switches To Cut The Current (Without Signal Output)
User Manual-MA2 2.3.2 Two limit switches to cut the current (without signal output) The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to the end of each stroke and without any output signal. -
Page 15: Two Limit Switches To Cut The Current And An Additional Limit Switch For Signal Output
User Manual-MA2 2.3.3 Two limit switches to cut the current and an additional limit switch for signal output The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to the end of each stroke, and an additional limit switch sends out the signal at specific stroke positions. -
Page 16: Two Limit Switches To Cut Current And Send Signal
User Manual-MA2 2.3.4 Two limit switches to cut current and send signal The actuator is equipped with two limit switches to cut current of the motor and send signal when the actuator moves to the end of each stroke. Black... -
Page 17: Two Limit Switches And A Single Hall Sensor
User Manual-MA2 2.3.5 Two limit switches and a single Hall sensor The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to the end of each stroke and with a single Hall sensor sending position signal output. -
Page 18: Two Limit Switches And Double Hall Sensors
User Manual-MA2 2.3.6 Two limit switches and double Hall sensors The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to the end of each stroke, and with double Hall sensors sending position signal output. -
Page 19: Two Limit Switches And Pot
User Manual-MA2 2.3.7 Two limit switches and POT The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to the end of each stroke, and with POT position signal output. Black... -
Page 20: Two Limit Switches With Pot To Cut The Current And An Additional Limit Switch For Signal Output
User Manual-MA2 2.3.8 Two limit switches with POT to cut the current and an additional limit switch for signal output The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to the end of each stroke, and an additional limit switch sends out the signal at specific stroke positions, along with POT position signal output. - Page 21 User Manual-MA2 Black POT signal ground. POT output signal type is the voltage in proportion to the reference voltage input, which is relative to the position of the actuator. POT signal output Vout={r(��) 10��(��) ⁄ Fully retracted Fully extended r = 300~500(��)
-
Page 22: Product Specifications
User Manual-MA2 3. Product specifications 2D drawings Version C January 2021 22 of 24... -
Page 23: Ordering Key
User Manual-MA2 Ordering key *Please contact your TiMOTION sales engineer for the latest revision ordering key. Version C January 2021 23 of 24... -
Page 24: Troubleshooting
User Manual-MA2 4. Troubleshooting Please find the table which lists the symptoms, possible cause and recommend action. If the problem could not be solved, please contact your TiMOTION sales engineer. Symptom Possible cause Action Motor runs, but spindle does not...
