Summary of Contents for Timotion TDH6
- Page 1 Hand Control Programming- TDH6 20210811 User Manual Hand Control Programming- TDH6 Version 4 August 2021 1 of 10...
-
Page 2: Table Of Contents
Hand Control Programming- TDH6 Contents Contents ..................................2 Disclaimer .................................. 3 1. User Interface Guide ............................. 4 2. Reset ..................................5 3. Adjusting the Height ............................. 6 4. Setting the Memorized Position ........................... 6 5. Setting the Upper and Lower Height Limit ......................7 6. -
Page 3: Disclaimer
Hand Control Programming- TDH6 Disclaimer This user manual is ONLY for generic TiMOTION products. Manufacturers may have altered product settings causing them to differ from this user manual. Please contact the manufacturer for a revised manual if the product settings are different than this manual. -
Page 4: User Interface Guide

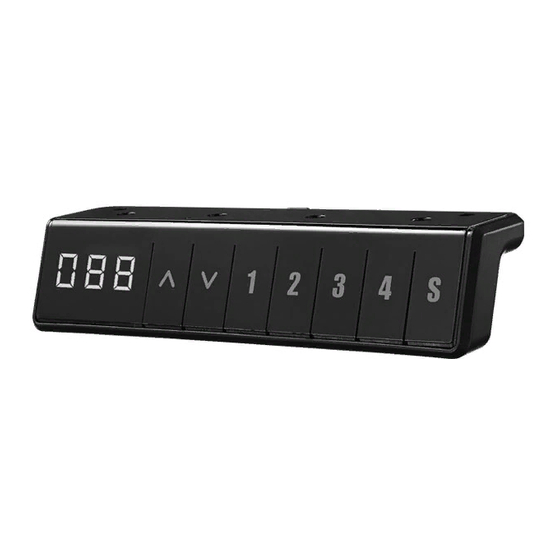

Hand Control Programming- TDH6 1. User Interface Guide 3-digit height display Up and down buttons Memory setting buttons Version 4 August 2021 4 of 10... -
Page 5: Reset
Hand Control Programming- TDH6 2. Reset Simultaneously press for 3 seconds. Continue pressing the buttons until both columns are in the lowest position. When finished with the reset, the control box will make a “beep” sound and the buttons can be released. -
Page 6: Adjusting The Height
Press button until the desk reaches the preferred height. 4. Setting the Memorized Position TDH6 supports a maximum of 4 memory positions. How to memorize a position: Adjust the desk to the desired height. Press M button for three seconds, the display will flash, then press the memory button 1, 2, 3 or 4 you’d like to save. -
Page 7: Setting The Upper And Lower Height Limit
Hand Control Programming- TDH6 5. Setting the Upper and Lower Height Limit Setting the upper height limit: (1) Adjust the desk to the preferred upper height limit. (2) Press buttons together for less than 3 seconds, holding and release button. -
Page 8: Presetting The Desk Starting Height
Hand Control Programming- TDH6 6. Presetting the Desk Starting Height (1) Press button until the desk reaches its lowest position and then release button. Re-press button again for 5 seconds and the digital display will flash for 10 seconds. (2) Adjust the starting height number with the button. -
Page 9: Restore Factory Setting
Hand Control Programming- TDH6 8. Restore Factory Setting (1) Refer to Chapter 2-Reset: after the “beep” sound, press buttons together for 15 seconds, the control box will twice make a “beep” sound, and the digital display will show “---. “... -
Page 10: Power Saving Function - Waking Up The Control
Hand Control Programming- TDH6 10. Power Saving Function - Waking Up the Control The digital display automatically turns off if no buttons are pressed within 25 seconds. Press any button to light up the display again. The system goes into <0.1W standby mode if no buttons are pressed within 30 seconds.
