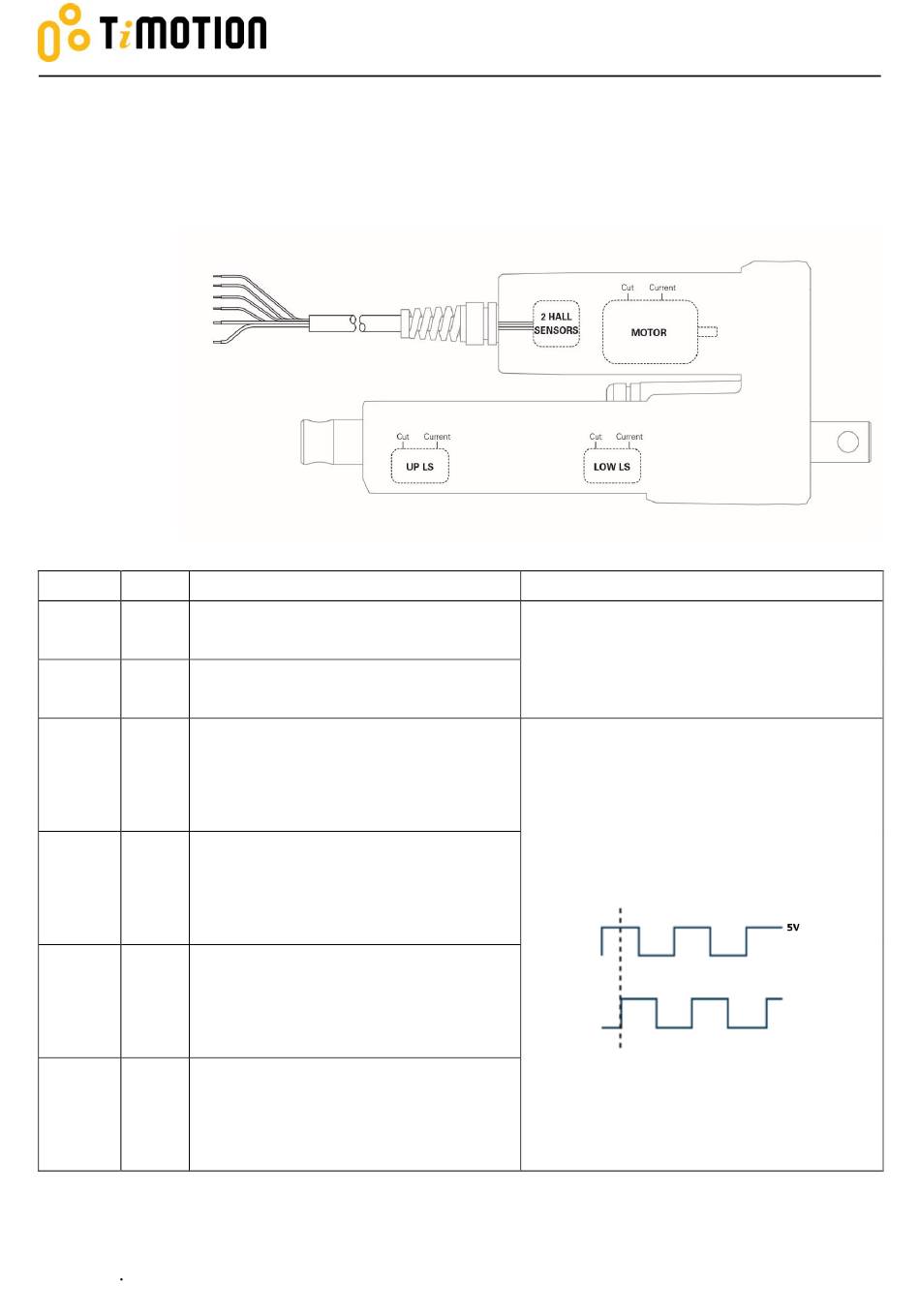

2.3.5 Two limit switches to cut current and double Hall sensors

The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to
the end of each stroke, and with double Hall sensors sending position signal output.
Red (Hall)
White (Hall)
Blue (Hall)
Black (Hall)
Red (Power)
Black (Power)
Wire AWG Description
Red
14 Connect to Vm+ to extend the actuator
(Power)
Connect to Vm- to retract the actuator
Black
14 Connect to Vm- to extend the actuator
(Power)
Connect to Vm+ to retract the actuator
Red
20 +5V DC input signal power for Hall
(Hall)
sensor board.
White
20 Output Hall sensor signal S1 during the
(Hall)
actuator moves.
Blue
20 Output Hall sensor signal S2 during the
(Hall)
actuator moves.
Black
20 Hall sensor signal ground.
(Hall)
Version B July 2020
User Manual-MA1_DC Version
Spec
24V version: Input voltage 18~32 V DC
12V version: Input voltage 9~16 V DC
Hall sensor output signal type is square
wave with Hi voltage 5V and Low voltage 0V,
and with the output current of 0.1A (please
refer to the approval drawing for the
resolution and details).
S1 leads 90 degrees' phase to S2.
S1
S2
Hall sensor circuit is independent to motor
power circuit.
