- Page 1 Hand Control Programming-TDH4 20210811 User Manual Hand Control Programming- TDH4 Version 3 August 2021 1 of 9...
-
Page 2: Table Of Contents
Hand Control Programming-TDH4 Contents Contents ..................................2 Disclaimer .................................. 3 1. User Interface Guide ............................. 4 2. Reset ..................................5 3. Adjusting the Height ............................. 6 4. Setting the Upper and Lower Height Limit ......................6 5. Presetting the Desk Starting Height ........................7 6. -
Page 3: Disclaimer
Hand Control Programming-TDH4 Disclaimer This user manual is ONLY for generic TiMOTION products. Manufacturers may have altered product settings causing them to differ from this user manual. Please contact the manufacturer for a revised manual if the product settings are different than this manual. -
Page 4: User Interface Guide

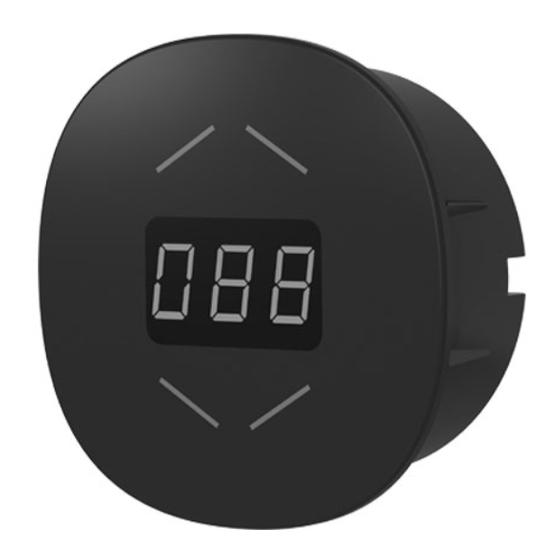

Hand Control Programming-TDH4 1. User Interface Guide Up and down touch buttons 3-digit height display Up and down touch buttons Version 3 August 2021 4 of 9... -
Page 5: Reset
Hand Control Programming-TDH4 2. Reset Simultaneously press for 3 seconds. Continue pressing the buttons until both columns are in the lowest position. When finished with the reset, the control box will make a “beep” sound and the buttons can be released. -
Page 6: Adjusting The Height
Hand Control Programming-TDH4 3. Adjusting the Height Press button until the desk reaches the preferred height. 4. Setting the Upper and Lower Height Limit Setting the upper height limit: (1) Adjust the desk to the preferred upper height limit. (2) Press... -
Page 7: Presetting The Desk Starting Height
Hand Control Programming-TDH4 5. Presetting the Desk Starting Height (1) Press button until the desk reaches its lowest position and then release button. Re-press button again for 5 seconds and the digital display will flash for 10 seconds. (2) Adjust the starting height number with the button. -
Page 8: Error Codes
Hand Control Programming-TDH4 7. Error Codes The digital display shows the error codes below to suggest the issues that users may encounter during the operation. (Note 3) Error code Descriptions Resetting Not reset completely Overuse protection Unbalance protection Anti-collision T-touch Protection... -
Page 9: Power Saving Function - Waking Up The Control
Hand Control Programming-TDH4 8. Power Saving Function - Waking Up the Control The digital display automatically turns off if no buttons are pressed within 25 seconds. Press any button to light up the display again. The system goes into <0.1W standby mode if no buttons are pressed within 30 seconds.
