Summary of Contents for Timotion MA1_AC

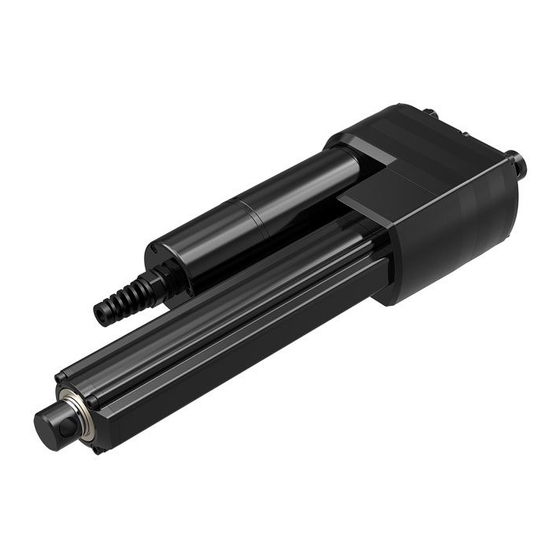

- Page 1 User Manual-MA1_AC Version User Manual MA1_AC Version Version B July 2020 1 of 19...
-
Page 2: Table Of Contents
User Manual-MA1_AC Version Contents Contents ..................................2 Glossary ..................................3 1. General ................................. 4 About this manual ................................... 4 Target Personnel ..................................4 Warranty ....................................4 Transport and storage ................................4 Packaging ....................................5 Support ...................................... 5 Disclaimer ....................................5 Notification and warnings .............................. -
Page 3: Glossary
User Manual-MA1_AC Version Glossary The following terms and acronyms are being used in this manual. Vm+: The positive pole of power input. Vm-: The negative pole of power input. RPM: Number of turns per minute. AWG: American wiring gauge. -
Page 4: General
Target Personnel Please allow qualified mechanical and electrical professionals perform all installation, maintenance and replacement of the TiMOTION products. Please keep the products away from people who do not have the required experiences or knowledge of the product. Warranty In general, TiMOTION provides a 24-month warranty on Industrial Motion actuators based on the manufacturing date. -
Page 5: Packaging
The sample order packaging contains the product and this manual. For large quantity orders, packaging may vary and TiMOTION reserves the right to change it. Support If any technical support or information is needed for this product, please contact your TiMOTION sales engineer. You can also visit https://www.TiMOTION.com/en for the product or contact information. Disclaimer This user manual has been written based on our current technical knowledge. -
Page 6: Operation
User Manual-MA1_AC Version 1.8.2 Operation Be sure the actuator is correctly mounted as indicated in the user instructions. Be sure the equipment can be moved easily over the actuator’s whole working area. Be sure the actuator is connected to a main electricity supply/transformer with the correct voltage, ... -
Page 7: Installation
User Manual-MA1_AC Version 2. Installation Mechanical installation 2.1.1 Mounting notice Use solid mounting pins with the proper dimension and support them at both ends. Note Correct Wrong Please mount the actuator with the mounting pins of correct dimension and without threaded at both ends of the attachments. -
Page 8: Manual Drive Operation
User Manual-MA1_AC Version 2.1.2 Manual drive operation In case of a power failure a manual hand crank can be used. Before performing, the power supply needs to be disconnected. When mounting the actuator, ensure there is enough space between the rear adapter and any objects. -
Page 9: Electrical Installation
User Manual-MA1_AC Version Electrical installation 2.2.1 Important notice Make sure the leads/cables leading to the motor are rated to handle the maximum current. To reduce the chance of a crushing hazard, we recommend an emergency stop. If you are not using soft stop on a DC-motor, a short peak of high voltage will be sent towards the power ... -
Page 10: Cable
User Manual-MA1_AC Version 2.2.2 Cable The actuator is supplied with a power cable (with/without signal wire). The standard cable, for industrial applications, has/have flying leads in the end for the user’s equipment connections. *Please refer to the approval drawing of any customized cable/connector. -
Page 11: Inrush Current
User Manual-MA1_AC Version 2.2.3 Inrush current When the actuator starts to work, there is an inrush current to the motor that will be less than 0.2 seconds (up to four times the rated current). Please select a power supply that is able to withstand the inrush current. Also, all contacts, including switches and relays, should be selected with caution. -
Page 12: Wiring Definition
Wiring definition Below shows the standard wiring definition of the actuator. If your actuator is ordered with customized wiring, please contact TiMOTION sales for detail information. 2.3.1 Types of output signal In general, the MA1-AC cable can have a maximum of 9 pins– (5 power wire pins and/or up to 4 signal wire... -
Page 13: Type A Without Output Signal
User Manual-MA1_AC Version 2.3.2 Type A Without output signal a. Power source： 100-240V AC power source b. Wiring illustration： Power cable: Black Grey Brown Blue Green/Yellow AC Plug Black Retract+ Grey Stretch+ Actuator Brown PCBA+ Blue Neutral Green/Yellow GND Actuator housing... -
Page 14: Type B Pot For Output Signal
User Manual-MA1_AC Version 2.3.3 Type B POT for output signal a. Power source： 100-240V AC power source b. Wiring illustration： Power cable illustration is as the same as 2.3.2 Signal cable illustration is as below Power cable: Black Grey Brown... -
Page 15: Type C Single Hall
User Manual-MA1_AC Version 2.3.4 Type C Single Hall a. Power source 100-240V AC power source b. Wiring illustration Power cable illustration is as the same as 2.3.2 Signal cable illustration is as below Power cable: Black Grey Brown Blue Green/Yellow... -
Page 16: Type D Double Hall
User Manual-MA1_AC Version 2.3.5 Type D Double Hall a. Power source 100-240V AC power source b. Wiring illustration Power cable illustration is as the same as 2.3.2 Signal cable illustration is as below Power cable: Black Grey Brown Blue Green/Yellow... -
Page 17: Product Specifications
User Manual-MA1_AC Version 3. Product specifications 2D drawings 3.1.1 With mechanical brake (Ball Screw’s standard option) 3.1.2 Without mechanical brake Version B July 2020 17 of 19... -
Page 18: Ordering Key
User Manual-MA1_AC Version Ordering key *Please contact your TiMOTION sales engineer for the latest revision ordering key. Version B July 2020 18 of 19... -
Page 19: Troubleshooting
User Manual-MA1_AC Version 4. Troubleshooting Please find the table which lists the symptoms, possible cause and recommend action. If the problem could not be solved, please contact your TiMOTION sales engineer. Symptom Possible cause Action Motor runs but spindle does not...
