Gold Medal 5300 Instruction Manual

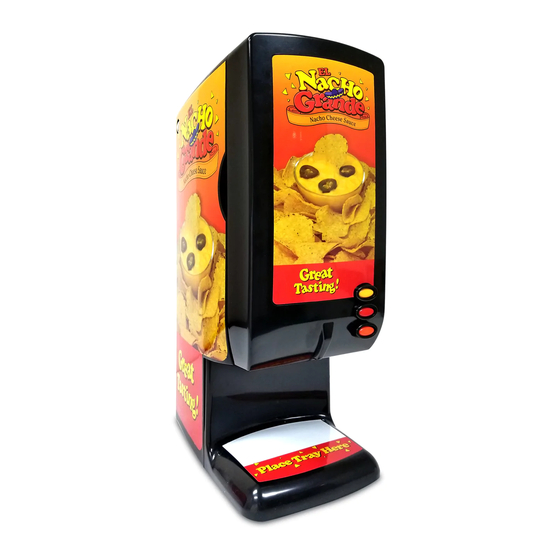

Nacho cheese dispenser and warmer
Hide thumbs
Also See for 5300:
- Instruction manual (20 pages) ,
- Instruction manual (22 pages) ,
- Instruction manual (19 pages)
Related Manuals for Gold Medal 5300
Summary of Contents for Gold Medal 5300

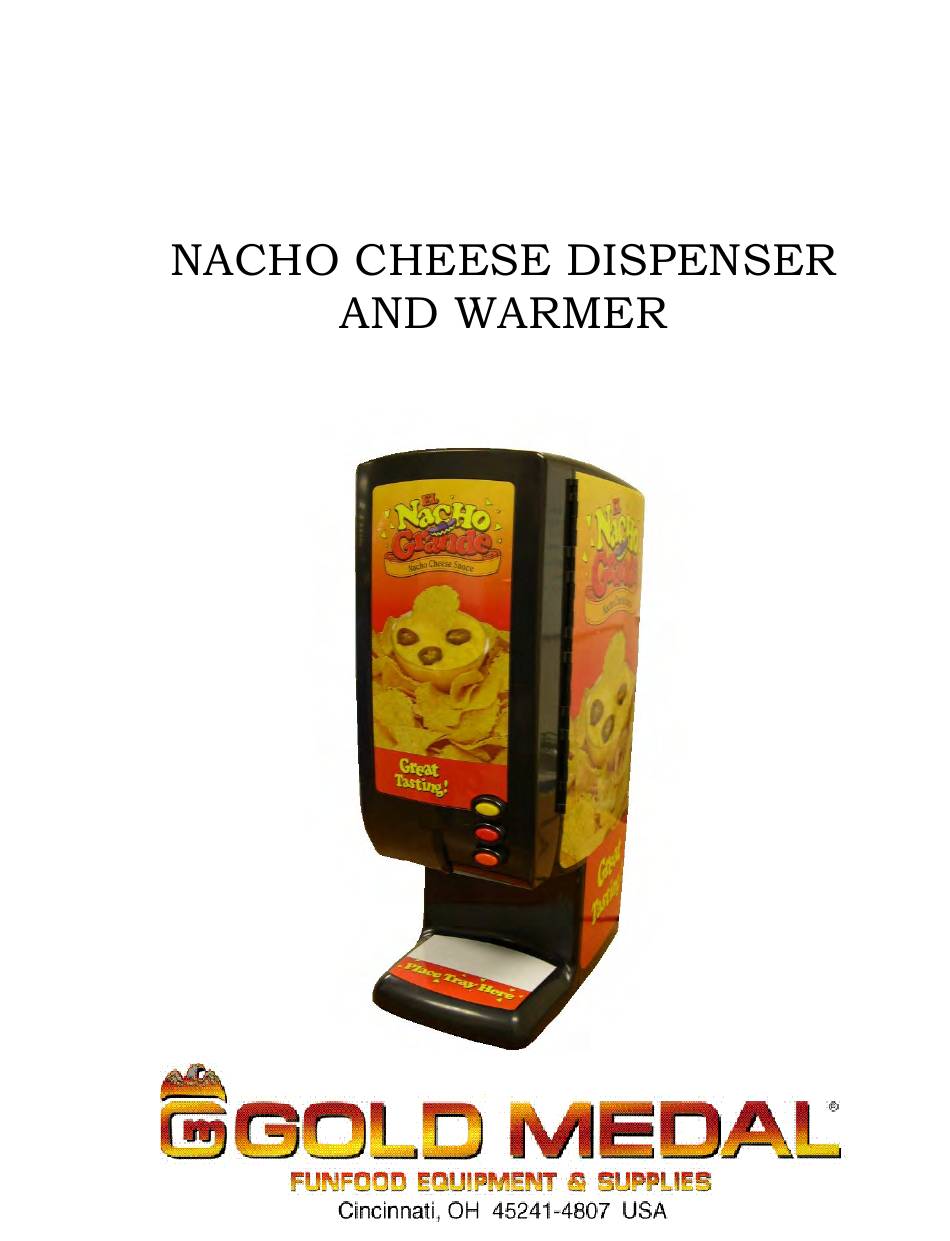

- Page 1 Part No. 36060 Revised APRIL 2008 5300, 5300CH, 5300EX , 5300FN Instruction Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS... -
Page 3: Installation
Any claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Voltage for your warmer is 120 Volt, 60 Cycle, single phase. The 5300 BAG CHEESE DISPENSER will draw a maximum of 2.0 amps. ( 5300EX is 230 volts). Your electrician must furnish sufficient current for the proper operation of your machine. - Page 4 To change Dispensing settings. CHEESE/CHILI DISPENSER HAS THREE BUTTONS FOR DISPENSING PRE-SET AMOUNTS OF PRODUCT. YOU CAN CHANGE EACH BUTTON’S DISPENSE AMOUNT BY FOLLOWING THE INSTRUCTIONS BELOW. (ALSO FOUND IN THE OWNERS MANUAL) STEP 1 – DISPENSE THE PRODUCT INTO THE SERVING CONTAINER OR MEASURING CUP USING THE BOTTOM (ORANGE BUTTON).
- Page 5 NOTE: FOR MANUAL OPERATION (PUSH/HOLD TO DISPENSE) PUT ALL SWITCHES IN THE OFF (UP) POSITION. STEP 4 – REPLACE THE BACK PANEL. DO NOT OVERTIGHTEN SCREWS. To change Dispensing Temperature 1. Un-plug unit 2. Remove – the 6 rear cover screws, and the cover. 3.
-
Page 6: Daily Operation
5. Close tube clamp by rotating cam clockwise. 6. Close door. PRODUCT REMOVAL 1. Open Door 2. Open Tube Clamp 3. Remove Tubing, by pulling from bottom up. 4. Remove empty product bag and tube from the bag cheese dispenser. CAUTION Surfaces on this unit are EXTREMELY HOT during operation, care should be taken when operating this unit. -
Page 7: Maintenance Instructions
Cleaning Guidelines The plastic exterior of the Cheese Dispenser is easy to keep clean. Usually a damp cloth will remove all dirt and grease spots. NEVER USE ABRASIVES. • Turn power switch to the OFF position. Disconnect the unit from power source. •... -
Page 8: Troubleshooting Guide
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 1. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... - Page 9 PARTS LIST – 5300 NACHO CHEESE DISPENSER Model # 5300 Item Part Description Quantity 36025 PCBA MOUNT BOX 36026 REAR ACCESS PANEL 36027 BAG CHEESE TRAY 36028 BAG SUPPORT 36029 SWITCH MOUNT PANEL 36030 PUMP BLOCK RIGHT SWITCH 36031 PUMP BLOCK LEFT...
- Page 12 CABINET WIRING IS #16AWG MGT, CSA STYLE A-24, 26/30 STRAND TYPE A NICKLE WIRING DIAGRAM FOR 5554 PIZZA OVEN...
-
Page 15: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
