Summary of Contents for Gold Medal 5888
- Page 1 Instruction Manual Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2022 Gold Medal Products Co. Part No. 110010...
-
Page 2: Table Of Contents
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with this Unit ........................... 5 Setup ................................... -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Unit is a Portion Pak Cheese Warmer. Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions

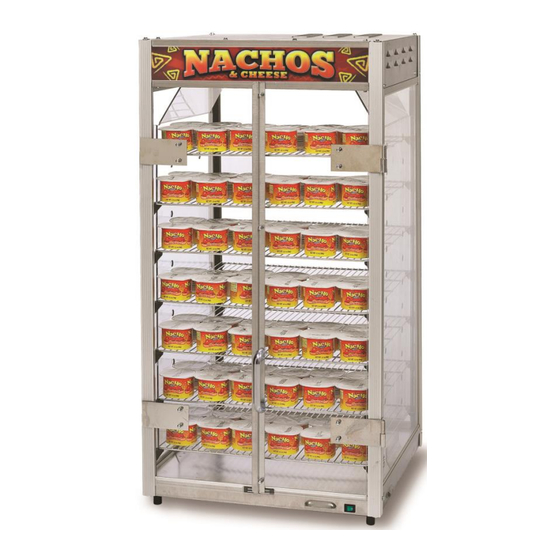

/ temperature control for safety foods. 5588 (100): Tall Warmer with Nachos sign, and a heated bottom pan. 5888 (100): Tall Warmer with Hot ‘n Fresh sign, no bottom pan element. Items Included with this Unit... - Page 6 Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) 5. Install racks—make sure the rack sits on the shelf support for each corner post. 6. After setup, unit should be cleaned prior to use (see Care and Cleaning section).
-
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Controls And Their Functions
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Controls and Their Functions POWER SWITCH Two position, lighted rocker switch - provides power to the lighting and to the heat element(s). The green light ON indicates power to unit. -
Page 9: Care And Cleaning
SLIGHTLY dampened with soap and water, then wipe again to remove any remaining cleaner). Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No. -
Page 10: The Following Sections Are For Qualified Service Personnel Only
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 11: Ordering Spare Parts
Web Page: gmpopcorn.com Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front and Side Glass: 30”... -
Page 12: Cabinet Exterior - Parts Breakdown
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Cabinet Exterior – Parts Breakdown Top Cover See Lighting and Sign section. Cover Fastener *Note: See next page *See Note for hinge parts. 8, 9 10, 11... -
Page 13: Door Hardware Kits - Individual Component Breakdown
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Cabinet Exterior – Parts List Part Number Item Part Description 5588-00-100 5888-00-100 5588-01-100 5888-01-100 TOP COVER SS 74777 74777 74777 74777 8-32 X 5/8 TYPE 23 HX HD (fastens top cover) -
Page 14: Cabinet Interior - Front View
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Cabinet Interior – Front View 2, 3 4, 2 Dial Thermometer (provided with 5888 Series only) 5888 Series: Power supply located in bottom pan. 5588 Series: Power supply installed in dome interior. -
Page 15: Dome Interior
5588 Series: Power supply installed in dome interior. 5888 Series: Power supply located in bottom pan. Blower Assembly (Interior View) Model 5888 dome interior shown for general parts reference only. Part Number Item Part Description 5588-00-100 5888-00-100 5588-01-100 5888-01-100 BLOWER WRAPPER... -
Page 16: Lighting Components
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Lighting Components 5, 6 Lighting Assembly (Interior View) Part Number Item Part Description 5588-00-100 5888-00-100 5588-01-100 5888-01-100 NACHO SIGN 103080 103080 HOT N FRESH SIGN 103133 103133 BUSHING, SNAP .312 IN... -
Page 17: Wiring Diagram
Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Wiring Diagram Model 5588-00-100 gmpopcorn.com Page 17... - Page 18 Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Model 5888-00-100 gmpopcorn.com Page 18...
- Page 19 Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Model 5588-01-100 gmpopcorn.com Page 19...
- Page 20 Portion Pak Cheese Warmer and Warming Cabinet Model No. 5588 and 5888 (100 Series) Model 5888-01-100 gmpopcorn.com Page 20...
-
Page 21: Warranty
© 2022 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
