Summary of Contents for Gold Medal 5587-00-195
- Page 1 Instruction Manual Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2021 Gold Medal Products Co. Part No. 110300...
-
Page 2: Table Of Contents
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Table of Contents SAFETY PRECAUTIONS ........................... 3 INSTALLATION INSTRUCTIONS ........................5 Inspection of Shipment ............................5 Manual ..................................5 Model Description ..............................5 Items Included with this Unit ........................... 5 Setup ................................... 5 Electrical Requirements ............................. -
Page 3: Safety Precautions

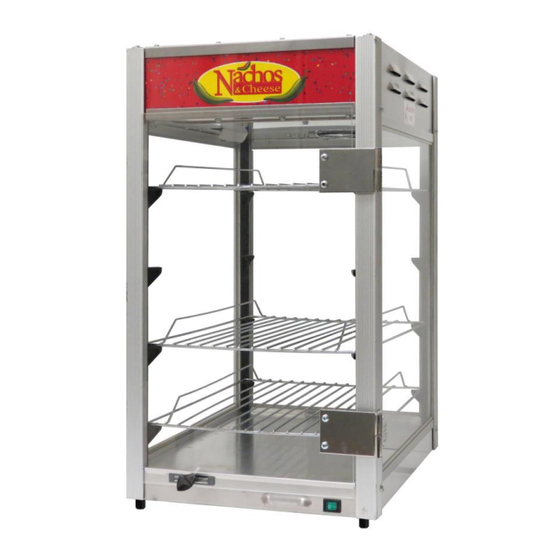

Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 Unit is a Portion Pak Cheese Warmer. Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 6 Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Shelf supports located on each corner post. Glide (pre-installed at the factory) Install Knob with Black Crutch Tip Tee Bolt on door. General images shown for reference only. gmpopcorn.com Page 6...
-
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Operating Instructions
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 OPERATING INSTRUCTIONS Controls and Their Functions POWER SWITCH ON/OFF lighted rocker switch - provides power to the lighting and heat element. The green light ON indicates power to unit. Power Switch General image shown for reference only. -
Page 9: Care And Cleaning
SLIGHTLY dampened with soap and water, then wipe again to remove any remaining cleaner). 4. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No. -
Page 10: The Following Sections Are For Qualified Service Personnel Only
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. -
Page 11: Ordering Spare Parts
Web Page: gmpopcorn.com Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 16 1/2”... -
Page 12: Cabinet Exterior - Front View
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Cabinet Exterior – Front View 5587 See Sign and Lighting Components section. See Corner Post Table below. See Corner Post Table below. See Corner Post Table below. For Glass Panels, see Replacing Glass section. -
Page 13: Cabinet Interior And Bottom View
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Cabinet Interior and Bottom View 5587 9, 10, 11 *CAUTION: If supply cord is damaged, it must be replaced by a special cord or assembly available from Gold Medal Products Co. or its service agent. -
Page 14: Motor Plate Components
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Motor Plate Components See Lighting Components section. Blower Assembly (Interior View) General images shown for parts reference only. Part Number Item Part Description 5587-00-195 5587-01-190 3 INCH PABST FAN 74741 74742... -
Page 15: Sign And Lighting Components
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Sign and Lighting Components 2, 3 To Replace Bulb: Remove screws in Sign Frame Angle, then lift sign out to access bulb. Part Number Item Part Description 5587-00-195 5587-01-190 SIGN FRAME ANGLE... -
Page 16: Wiring Diagram
Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Wiring Diagram Model 5587-00-195 gmpopcorn.com Page 16... - Page 17 Portion Pak Cheese Warmer Model No. 5587-00-195 and 5587-01-190 Model 5587-01-190 gmpopcorn.com Page 17...
-
Page 18: Warranty
© 2021 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
