Summary of Contents for Gold Medal 5030

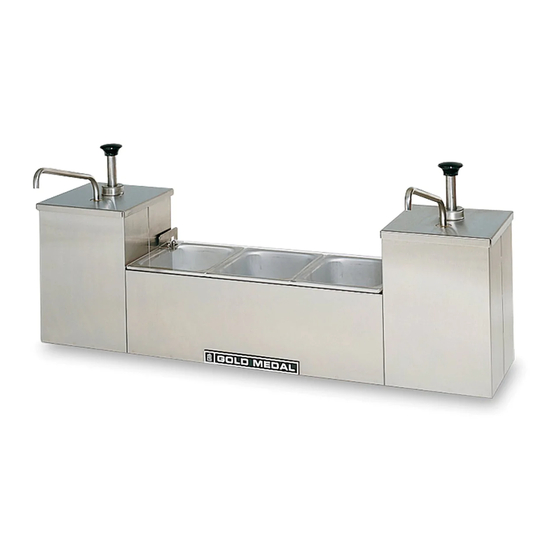

- Page 1 Part No. 38605 Serving Station Instruction Manual Model 5030 Cincinnati, OH 45241-4807 USA...
- Page 2 This machine is NOT to be operated by minors. 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
- Page 3 Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
- Page 4 4. Push the spring stop disc toward the knob and hold plunger rod; loosen knob counter- clockwise. Disassemble plunger assembly in order to wash all components. 5. Rinse all parts with clean hot water. 6. Using a bucket, sanitize all parts with sanitizing solution. MODEL #5030...
- Page 5 Serving Station PUMP PLUNGER ASSEMBLY MODEL #5030...
- Page 6 4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:...
- Page 7 “O” Ring 38250 Check Ball 38249 Plunger Spring 38250 Check Ball 38262 Knob 2-10 38263 Spring Stop 2-11 38601 Plug Assembly 2-12 38265 Retainer Cup 2-13 38280 Knob Filler Washer 2-14 87261 Washer, SAE ¼” 2-15 82766 “O” Ring MODEL #5030...
- Page 8 © 2014 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
