Part No. 36060
5300, 5300CH,
5300EX , 5300FN

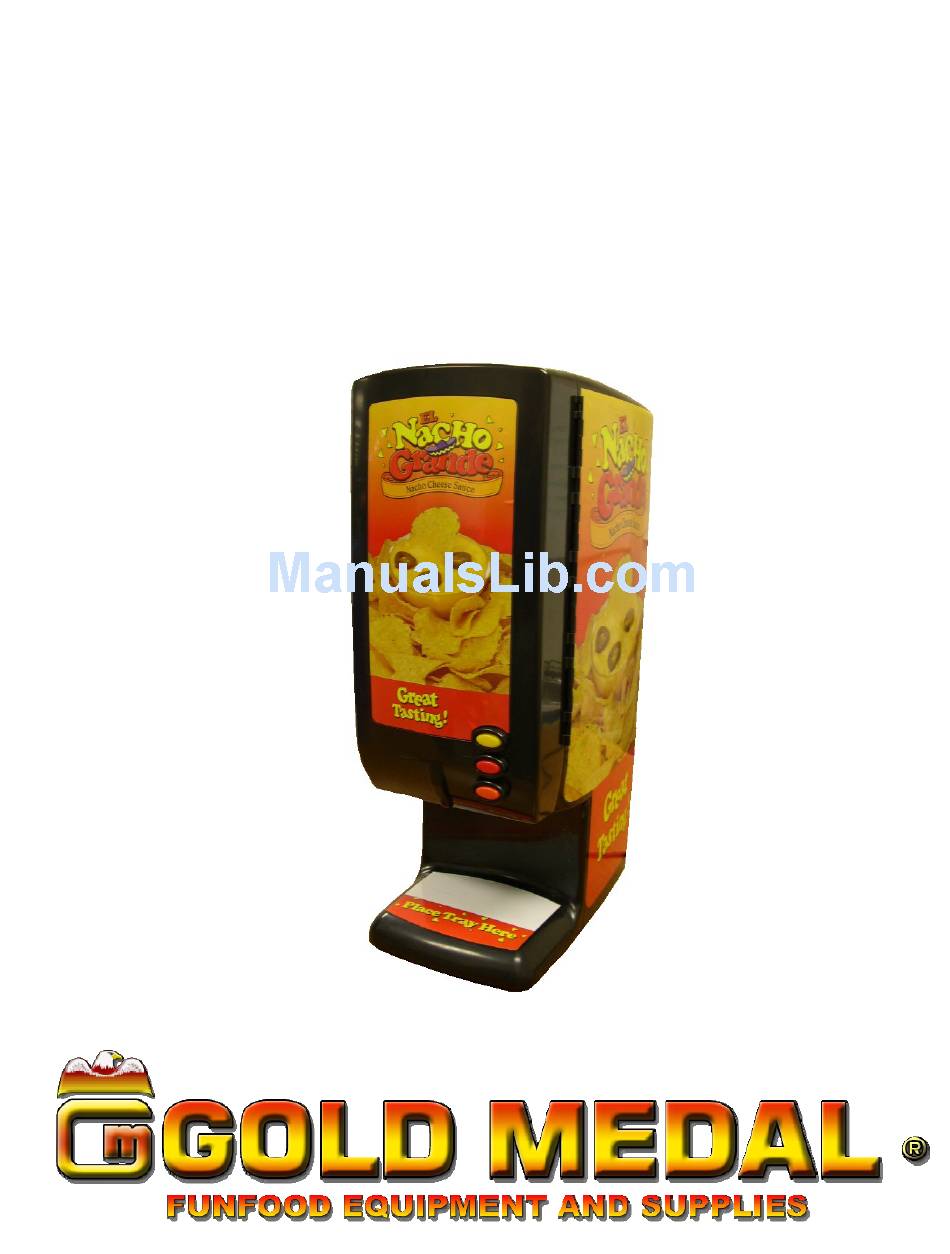

Nacho Cheese Dispenser
And Warmer
Instruction Manual
Cincinnati, OH 45241-4807 USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5300 and is the answer not in the manual?

Questions and answers

Related Manuals for Gold Medal 5300

Summary of Contents for Gold Medal 5300

  • Page 1 Part No. 36060 5300, 5300CH, 5300EX , 5300FN Nacho Cheese Dispenser And Warmer Instruction Manual Cincinnati, OH 45241-4807 USA...

  • Page 2: Safety Precautions

    Nacho Cheese Dispenser and Warmer                                                                                                             SAFETY PRECAUTIONS All Models...

  • Page 3: Installation Instructions

    Inspection of Shipment: Unpack all cartons and check thoroughly for any damage that may have occurred during transit. Damage claims should be filed immediately with the transportation company. Gold Medal Products is not responsible for damage that occurs in transit. Setup: Your new Cheese Dispenser is completely assembled and tested at the factory.
  • Page 4 Nacho Cheese Dispenser and Warmer                                                                                                             Product Installation 1. Remove cap from bagged cheese. Install new tube. Make sure tube is securely seated into new bag of cheese. 2. Open door by pulling on the left side of the cabinet. Open tube clamp by rotating Cam Counterclockwise.
  • Page 5 Nacho Cheese Dispenser and Warmer                                                                                                             Product Removal 1. Open Door 2. Open Tube Clamp 3. Remove Tubing, by pulling from bottom up. 4. Remove empty product bag and tube from the bag cheese dispenser. All Models...

  • Page 6: Operating Instructions

    Nacho Cheese Dispenser and Warmer                                                                                                             Operating Instructions Controls and Their Functions Button Functions (Top to Bottom) Yellow Button – Large portion dispensing Red Button – Small portion dispensing Orange Button – Manual portion dispensing Initial Set-Up for Portion Control* Pre-Heating Pre-heat the unit with product in it for approximately ONE hour.
  • Page 7 Nacho Cheese Dispenser and Warmer                                                                                                             All Models...

  • Page 8: Care And Cleaning

    Nacho Cheese Dispenser and Warmer                                                                                                             CARE AND CLEANING Cleaning Guidelines  Turn power switch to the OFF position. Disconnect the unit from power source.  After unit cools slide out the tray, and clean. Replace tray.  Wipe exterior surface of unit. ...

  • Page 9: Maintenance Instructions

    Nacho Cheese Dispenser and Warmer                                                                                                             MAINTENANCE INSTRUCTIONS All Models...

  • Page 10: Ordering Spare Parts

    Nacho Cheese Dispenser and Warmer                                                                                                             ORDERING SPARE PARTS Always speak to a Gold Medal Products Technical Service Advisor before ordering any parts to help ensure accuracy for your product. Included diagrams may not be the latest information. 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list.
  • Page 11 Nacho Cheese Dispenser and Warmer                                                                                                             To Change Dispensing Settings: Cheese/Chili Dispenser has three buttons for dispensing pre-set amounts of product. You can change each button’s dispense amount by following the instructions below. Step 1 – Dispense the product into the serving container or measuring cup using the bottom (Orange) Button.

  • Page 12: Troubleshooting Guide

    Nacho Cheese Dispenser and Warmer                                                                                                             NOTE: For manual operation (push/hold to dispense) put all switches in the off (up) position. Step 5 – Replace the back panel. Do NOT over tighten the screws. To change Dispensing Temperature With power switch set to OFF position, Un-plug unit. Remove –...
  • Page 13 Nacho Cheese Dispenser and Warmer                                                                                                             PARTS LIST – 5300 NACHO CHEESE DISPENSER Model # 5300 Item Part Description Quantity 36025 PCBA MOUNT BOX 36026 REAR ACCESS PANEL 36028 BAG CHEESE TRAY 36027 BAG SUPPORT 36029 SWITCH MOUNT PANEL 36030...
  • Page 14 Nacho Cheese Dispenser and Warmer                                                                                                             All Models...
  • Page 15 Nacho Cheese Dispenser and Warmer                                                                                                             All Models...
  • Page 16 Nacho Cheese Dispenser and Warmer                                                                                                             CABINET WIRING IS #16AWG MGT, CSA STYLE A-24, 26/30 STRAND TYPE A NICKLE WIRING DIAGRAM FOR 5554 PIZZA OVEN All Models...
  • Page 17 Nacho Cheese Dispenser and Warmer                                                                                                             All Models...

  • Page 18: Electrical Schematic

    Nacho Cheese Dispenser and Warmer                                                                                                             Electrical Schematic All Models...

  • Page 19: Warranty

                                                                                                                WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
