Playcraft Stacked Loop Climber 1224 Installation Instructions

STACKED LOOP CLIMBER
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for 1310 Transition Wall assembly instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate
for the fall height of the equipment or consult you surfacing supply representative.
Figure 1.1
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com

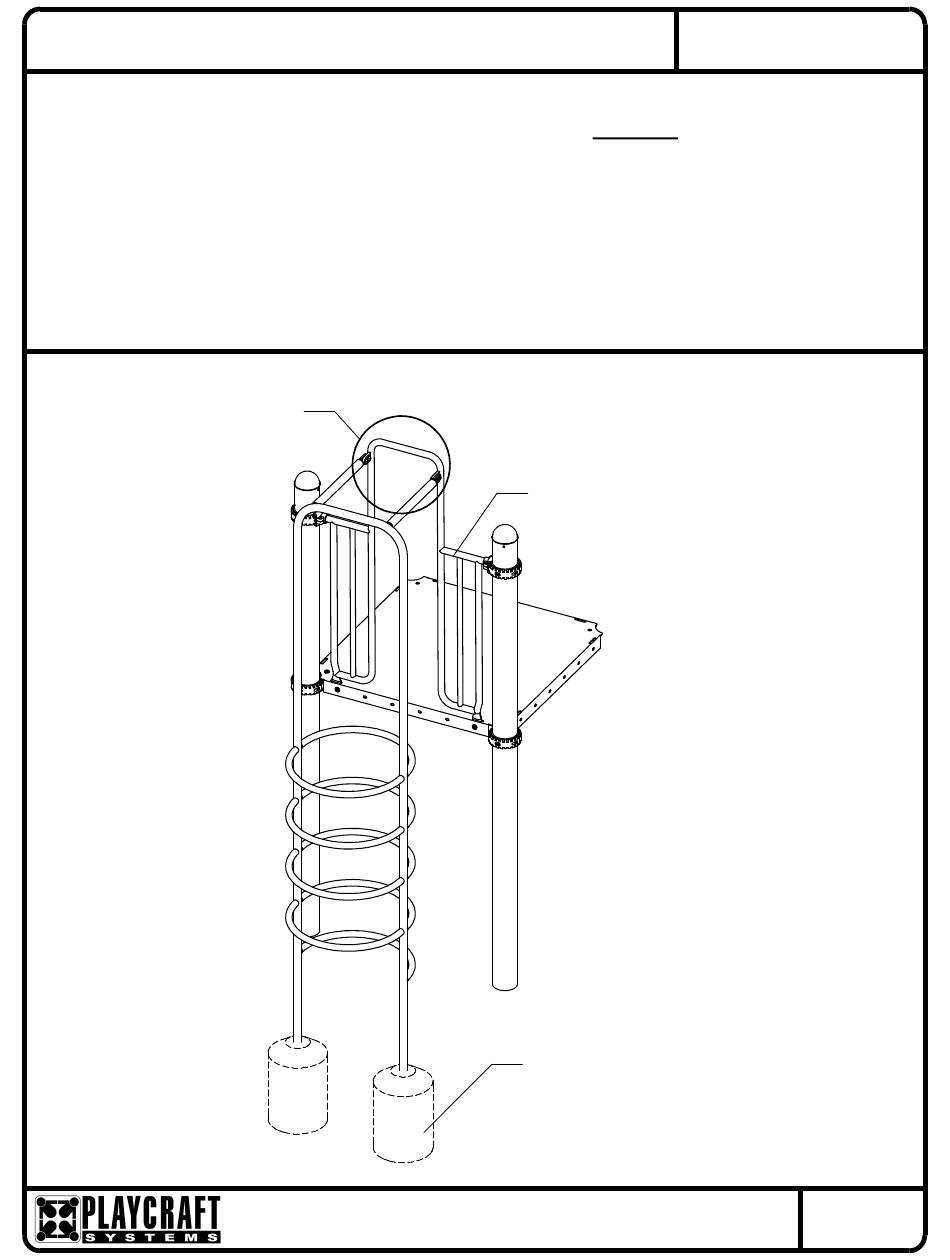

Stacked Loop Climber
See Installation Manual
Section 1310 Transition Wall
See Footing Detail
NOTE: R5 5' deck height shown.
Other configurations will vary slightly,
but will not affect assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1224
Page 1 of 3
FIGURE 1
Rev D
12/16/2009
