Playcraft Easy Access Stairs 24" 1201-2 Installation Instructions

EASY ACCESS STAIRS 24"
INSTALLATION INSTRUCTIONS

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for 09 Collars and 11 Socket Clamps assembly instructions.
(D)
An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate for the fall height of
the equipment or consult you surfacing supply representative.
Figures 1.1
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
See Installation Manual
Sections 09 Collars
and 11 Clamps
Figures 1.2
See Footing Detail
NOTE: R5-1201-2 Configuration
shown. Other configurations will
vary slightly, but will not affect the
assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1201-2
Page 1 of 4

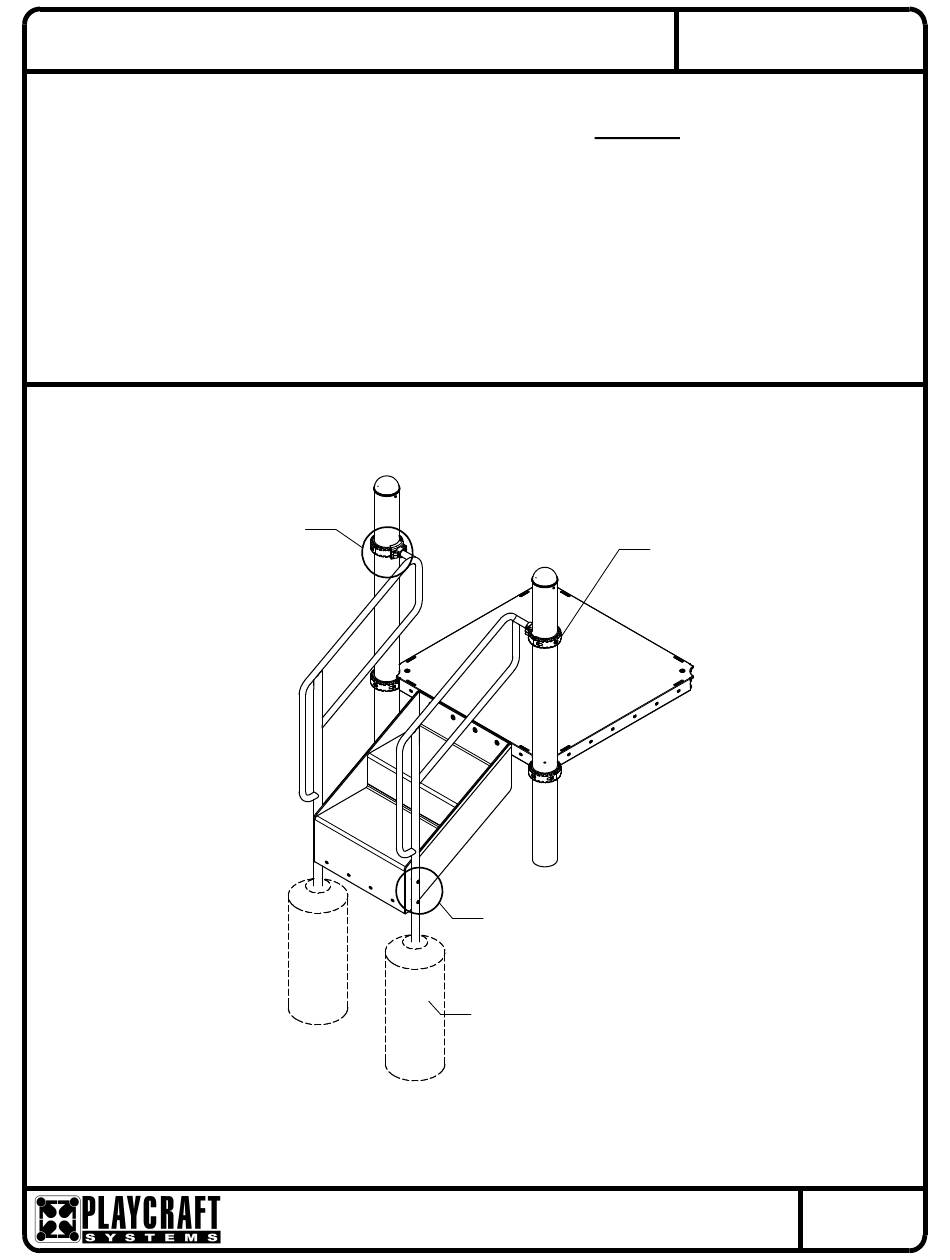

FIGURE 1
Easy Access Stairs 24"
Rev C
1/19/2017
