INSTALLATION INSTRUCTIONS
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) The maximum distance from center of post footing to center of deck face is 21" [533 mm] or 34" [864 mm]
between center of post footings. Additionally, all handles must point towards each other or towards a
conjunctive deck.
(D) An appropriate energy absorbing safety surface is required under and around all playground equipment.
Loose fill protective surfacing is shown only as an example for the purpose of this assembly instruction. Other
surfacing material may vary in thickness and/or compression depths. See free publication - The Handbook for
Public Playground Safety, Publication #325 at www.cpsc.gov for the surfacing appropriate for the fall height of
the equipment or consult your surfacing supply representative.
See Footing Detail
DISC CLIMBER
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com

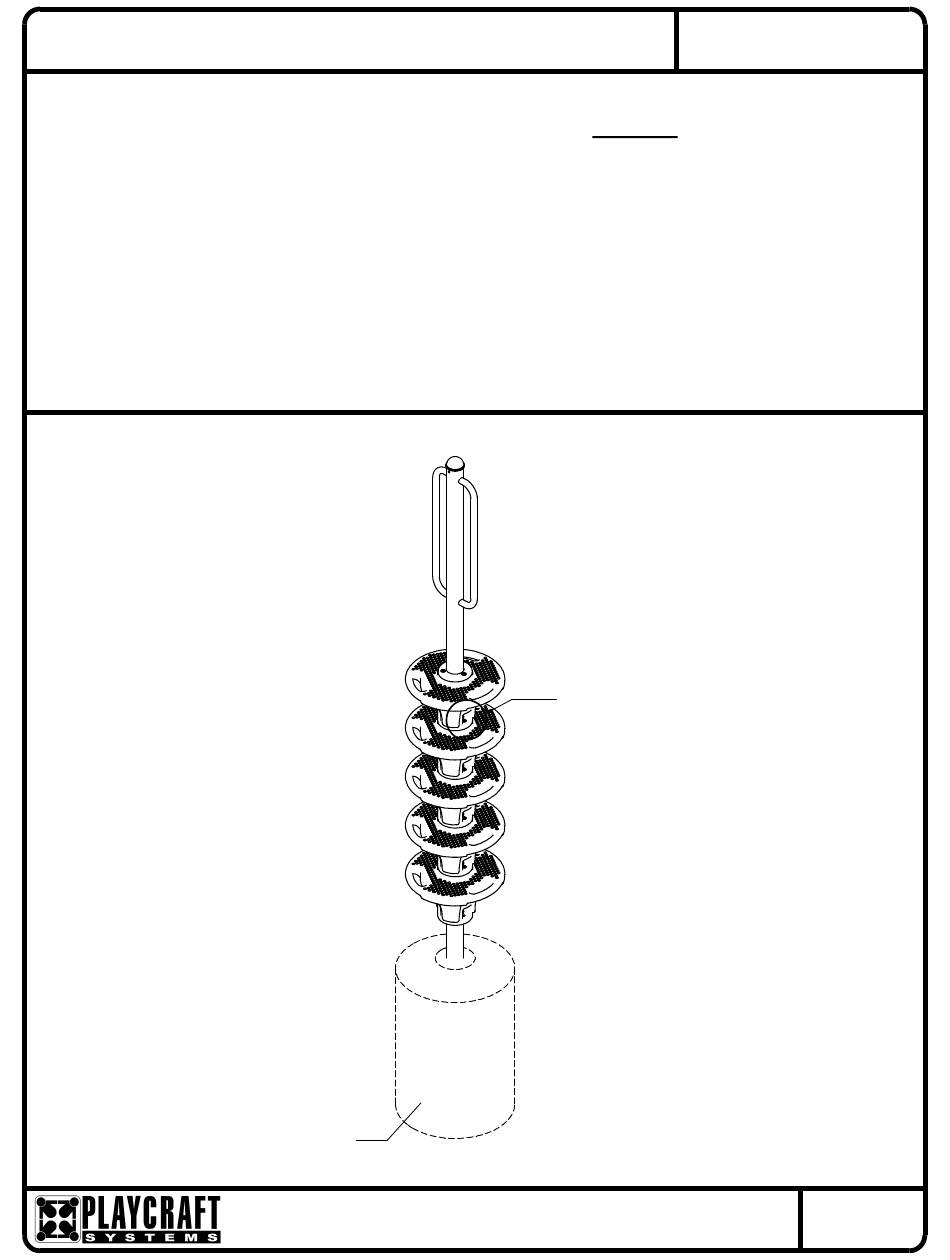

Figures 1.1 & 1.2
NOTE: 5 Step Disc Climber shown.
Other configurations will vary slightly,
but does not affect assembly.
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1233
Page 1 of 5
FIGURE 1
Disc Climber
Rev B
11/13/2014
