DOUBLE SLIDE
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual Section R5-1305 Double Sit Down Bar and R3.5-1305 Double Sit Down Panel.
(D) Exit height must be between 7" [180mm] and 15" [380mm] from finish grade for slides with an elevation
greater than 48". For slide elevations no greater than 48", the exit height shall be no greater than 11".
Exit region must also have a downward slope of 0 to 4° .
(E) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate for
the fall height of the equipment or consult you surfacing supply representative.

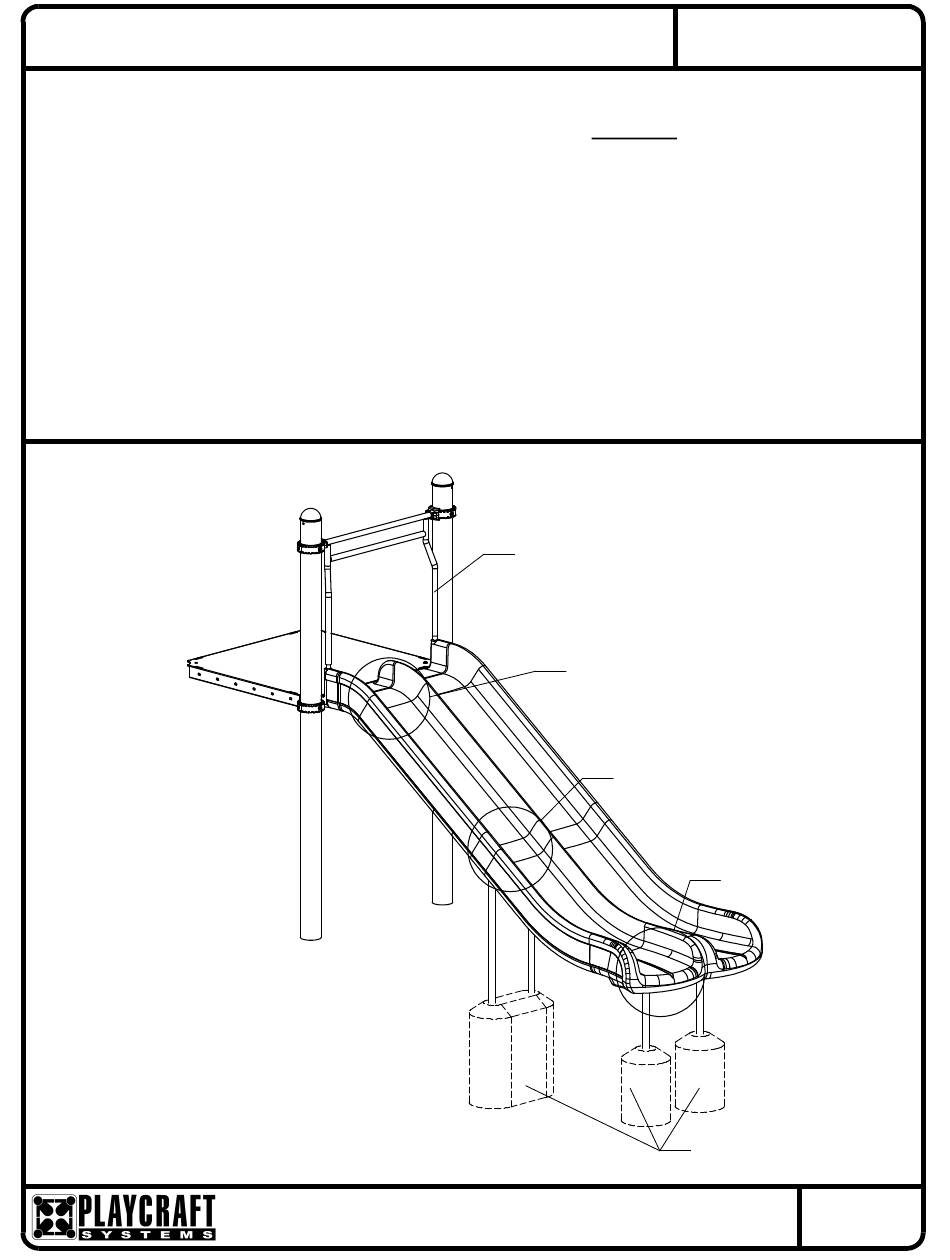

FIGURE 1
60" Double Slide
NOTE: R5 60" Double Slide shown.
R3.5 may vary slightly, but does not
affect assembly instructions.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
See Installation Manual Sections
R5-1305 Double Sit-Down Bar or
R3.5-1305 Double Sit Down Panel
Figures 1.3 and 1.4
Figure 1.2
See Footing Detail
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
1702
Page 1 of 7
Figure 1.1
Rev E
7/18/2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1702 and is the answer not in the manual?

Questions and answers

Summary of Contents for Playcraft 1702

  • Page 1 1702 DOUBLE SLIDE Page 1 of 7 IMPORTANT NOTES: Read First ® (A) Use liquid thread lock (such as Loctite ) with all threaded hardware. Important: Liquid thread lock (prior to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a lubricant during assembly.
  • Page 2 1702 DOUBLE SLIDE Page 2 of 7 Step 1 Refer to corresponding Footing Layout and mark footing hole locations. Dig (2) Ø 12" and (1) 12" x 24" footing hole(s). Refer to Footing Detail for depth and details. Note: For 36" Double Slide dig only (2) Ø 12" footing holes.
  • Page 3 1702 DOUBLE SLIDE Page 3 of 7 R5 Top View - Footing Layouts " 36" Double Slide 1456mm " 466mm " 233mm " 2099mm " 48" Double Slide " 884mm 466mm " 233mm " 2570mm 46" 60" Double Slide 1168mm "...
  • Page 4 1702 DOUBLE SLIDE Page 4 of 7 R3.5 Top View - Footing Layouts " 36" Double Slide 1494mm " 466mm " 233mm " 2137mm 48" Double Slide " " 922mm 466mm " 233mm " 2609mm 60" Double Slide " 1207mm "...
  • Page 5 1702 DOUBLE SLIDE Page 5 of 7 Step 2 Attach Double Slide Leg to the base of the double slide as shown in Figure 1.1. (See Note A) Step 3 Note: This step does not apply to the 36" Double Slide.
  • Page 6: Specifications

    1702 DOUBLE SLIDE Page 6 of 7 36" Double Slide Step 5 R5 Parts List Part # DESCRIPTION QTY. DE-4224 Double Slide 36-42 Fully tighten all fasteners according to the FS-1702 Double Slide Leg "TIGHTENING TORQUE FOR HARDWARE" 9103082-TR Bolt Button Head 3/8" x 1-3/4"...
  • Page 7: Maintenance

    1702 DOUBLE SLIDE Page 7 of 7 60" Double Slide 72" Double Slide R5 Parts List R5 Parts List Part # DESCRIPTION QTY. Part # DESCRIPTION QTY. DE-4806 60" Doulbe Slide DE-4324 72" Double Slide FS-1702 Double Slide Leg FS-1702...
