Playcraft 1249-DDH Manual

GEO-WAVE CLIMBER HORIZONTAL
IMPORTANT NOTES: Read First
(A) Use liquid thread lock (such as Loctite
curing helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving as a
lubricant during assembly.
(B) Do not pour concrete until the equipment is completely assembled, leveled and plumbed. Concrete must be
allowed to cure completely before using the equipment (at least 72 hours).
(C) Refer to Installation Manual for 09 Collars, 11 Socket Clamps, and 1309 Half Wall assembly instructions.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free publication -
The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the surfacing appropriate
for the fall height of the equipment or consult you surfacing supply representative.
NOTE : R5 Configurations shown. R3.5 will vary
slightly, but does not affect the assembly.
®
) with all threaded hardware. Important: Liquid thread lock (prior to
See Installation Manual Sections
09 Collars and 11 Clamps

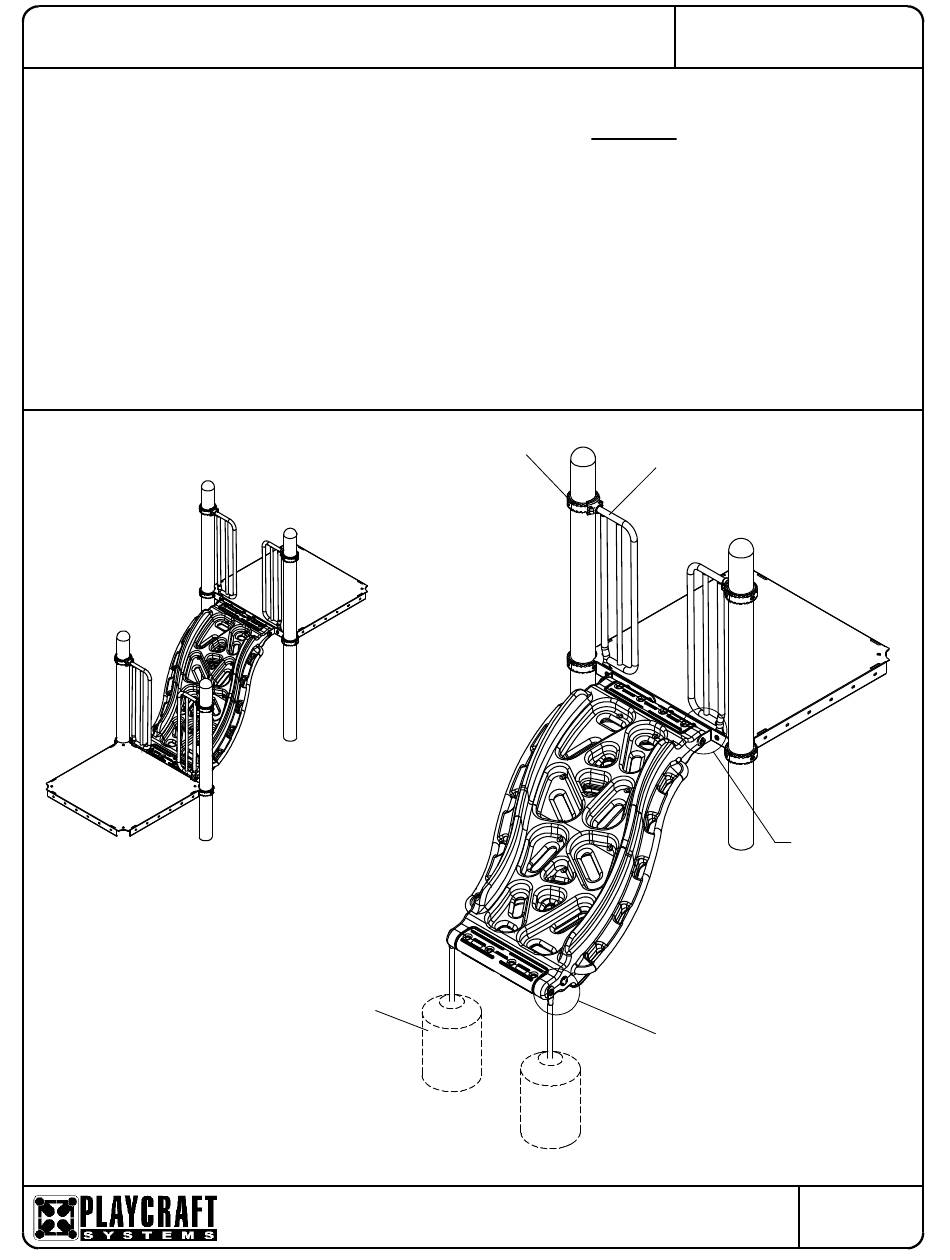

FIGURE 2
Deck to Deck Mount
See Footing Detail
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
1249-DDH \-DGH
See Installation Manual Section
1309 Half Wall
Figures
1.1 & 1.3
Deck to Ground Mount
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Page 1 of 6
Figures
1.2 & 1.4
FIGURE 1
Rev C
