Playcraft Panel 1 Rotomolded LLDPE R5-1601 Assembly Instructions

PANEL - TYPE 1 (Rotomolded LLDPE)

IMPORTANT NOTES: Read First

(A) Use liquid thread lock (such as Loctite
to curing) helps to eliminate the common problem of "thread seizure" in stainless steel hardware by serving
as a lubricant during assembly.
(B) This Assembly requires additional Assembly Pages. See also Assembly Page R5-09 Collars and R5-11
Socket Clamps.
(C) Collar Locations: Deck Mount - Collar measures 39" from top of deck to top of collar. Ground Mount -
Collars measure 33-5/8" from top of lower collar to top of upper collar.
Under Deck Installation: Make sure distance between the bottom of the deck and the top of the
panel(s) is less than 3-1/2" or greater than 9" to avoid head and neck entrapment.
(D) Use appropriate compliant protective surfacing and adjust footing depths accordingly. See free
publication - The Handbook for Public Playground Safety, Publication #325 at www.CPSC.gov for the
surfacing appropriate for the fall height of the equipment or consult you surfacing supply representative.

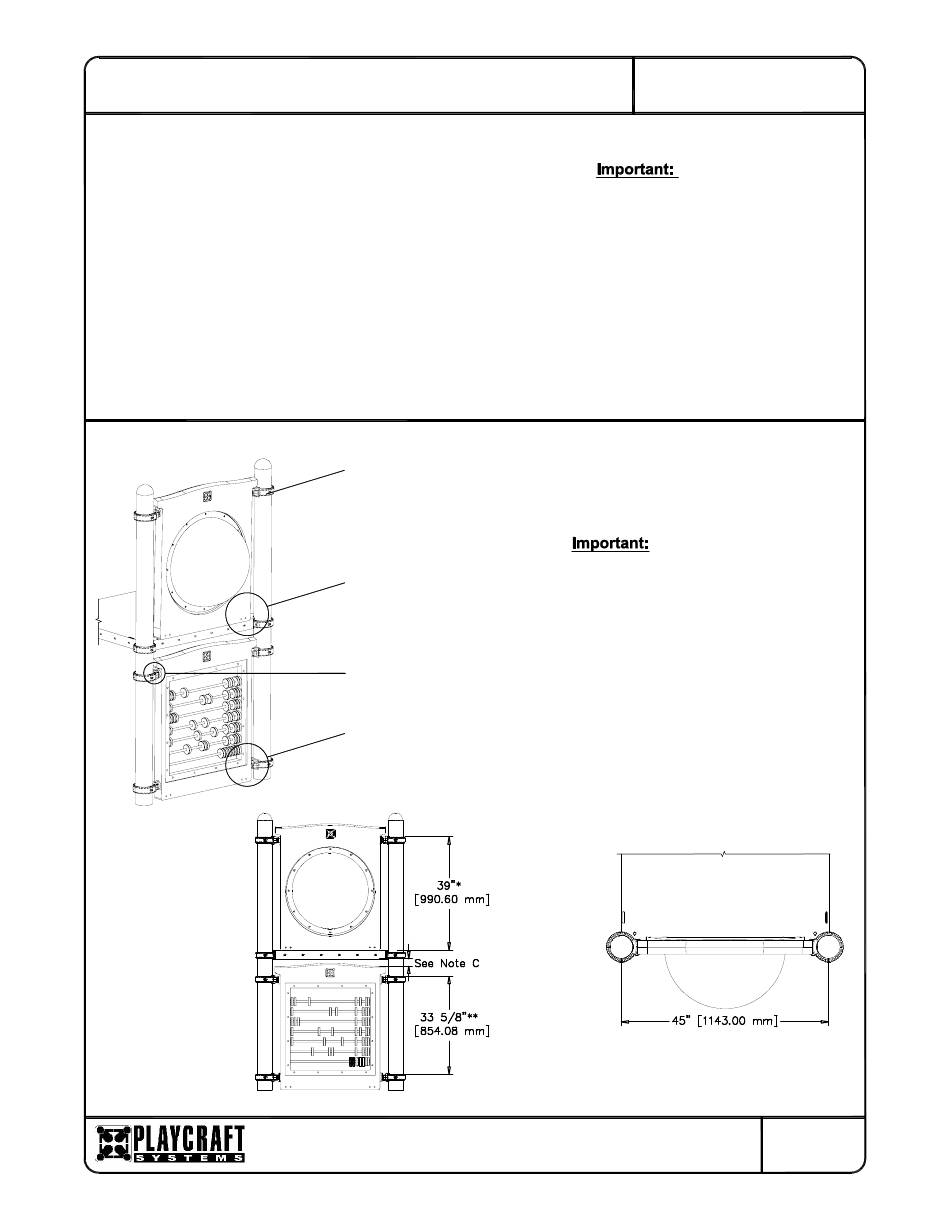

Assembly View

* Dimension
given is from
Top of Deck to
Top of Collar
** Dimension
given is from
Top of Lower
Collar to Top
of Upper Collar
Elevation
Front View
8/ 26/ 2008 3: 01: 55 PM, Rachel
®
) with all threaded hardware.
See Assembly Page R5-09 Collars
and R5-11 Socket Clamps
See Figure 2
Panel to Deck Connection
See Figure 1

Pipe to Panel Assembly

See Figure 3
Pipe to Collar Connection
Manufactured by Krauss Craft, Inc.
www.playcraftsystems.com
R5 - 1601
Page 1 of 3
Liquid thread lock (prior
These assembly
instructions apply to all R5 Round
and Square Rotomolded Panel
Frames that deck and/or collar
mount. Use specific panel
instructions when available if
Installation requires different
hardware and/or panel
configurations other than shown in
these instructions.
DECK
(Top)
Post Spacing
For Customer Service Call
800.333.8519 (U.S.A.) or
541.955.9199 (International)
Top View
Rev G
