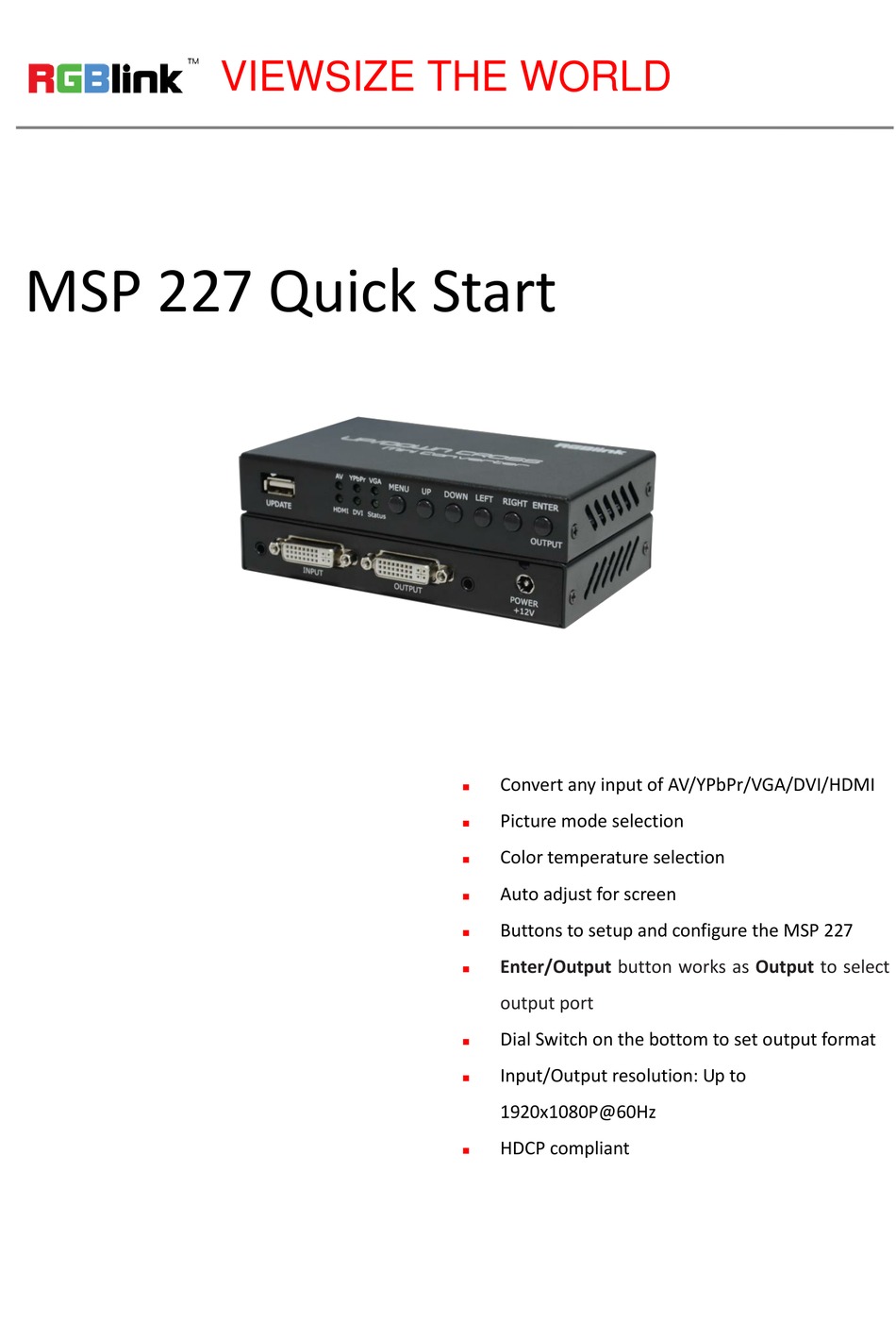

MSP 227 Quick Start
VIEWSIZE THE WORLD
Convert any input of AV/YPbPr/VGA/DVI/HDMI
Picture mode selection
Color temperature selection
Auto adjust for screen
Buttons to setup and configure the MSP 227
Enter/Output button works as Output to select
output port
Dial Switch on the bottom to set output format
Input/Output resolution: Up to
1920x1080P@60Hz
HDCP compliant
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RGBlink MSP 227
Summary of Contents for RGBlink MSP 227
- Page 1 Picture mode selection Color temperature selection Auto adjust for screen Buttons to setup and configure the MSP 227 Enter/Output button works as Output to select output port Dial Switch on the bottom to set output format ...
-
Page 2: Table Of Contents
Using the MENU Button ............................ 7 Understanding the MENU Structure ......................... 8 Using the MENU ..............................9 System Connection ............................11 Contact Information........................... 12 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 3: Product Introduction
Product Introduction MSP 227 converts any input of AV/YPbPr/VGA/DVI/HDMI to any output of AV/YPbPr/VGA/ DVI/HDMI. Buttons on the front panel to setup and configure the MSP 227. When no Menu on the screen, “Enter/Output” button works as Output to select output port, such as YPbPr, VGA, DVI or HDMI. -
Page 4: Packing Configuration
Packing Configuration Adapter AC Power Cord Adapter Adapter DVI-VGA DVI-HDMI DVI-YPbPr/AV Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 5: Hardware Orientation
Hardware Orientation Front Panel Button Instruction USB interface Down button AV/YPbPr/VGA/DVI/HDMI indicator Left button Menu button Right button Up button Confirm button Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 6: Back Panel
Back Panel Output Interface Input Interface DVI Output DVI-I port DVI Input DVI-I port Power Interface Standard 12V/3A Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 7: Bottom Panel And Dial Switch
Dial Switch Used to set the output format. Please refer to the graph instruction on the bottom panel for specific operation. Bottom Panel Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 8: Menu Operation
Using the MENU Button 1. Connect one end of the DVI cable to the DVI output of MSP 227, and the other end to the DVI input of the display, turn on the power for the display and MSP 227. -
Page 9: Understanding The Menu Structure
Understanding the MENU Structure The MENU structure is shown in the figure below: Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn... -
Page 10: Using The Menu
Level 2, Zoom out 2%. Level 3, Zoom out 6%. Zoom Out Level 4, Zoom out 10%. *: Only available when AV output. Note: MSP 227 V1.0 can not support this function. Auto Adjust Enable or disable the auto adjust function. Auto Adjust Screen Auto adjust is available if select “On”... - Page 11 Push the [UP/DOWN] button to increase or decrease the size. Phase Push the [UP/DOWN] button to increase or decrease the phase. Language/菜单语言 Select Chinese or English. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax: 00865925788216 Email: sales@rgblink.com http://www.rgblink.cn...
-
Page 12: System Connection
System Connection Besides standard DVI, the MSP 227 also supports HDMI with DVI-HDMI adapter, VGA with DVI-VGA adapter, YPbPr/AV with DVI-YPbPr adapter. Adapters DVI-HDMI DVI-YPbPr/AV DVI-VGA Connection YPbPr video connection AV Video Connection VGA Video Connection HDMI Connection DVI/VGA/YPbPr/AV Audio Connection Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C... -
Page 13: Contact Information
All video products are designed and tested to the highest quality standard and backed by a full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
