MSP 530
Quick Start
HDCP 2.X
Transfer uncompressed 4K HDMI signals up
to 70m by CAT6 or above category cable
Support 4K@60 4:4:4 Dolby Vision
Support PoH / PoE
Bi-directional IR
Support KVM
Zero latency
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RGBlink MSP530

  • Page 1 MSP 530 Quick Start HDCP 2.X ● Transfer uncompressed 4K HDMI signals up ● to 70m by CAT6 or above category cable Support 4K@60 4:4:4 Dolby Vision ● Support PoH / PoE ● Bi-directional IR ● Support KVM ● Zero latency ●...
  • Page 2: Table Of Contents

    PRODUCT INTRODUCTION............................3 PACKING CONFIGURATION............................4 HARDWARE ORIENTATION............................5 TX Connectors..............................5 RX Connectors..............................6 USE YOUR PRODUCT..............................7 Connection................................7 Transmission Distance............................8 CONTACT INFORMATION.............................9 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 3: Product Introduction

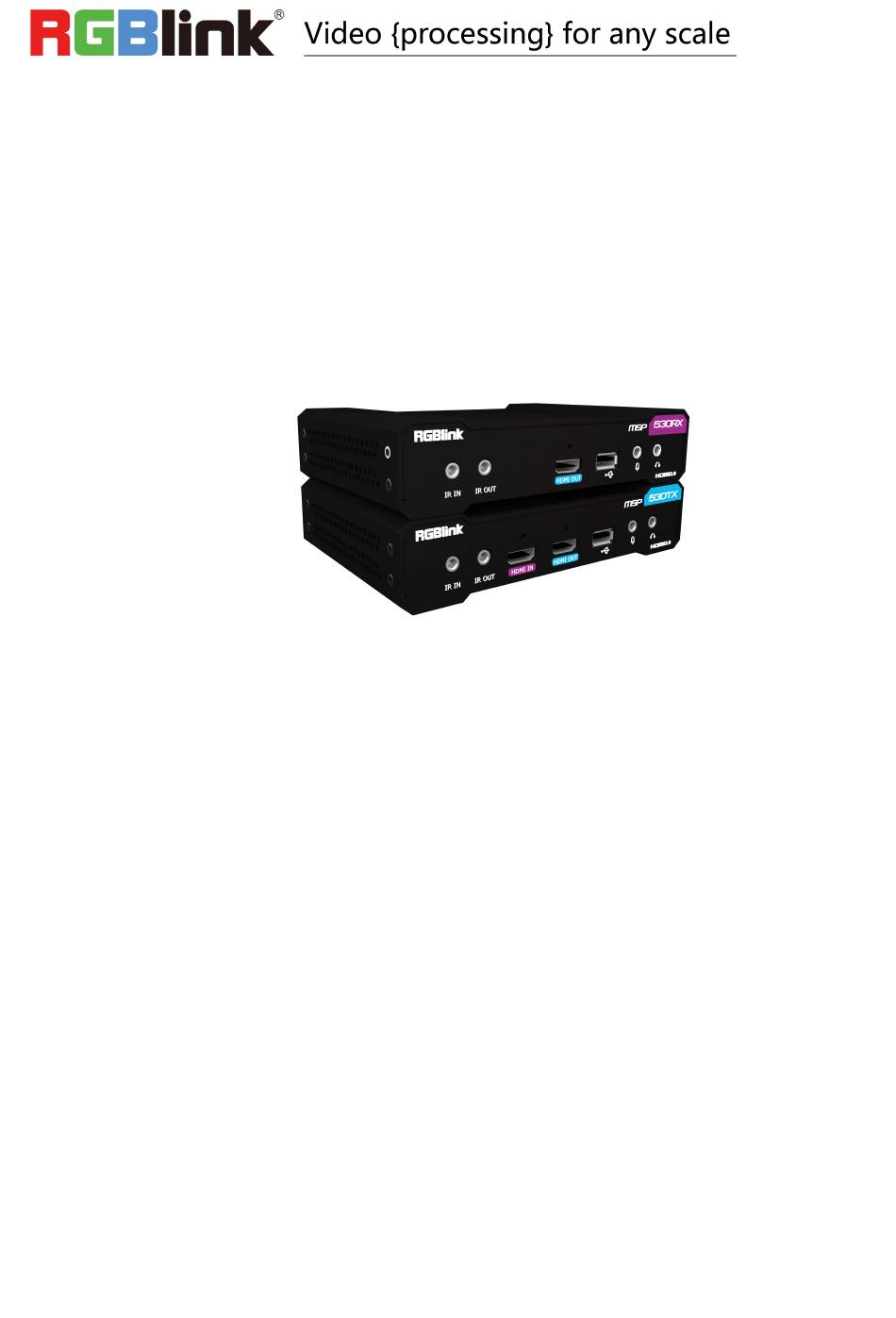

    PRODUCT INTRODUCTION MSP530 HDMI Extender is composed of MSP 530 TX and MSP 530 RX.MSP530 supports resolutions up to 4K*2K@60Hz and 1080p@120Hz,and Dolby Vision format. MSP530 Extender demonstrates RGBlink’s features of HDBaseT technology application.It applies uncompressed digital method to ensure integrity of signal transmission.MSP 530 supports bi-directional IR control and KVM function.It also supports PoE power supply function.
  • Page 4: Packing Configuration

    PACKING CONFIGURATION CAT 6 Cable USB A-B Cable Power Adapter×2 © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 5: Hardware Orientation

    HDMI IN: HDMI-A HDBaseT: RJ45,for signal output PC: USB-A,connect PC or Server CONFIG: RJ45,for communication AUDIO IN: 3.5mm audio jack DC 12V: DC power jack © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 6: Rx Connectors

    HDBaseT: RJ45,for signal output HDMI OUT: HDMI-A PC: USB-A,connect PC or CONFIG: RJ45,for communication Server AUDIO OUT: 3.5mm audio jack DC 12V: DC power jack © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 7: Use Your Product

    2. Connect TV box,PC to TX’s HDMI IN port via HDMI cable,and connect TV/monitor/projector or video processing devices to RX’s HDMI OUT port via HDMI cable. © Xiamen RGBlink Science & Technology Co., Ltd. Ph: +86 592 5771197 | support@rgblink.com...
  • Page 8: Transmission Distance

    4. MSP530 supports KVM.Connects TX’s USB-A port and HDMI port to computer,and connects RX’s USB-A port to mouse and keyboard,then the computer can be controlled remotely. 5. MSP530 supports audio In and out,you can connect TX’s AUDIO IN port to AV amplifier or DVD,and RX’s AUDIO OUT to speakers.
  • Page 9: Contact Information

    All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
