Page 1: User Manual

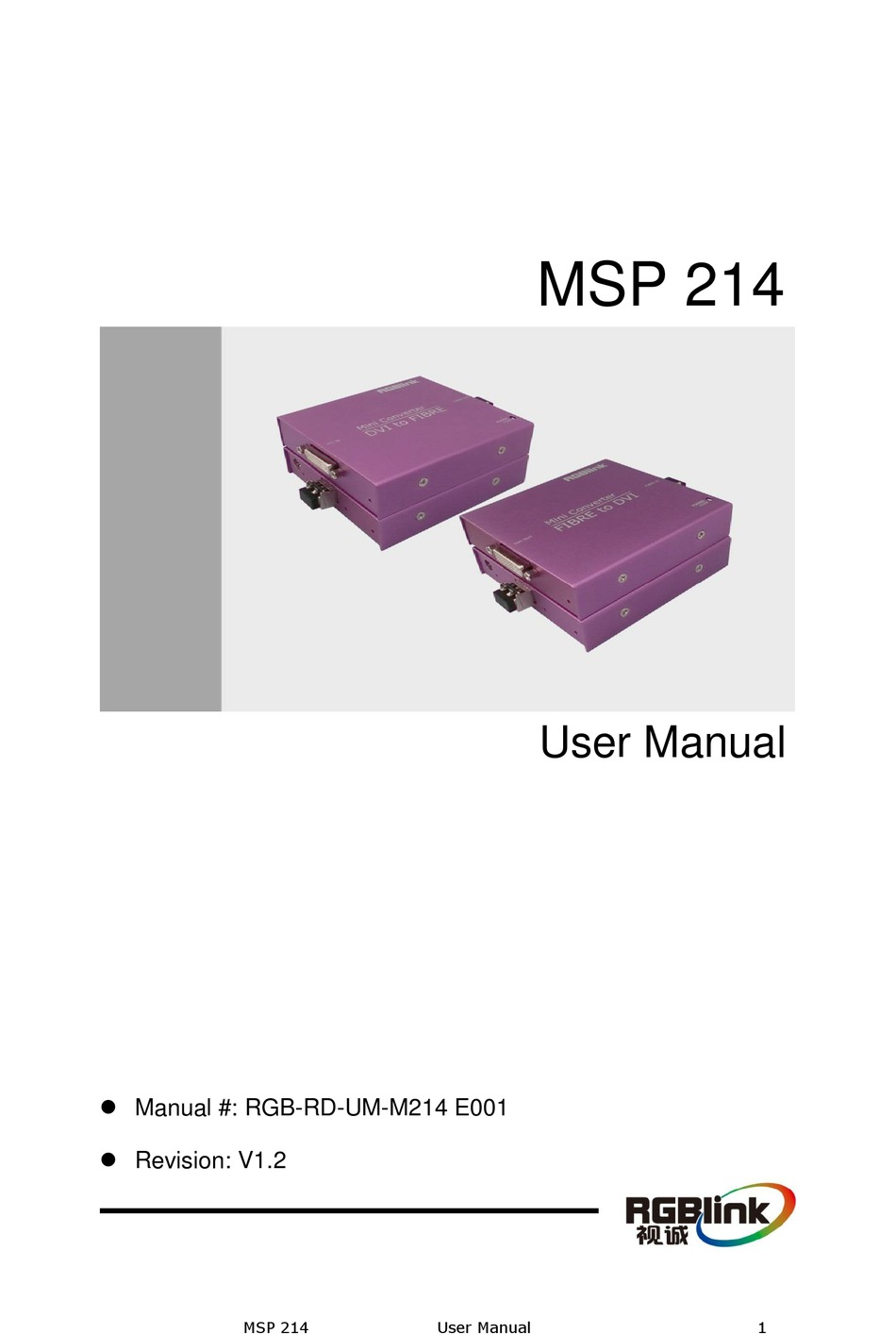

MSP 214 User Manual Manual #: RGB-RD-UM-M214 E001 Revision: V1.2 MSP 214 User Manual... -
Page 2: Federal Communications Commission
Technology Co.,LTD. No part can be copied, reproduced or translated without permission. Notice RGBlink provides this manual ―as is‖ without warranty of any kind, no matter expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. RGBlink may make improvements or changes to the products and the programs described in this publication at any time without notice. - Page 3 30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract.
- Page 4 Company Address Xiamen RGBlink Science & Technology Co., Ltd. S603~604 Weiye Building Torch Hi-Tech Headquarter: Industrial Development Zone Xiamen, Fujian Province, P.R.C Shenzhen office: Floor 11, A1 Building, Baiwang R&D Building, Shahe West Road, Xili Town, Nanshan District, Shenzhen, Guangdong Province, P.R.C Room 602, Building 7, CaiManJie, No.67,...
- Page 5 To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating characteristics. Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Dangerous Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. MSP 214 User Manual...
- Page 6 Highlights an essential operating procedure, condition or statement. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. MSP 214 User Manual...
- Page 7 The table below lists the changes to the DVI Extender User Manual. Format Time ECO# Description Principal 2010-11-15 0000 Release LISA 2013-08-07 0001 Change the integral style of product Vira and user manual. 2014-01-20 0002 1. Update Shenzhen office address. Vira 2. Update the fiber module description. MSP 214 User Manual...
-
Page 8: Table Of Contents
System Overview ................19 Application Questions ..............20 2. Hardware Orientation ..............21 In This Chapter ................. 21 MSP 214 DVI to Fiber Panel ............22 1: DVI Input ....................22 2: Signal Indicator ..................22 1: Power Interface ..................22 3: Fiber Output.................. - Page 9 2: Signal Indicator ..................24 3. Operation Manual ..............25 MSP 214 DVI to Fiber ..............25 MSP 214 Fiber to DVI ..............26 4. Common Questions and Solution ........... 27 In This Chapter ................. 27 Power indicator light is off or blinks ..........28 Signal indicator light is off or blinks ..........
-
Page 10: Brief Introduction
Brief Introduction This chapter is designed to introduce you to the MSP 214 User Manual. It covers: Chapter Structure Manual Usage Terms and Definitions System Overview Application Questions MSP 214 User Manual... -
Page 11: Chapter Structure
1. Brief Introduction Chapter Structure Chapter Structure The following chapters provide instructions for all aspects of MSP 214 operations: Chapter 1 Brief Introduction Chapter 2 Hardware Orientation Chapter 3 Operation Manual Chapter 4 Common Questions and Solution Appendix A Specification... -
Page 12: Manual Usage
Click any item to instantly jump to that section of the guide. You can also use the Index to jump to specific topics within a chapter. Each page number in the Index is a hyperlink. MSP 214 User Manual... -
Page 13: Terms And Definitions
In NTSC video, the most commonly used color bars are the SMPTE standard color bars. In PAL video, the most commonly used color bars are eight full field bars. In the MSP 214 User Manual... - Page 14 “HDMI” - High – Definition Multimedia Interface: An interface used primarily in consumer electronics for the transmission of uncompressed high definition video, up to 8 channels of audio, and MSP 214 User Manual...
- Page 15 VCR, or computer. Other forms of PIP displays include Picture-by-Picture (PBP) and Picture-with-Picture (PWP), which are commonly used with 16:9 aspect display devices. PBP and PWP image formats require a separate scaler for each video window. MSP 214 User Manual...
- Page 16 “Seamless Switching”: A feature found on many video switchers. This feature causes the switcher to wait until the vertical interval to switch. This avoids a glitch (temporary scrambling) which normally is seen when switching between sources. MSP 214 User Manual...
- Page 17 “VGA”: Video Graphics Array. Introduced by IBM in 1987, VGA is an analog signal with TTL level separate horizontal and vertical sync. The video outputs to a 15-pin HD connector and has a horizontal scan MSP 214 User Manual...
- Page 18 640×480 with a color palette of 16 bits and 256,000 colors. “YCrCb”: Used to describe the color space for interlaced component video. “YPbPr”: Used to describe the color space for progressive-scan (non-interlaced) component video. MSP 214 User Manual...
-
Page 19: System Overview
MSP 214 DVI to Fiber is the transmitter, and MSP 214 Fiber to DVI is the receiver, the two devices are used together, it can be realized the long distance transmission of DVI signal by MSP 214 DVI to Fiber with fiber optical cable to MSP 214 Fiber to DVI. -
Page 20: Application Questions
1. Brief Introduction Application Questions Application Questions RGBlink offers solutions to demand technical problems. Any application questions, or required further information, please contact with our Customer Support Engineers. Refer to Appendix B for contact details. MSP 214 User Manual... -
Page 21: Hardware Orientation
Hardware Orientation In This Chapter This chapter provides detailed information about the MSP 214 panel. The following topics are discussed: MSP 214 DVI to Fiber Panel MSP 214 Fiber to DVI Panel MSP 214 User Manual... -
Page 22: Msp 214 Dvi To Fiber Panel
MSP 214 DVI to Fiber panel: 1: DVI Input DVI input interface: Input the video signal from computer, DVI signal generator. Connect to the same DVI interface on MSP 214. （ This Connection does not support hot-plugging） Note DVI is compatible with HDMI. -
Page 23: 2.4: Indicator
2. Hardware Orientation MSP 214 DVI to Fiber Panel 2.4: Indicator Power indicator 2 lights when device has power supply. LED indicator 4 is off when connect fiber cable and the device is in normal operation. MSP 214 User Manual... -
Page 24: Msp 214 Fiber To Dvi Panel
2. Hardware Orientation MSP 214 Fiber to DVI Panel MSP 214 Fiber to DVI Panel The figure below illustrates the professional interface and control signals of MSP 214 Fiber to DVI panel: 1: Power Interface The device uses the standard 12V/3A power supply. -
Page 25: Operation Manual
MSP 214 DVI to Fiber transmitter is connected to computer, media player or HD camera, etc. User can connect the DVI interface on MSP 214 DVI to Fiber panel to PC with DVI cable, then connect the computer or media player, and MSP 214 DVI to Fiber transmitter to power supply. -
Page 26: Msp 214 Fiber To Dvi
MSP 214 Fiber to DVI receiver is connected to television (monitor) or LED screen which has DVI interface. Connect the fiber interface to the other fiber interface on MSP 214 DVI to Fiber transmitter with fiber cable, and then connect the DVI interface on MSP 214 Fiber to DVI panel to display device. -
Page 27: Common Questions And Solution
This chapter provides the common questions and solution for the DVI Extender. The following topics are provided: Power indicator light is off or blinks Signal indicator light is off or blinks 12V power interface poor contact MSP 214 User Manual... -
Page 28: Power Indicator Light Is Off Or Blinks
2. Check whether any problem with adapter head, replace it if there is any problem. 3. Check the power connector is loose, if so, please send to processional personnel for repair. MSP 214 User Manual... -
Page 29: Specification
10 Gigabit single-mode 10 km optical fiber module Wavelength of Light 1310nm Transmission Transmission Rate 10G bps Transmission 10km Distance Transmission Single mode twin-core Hot Plug Support 10 Gigabit multimode 300m optical fiber module Wavelength of Light 1270nm Transmission MSP 214 User Manual... - Page 30 Transmission Rate 10G bps Transmission 300km Distance Transmission Multimode twin-core Hot Plug Support Extras Power Supply 12V DC/3A Working 0℃~70℃ Environment Stored Environment 10%~90% Dimensions 98mmX92mmX22mm Product Warranty 3-year parts and labor warranty MSP 214 User Manual...
-
Page 31: Contact Information
3-year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
