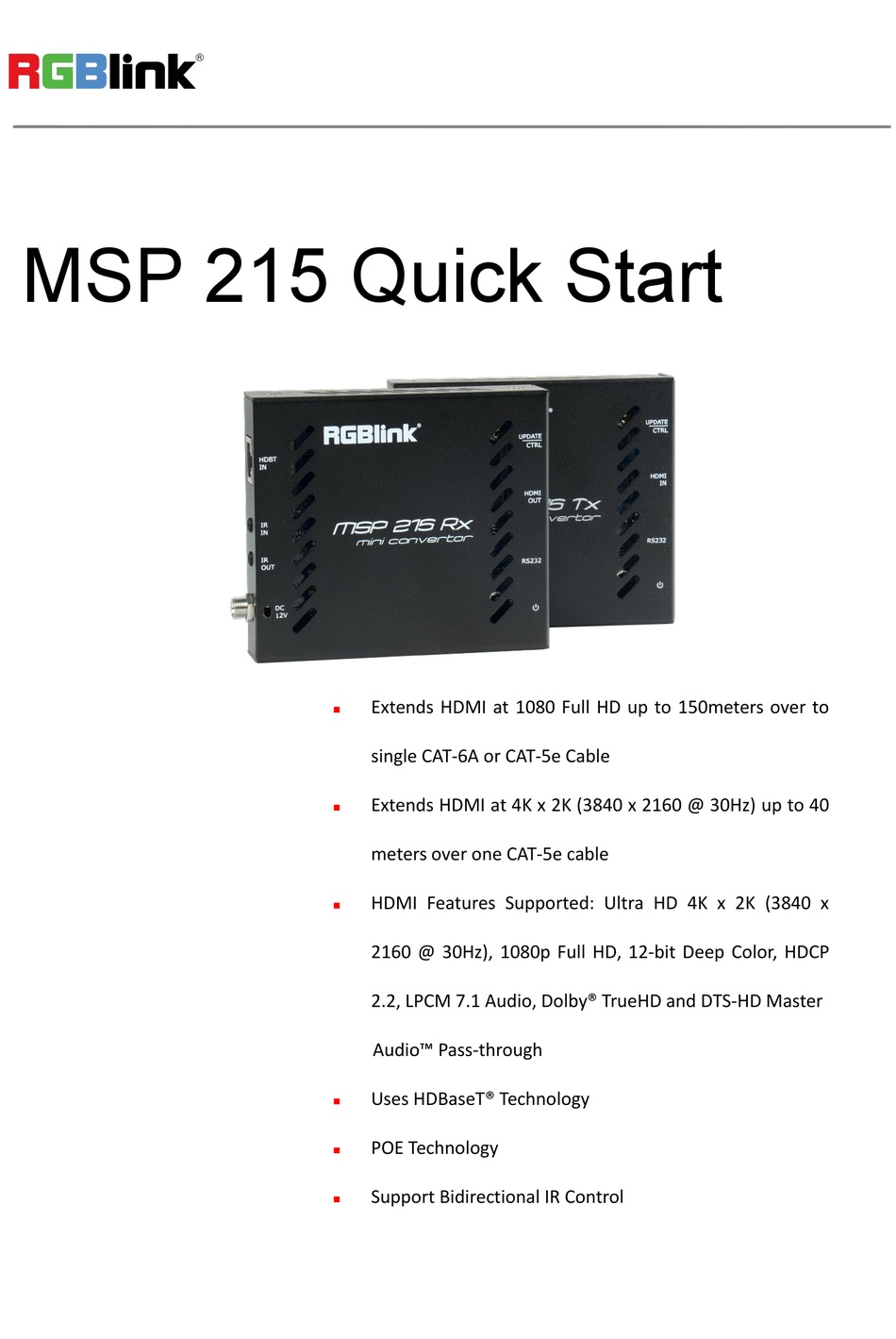

MSP 215 Quick Start
Extends HDMI at 1080 Full HD up to 150meters over to
single CAT-6A or CAT-5e Cable
Extends HDMI at 4K x 2K (3840 x 2160 @ 30Hz) up to 40
meters over one CAT-5e cable
HDMI Features Supported: Ultra HD 4K x 2K (3840 x
2160 @ 30Hz), 1080p Full HD, 12-bit Deep Color, HDCP
2.2, LPCM 7.1 Audio, Dolby® TrueHD and DTS-HD Master
Audio™ Pass-through
Uses HDBaseT® Technology
POE Technology
Support Bidirectional IR Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP 215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RGBlink MSP 215

  • Page 1 MSP 215 Quick Start Extends HDMI at 1080 Full HD up to 150meters over to  single CAT-6A or CAT-5e Cable Extends HDMI at 4K x 2K (3840 x 2160 @ 30Hz) up to 40  meters over one CAT-5e cable HDMI Features Supported: Ultra HD 4K x 2K (3840 x ...
  • Page 2: Table Of Contents

    CONTENT Product Introduction............................. 2 Packing Configuration............................3 Hardware Orientation............................4 MSP 215 HDMI Extender TX Panel......................4 MSP 215 HDMI Extender RX Panel......................6 Operation Manual..............................8 MSP 215 HDMI Extender TX......................... 8 Function Block Diagram..........................8 MSP 215 HDMI Extender RX.........................8 Function Block Diagram..........................8 Operating Principle............................
  • Page 3: Product Introduction

    Product Introduction MSP 215 Extender for HDMI over one CAT5 / CAT6 consists of a Sender (MSP 215 Tx) and a Receiver (MSP 215 Rx) unit, MSP 215 supports resolution up to 4K x 2K (3840 x 2160 @30Hz) and 1080p Full HD, as well as the pass-through of HDCP and High Bit Rate (HBR) lossless audio formats such as Dolby®...
  • Page 4: Packing Configuration

    Packing Configuration Certification Power Cord Address:S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C Tel:4008 592 315 Fax:+86 592 5788216 Email: support@rgblink.com http://www.rgblink.com 3 / 11...
  • Page 5: Hardware Orientation

    Hardware Orientation MSP 215 HDMI Extender TX Panel INTERFACE INTERFACE Power Indicator HDMI Input Interface HDMI-A Port RS232 CTRL/UPDATE Address:S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C Tel:4008 592 315 Fax:+86 592 5788216 Email: support@rgblink.com http://www.rgblink.com 4 / 11...
  • Page 6 INTERFACE INTERFACE HDBaseT Output RJ45 Port IR OUT IR IN CTRL/UPDATE Address:S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C Tel:4008 592 315 Fax:+86 592 5788216 Email: support@rgblink.com http://www.rgblink.com 5 / 11...
  • Page 7: Msp 215 Hdmi Extender Rx Panel

    MSP 215 HDMI Extender RX Panel INTERFACE INTERFACE Power Indicator HDMI Output Interface HDMI-A Port RS232 CTRL/UPDATE Address:S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C Tel:4008 592 315 Fax:+86 592 5788216 Email: support@rgblink.com http://www.rgblink.com 6 / 11...
  • Page 8 INTERFACE INTERFACE HDBaseT Input RJ45 Port IR OUT IR IN CTRL/UPDATE Address:S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C Tel:4008 592 315 Fax:+86 592 5788216 Email: support@rgblink.com http://www.rgblink.com 7 / 11...
  • Page 9: Operation Manual

    Operation Manual MSP 215 HDMI Extender TX Function Block Diagram MSP 215 HDMI Extender RX Function Block Diagram Address:S601 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian P.R.C Tel:4008 592 315 Fax:+86 592 5788216 Email: support@rgblink.com http://www.rgblink.com 8 / 11...
  • Page 10: Operating Principle

    Operating Principle Connect the output of signal sources such as computers to the "HDMI IN" of the MSP 215 HDMI extender TX with HDMI/HDMI-DVI cable;connect the "HDMI OUT" of the MSP 215 HDMI extender RX to display devices such as LED display/LCD/projector, or to video processers with HDMI/HDMI-DVI cable.
  • Page 11: Dial Switch Function

    CTRL/UPDATE Instructions Operations are as follows : The dial switch upwards is UPDATE, for updating the MSP 215 ; The dial switch downwards is CTRL, for connecting the MSP 215 and computer through the RS232 cable, and use software to control the MSP 215.
  • Page 12: Contact Information

    All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse (drop/crush), and/or other unusual damages.
