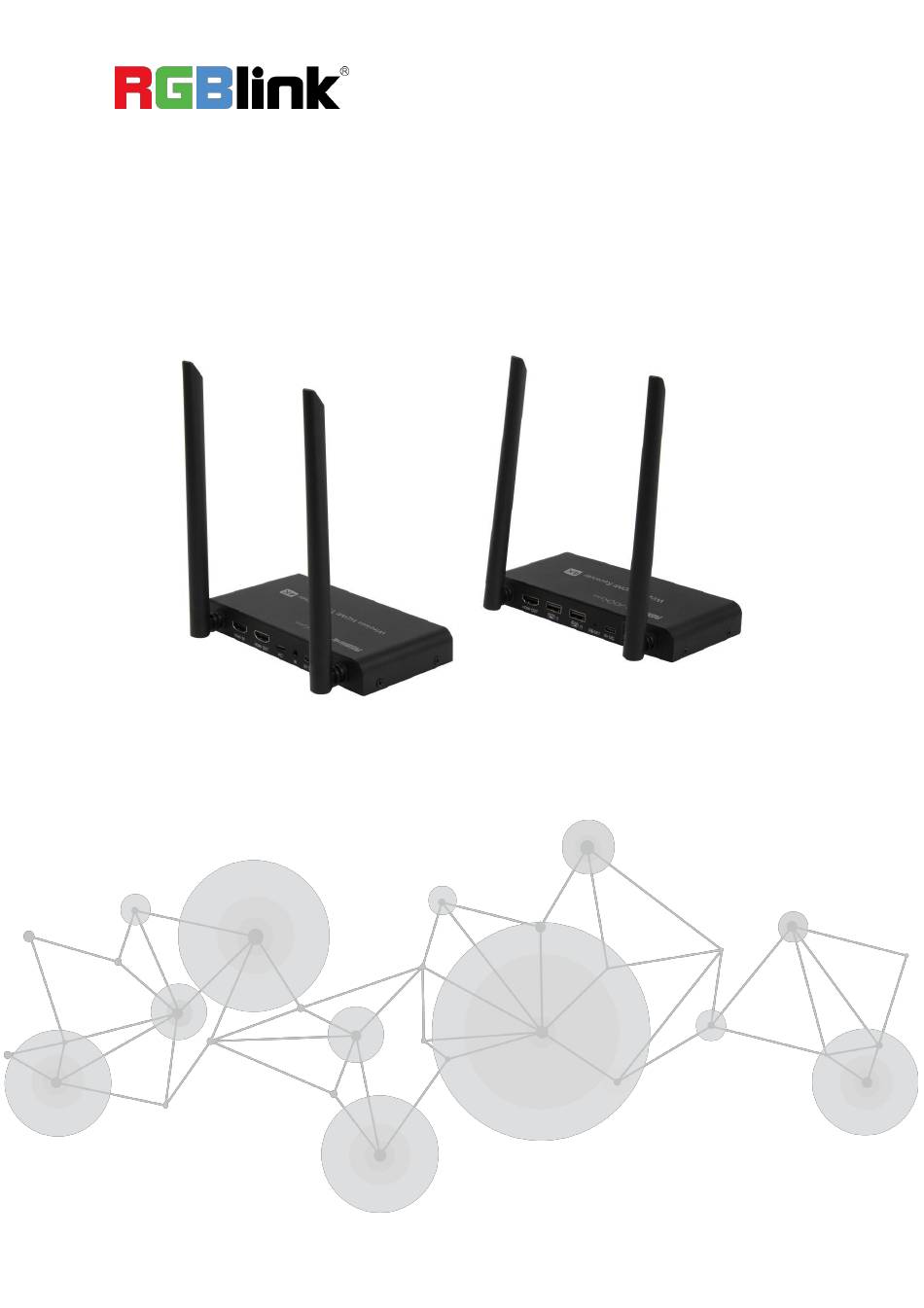

- Page 1 ASK plus p2p 4K Wireless HDMI Extender Quick Start...
- Page 2 Product Overview ............................2 Key Features ..............................2 Packing List ..............................3 Panel ................................. 3 Dimensions ..............................4 Use Your Product ..............................5 Pairing of TX and RX ............................ 5 Application Diagram ............................5 Specification ................................. 6 Warranty .................................7 ASK plus p2p Quick Start...
- Page 3 Each TX and RX works point to point in designated channel and up to 20 TX and 20 RX can work simultaneously without interfering each other. ASK plus p2p allows users to wireless stream the video content without latency, excellent for applications like education or digital signage.
- Page 4 （to be developed) USB- C Connect with 5V/2A power adapter ● Red: TX system is booting on ● Flashing Blue: Waiting for connection LED In di ca tor ● Static Blue: Connected ● Purple: No video in ASK plus p2p Quick Start...
- Page 5 Connect with 5V/2A power adapter IR Window IR extended function（to be developed） ● Flashing Blue: Waiting for connection LED Ind ica tor ● Static Blue: Connected Dimensions ASK plus p2p (TX/RX) ：154.0mm x 77.5mm x 21.0mm ASK plus p2p Quick Start...
- Page 6 2）Power on the receiver till it’s on the main menu； 3）Press the receiver’s reset button and hold for 10 seconds till the interface shows reset picture; 4）Wait around 30 seconds, the transmitter and receiver will pair automatically. Application Diagram ASK plus p2p Quick Start...
- Page 7 Consumption Environment Operating 0°C to +40°C (+32°F to + 104°F) Temperature Storage - 10°C to +60°C (+14°F to + 140°F) Temperature Operating 10% to 80% RH Humidity Physical 154*77.5*21mm 154*77.5*21mm Dimension Net Weight 330g 330g ASK plus p2p Quick Start...
- Page 8 All products are designed and tested to the highest quality standard and backed by 1 year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner.
