RGBlink MSP 214 Quick Start

MSP 214 –
For full installation, configuration, and operation details, please refer to
NOTE
the MSP 214 user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer
to set up and operate the MSP 214.

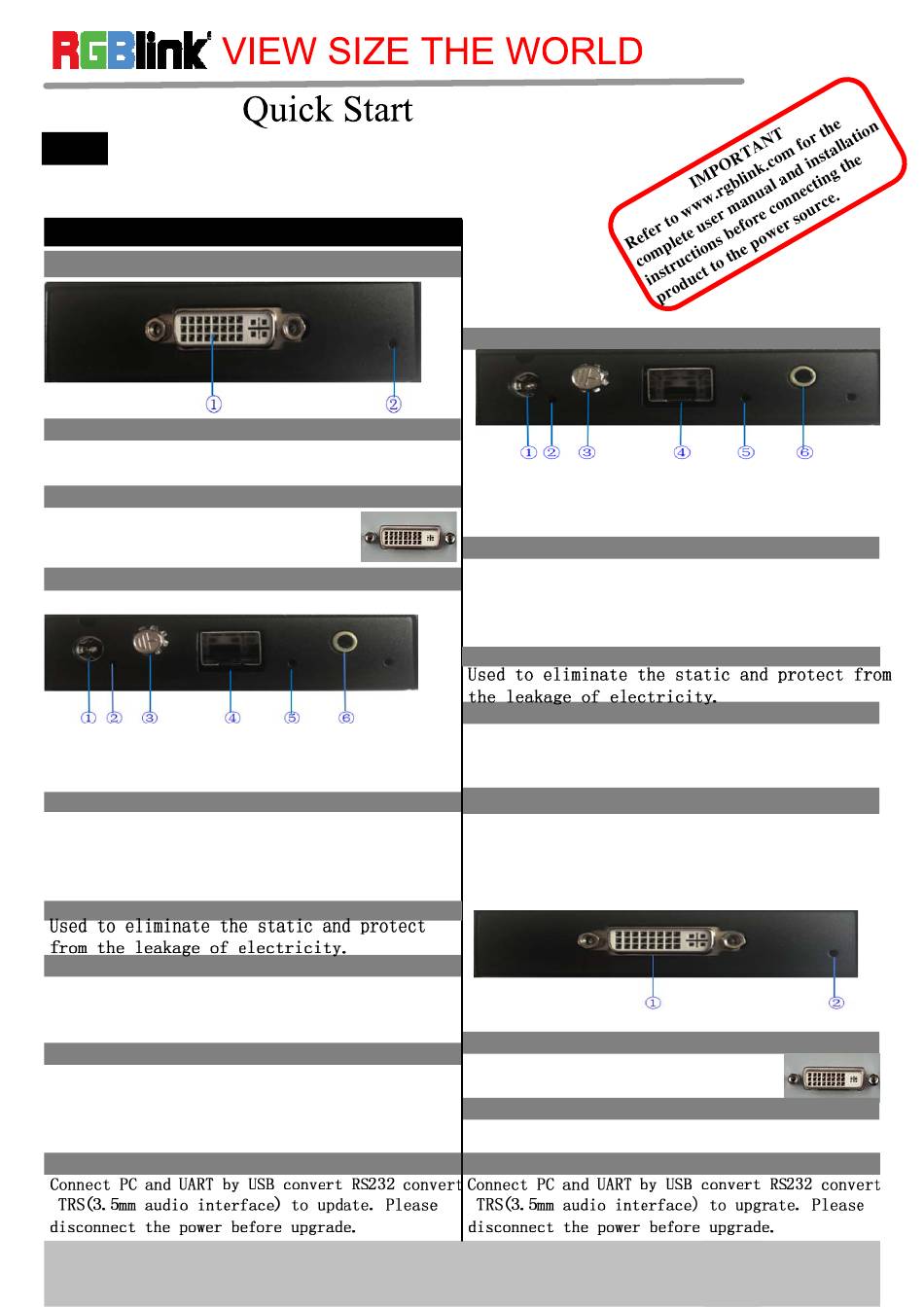

Interface

Msp 214 Dvi To Fiber Panel

Connections

①
DVI Input
DVI Input
Used to input DVI from DVI player or
computer with DVI connector.
Signal Indicator
When input DVI signal, the signal indicator lights.
①
Power
③
②
⑤
Indicator
UART
⑥
Power
Connect one end of the power adapter with the device,
the other end into a socket. Plug in, red power indictor
light means the device works normally.
The device uses the standard 12V/3A power supply.
Ground Connection
Fiber Output
Used to connect fiber cable, the device uses single
mode twin-core fiber or multimode twin-core fiber ,
LC interface.
Indicator
Power indicator 2 lights when device has power
supply.
LED indicator 5 is off when connect fiber cable and
the device is in normal operation.
UART
Address: S601-607, 504 Weiye Building Torch Hi-Tech Industrial Development Zone, Xiamen, Fujian
Province, P.R.C
Tel: 00865925771197
Email: sales@rgblink.com
②
Signal Indicator
Ground Connection
④
Fiber Output
Fax:00865925771202
http://www.rgblink.com
Msp 214 Fiber To Dvi Panel
①
Power
② ⑤
Indicator
⑥
UART
Power
Connect one end of the power adapter with the device,
the other end into a socket. Plug in, red power indictor
light means the device works normally.
The device uses the standard 12V/3A power supply.
Ground Connection
Fiber Input
Used to connect fiber cable, the device uses single
mode twin-core fiber or multimode twin-core fiber,
LC interface.
Indicator
Power indicator 2 lights when device has power
supply.
LED indicator 5 is off when connect fiber cable and
the device is in normal operation.
①
DVI Output
DVI Output
Connect to the monitor or LED control
system which has DVI interface.
Signal Indicator
When input DVI signal, the signal indicator lights.
UART
③
Ground Connection
④
Fiber Input
②
Signal Indicator
MSP 214 Quick Start
Rev 1.3
Page 1 of 2
