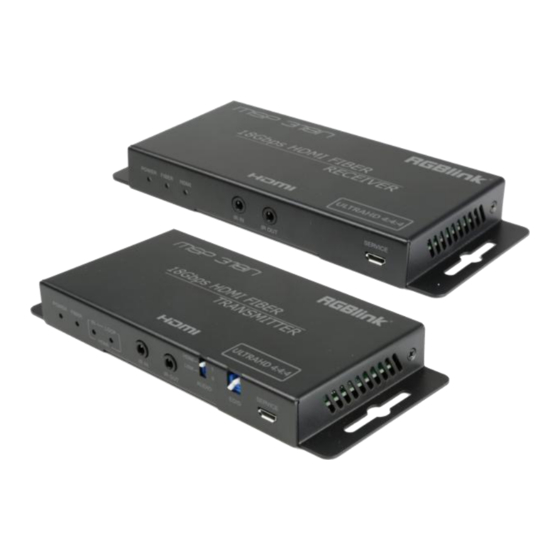

Hdmi 2.0 fiber extender set

Advertisement

Quick Links

MSP 318N
HDMI 2.0 Fiber Extender Set
User Manual
Article No: RGB-RD-UM-MSP 318N C000
Article No: V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP 318N and is the answer not in the manual?

Questions and answers

Summary of Contents for RGBlink MSP 318N

  • Page 1 MSP 318N HDMI 2.0 Fiber Extender Set User Manual Article No: RGB-RD-UM-MSP 318N C000 Article No: V1.0...
  • Page 2: Table Of Contents

    Chapter 2 Use Your Product......................11 2.1 Application Example......................11 Chapter 3 Order Codes........................12 3.1 Product Codes........................12 Chapter 4 Support ........................... 13 4.1 Contact Us........................... 13 Chapter 5 Appendix........................... 14 5.1 Specification........................14 5.2 Terms & Definitions......................16 5.3 Revision History........................22 MSP 318N User Manual...
  • Page 3: Declarations

    30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract.
  • Page 4: Operators Safety Summary

    Installation Safety Summary Safety Precautions For all MSP 318N installation procedures, please observe the following important safety and handling rules to avoid damage to yourself and the equipment. To protect users from electric shock, ensure that the chassis connects to earth via the ground wire provided in the AC power Cord.
  • Page 5 The AC Socket-outlet should be installed near the equipment and be easily accessible. Unpacking and Inspection Before opening MSP 318N shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip.
  • Page 6: Chapter 1 Your Product

    Chapter 1 Your Product 1.1 In the Box Item Qty. IR Blaster Cable (1.5 meters) IR Receiver Cable (1.5 meters) 5V/1A Power Adapter 3-pin 3.81mm Phoenix Connector User Manual Note: Power Adapter supplied as standard according to destination market. MSP 318N User Manual...
  • Page 7: Product Overview

    ● Support 3D,HDR format ● Support Bi-directional IR control,RS 232 pass through ● EDID management by dip switch ● Transmitter supports loop output and audio embedding ● Receiver supports audio extracting MSP 318N System Connection Diagram MSP 318N User Manual...
  • Page 8: Transmitter Panel

    HDMI signal input port, connect to HDMI source device such as DVD or PC with an HDMI HDMI IN cable. Audio signal input port, connect to audio source device such as MP3. LINE IN RS-232signal pass-through port for transmitting RS-232 RS-232 command signals between the Transmitter and Receiver. MSP 318N User Manual...
  • Page 9: Receiver Panel

    Audio signal extracting output port (extract the HDMI OUT audio signal), connect to 10 AUDIO OUT audio output device such as amplifier or speaker. RS-232 signal pass-through port for transmitting RS-232 command signals between RS-232 the Transmitter and Receiver. MSP 318N User Manual...
  • Page 10: Demension

    1.2.3 Demension Following is the dimension of MSP 318N for your reference: 160mm×68mm×18mm (TX/RX) MSP 318N User Manual...
  • Page 11: Chapter 2 Use Your Product

    Chapter 2 Use Your Product 2.1 Application Example 1. Use HDMI cable to connect HDMI port of bluray player or DVD to“HDMI IN”on MSP 318N TX (transmitter) and connect “HDMI Out” on MSP 318N RX (receiver) to HDMI port of projector by HDMI cable.
  • Page 12: Chapter 3 Order Codes

    Chapter 3 Order Codes 3.1 Product Codes 611-0318-01-0 MSP 318N (TX/RX Set) 950-0007-00-0 SFP, Single Mode, 2km Max 950-0004-00-0 SFP, Single Mode, 10km Max 950-0002-00-0 SFP, Multi Mode, 300m Max MSP 318N User Manual...
  • Page 13: Chapter 4 Support

    Chapter 4 Support 4.1 Contact Us MSP 318N User Manual...
  • Page 14: Chapter 5 Appendix

    SMPTE 480i | 576i | 720p@59.94/60 | 1080i@59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 VESA 640×480@60/75 | 800×600@60/75 | 1024×768@60/75 | 1280× 800@60 | 1280×1024@60/75 | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1440×1050@60 | 1680×1050@60 | 2048× 1152@60 | 3840×2160@30/60 MSP 318N User Manual...
  • Page 15 RS 232Baud Rate 4800~115200bps Power Input Voltage DC 5V/1A DC 5V/1A Constant Power 3.85W 2.7W Environment Working Temperature 0 ~40℃ Storage Temperature -20~60℃ Humidity 20 - 90% Physical Weight 0.28 kg (TX) 0.278kg (RX) Dimension 160mm×68mm×18mm (TX/RX) MSP 318N User Manual...
  • Page 16: Terms & Definitions

    ●U-SDI:Technology for transmitting large-volume 8K signals over a single cable. a signal interface called the ultra high definition signal/data interface (U-SDI) for transmitting 4K and 8K signals using a single optical cable. The interface was standardized as the SMPTE ST 2036-4. MSP 318N User Manual...
  • Page 17 ●Single-mode Fiber: Fiber that support a single mode are called single-mode fibers. Single-mode fibers are used for most communication links longer than 1,000 meters (3,300 ft). MSP 318N User Manual...
  • Page 18 ● USB 3.2: Super Speed USB with 3 varieties of 3.2 Gen 1(original name USB 3.0), 3.2Gen 2(original name USB 3.1), 3.2 Gen 2x2 (original name USB 3.2) with speed up to 5Gbps,10Gbps,20Gbps respectively. USB version and connectors figure: Type Type B Mini Mini Micro- Micro Type C USB 2.0 MSP 318N User Manual...
  • Page 19 IP based networks. The more recent Dante AV specification includes support for digital video. ●NDI: Network Device interface (NDI) is a software standard developed by NewTek to enable video-compatible products to communicate, deliver, and receive broadcast quality video in a high quality, MSP 318N User Manual...
  • Page 20 ●OSC: The principle of Open Sound Control (OSC) protocol is for networking sound synthesizers, computers, and multimedia devices for musical performance or show control. As with XML and JSON, the OSC protocol allows sharing data. OSC is transported via UDP packets between devices connected MSP 318N User Manual...
  • Page 21 ●Seamless Switching: A feature found on many video switchers. This feature causes the switcher to wait until the vertical interval to switch. This avoids a glitch (temporary scrambling) which often is seen when switching between sources. MSP 318N User Manual...
  • Page 22: Revision History
